Ford E-350 Super Duty A/C Clutch Cycle Switch Guide (1999-2019)
If your Ford E-350's A/C is blowing warm or not working at all, the A/C clutch cycle switch could be the culprit.
- A faulty A/C clutch cycle switch is a common cause for warm air or intermittent cooling in a Ford E-350.
- Before replacing the switch, verify the A/C system has the correct refrigerant charge, as low pressure will also prevent the compressor from running.
- This is an easy and inexpensive DIY repair; the system does not need to be evacuated to replace the switch.
- Aftermarket brands like Four Seasons and Global Parts offer affordable and reliable replacements for this part.
Symptoms of a Failing A/C Clutch Cycle Switch
When the A/C clutch cycle switch on your E-350 starts to fail, it can cause several noticeable problems. Because this switch controls when the A/C compressor runs, a bad switch often leads to poor cooling performance.
🎬 Watch this video to identify common pressure switch failure signs.- A/C Blows Warm Air: The most common symptom is warm air coming from the vents when the A/C is on. If the switch fails completely, it won't signal the compressor to turn on, and the refrigerant won't circulate to cool the air.
- Intermittent Cooling: You might notice the A/C works sometimes but not others. A faulty switch can send erratic signals, causing the compressor to cycle on and off too frequently or not at all. This can feel like the A/C is cutting in and out while you drive.
- Compressor Clutch Doesn't Engage: If you look at the A/C compressor while the engine is running and the A/C is on, you should see the outer part of the pulley (the clutch) engage and spin. If it never engages, the cycle switch could be the reason, especially if you've confirmed the refrigerant level is correct.
- Clicking Noises: A rapid clicking sound from the engine bay could be the compressor clutch engaging and disengaging too often, a sign of a faulty switch.
Check the Simple Things First
Before replacing the switch, make sure your A/C system has the correct amount of refrigerant. Low refrigerant is a very common cause for the compressor not engaging, as the switch is designed to prevent operation in a low-pressure state to protect the compressor. Also, check related fuses and relays.

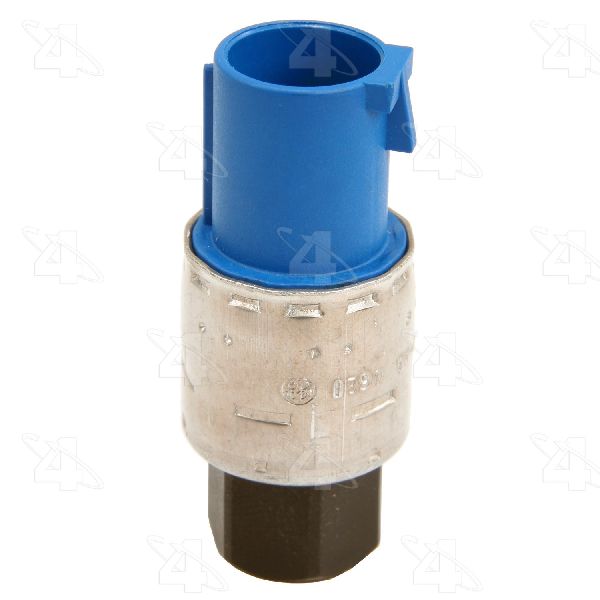

Choosing an Aftermarket A/C Clutch Cycle Switch
For the 1999-2019 Ford E-350 Super Duty, you don't need to buy an expensive OEM part from the dealer. Aftermarket brands offer reliable quality for this component at a much lower price. The two main brands available are Four Seasons and Global Parts (GPD).
- Four Seasons: Generally considered a reliable aftermarket brand for A/C components. They are a major supplier, and their parts are built to be durable replacements.
- Global Parts (GPD): Another OE-style replacement brand. Their switches are tested for voltage and durability. Some owner feedback suggests potential for shorter lifespan on components like compressor clutches compared to other brands, but for a simple switch, they are a cost-effective option.
Both brands provide a direct-fit replacement that functions like the original. Given the low cost of the part, either brand is a suitable choice for a DIY repair.
Pro Tip: Easy Replacement
The A/C clutch cycle switch on most Ford E-350 models is mounted on the accumulator (a metal can in the A/C line). It connects via a simple electrical plug. A great feature is that it can be replaced without evacuating the A/C system, as there is a Schrader valve underneath it, similar to a tire valve, that seals the system when the switch is removed.

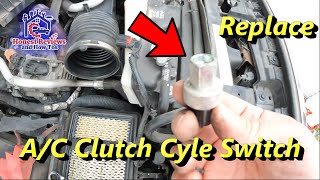

🎬 See how to easily replace the switch on a Ford truck.Cost of Replacing the A/C Clutch Cycle Switch
This is an inexpensive repair, whether you do it yourself or take it to a shop. The part itself is very affordable.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $14.90 - $33.21 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Do I need to drain the refrigerant to replace this switch?
No. The switch is mounted on a service port with a Schrader valve. When you unscrew the old switch, the valve will prevent refrigerant from escaping. You can then screw the new one on.
Where is the A/C clutch cycle switch located on my E-350?
It is typically located on the A/C accumulator (also called the receiver/drier), which is a metal canister on the low-pressure side of the A/C system. Follow the larger diameter A/C line in the engine bay, and you should find it. It will have an electrical connector attached.
Could a bad clutch air gap cause the same symptoms?
Yes. Over time, the air gap in the A/C compressor clutch can become too wide, preventing it from engaging even when it gets power. If a new switch doesn't solve the problem, checking and adjusting the clutch air gap is a good next step before replacing the entire compressor.
🎬 Learn how to check and adjust your compressor's air gap.Are there any recalls for this part on the E-350?
No, there are no specific recalls for the A/C clutch cycle switch. There was an NHTSA investigation into melting HVAC control switches on 1997-2008 E-Series vans, but it was closed without a recall being ordered. This issue is separate from the clutch cycle switch itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: F3AZ19E561A YH552
System Mounted Cycling Pressure Switch, Low-Pressure Side
