Volvo S40 Horn Replacement Guide for 2000-2002 Models
If your horn sounds weak or doesn't work at all, this guide will help you find the right new aftermarket part for your S40.
- A weak, high-pitched sound is the most common sign of failure, meaning one of the two horns has stopped working.
- Always check the fuse and relay before ordering a new horn, as this is a simple and cheap fix.
- Replacement requires removing the front bumper cover to access the horns behind the grille.
- You must identify if your failed horn is the high-note or low-note to ensure you buy the correct part.
Is Your Volvo S40 Horn Failing?
A problem with your car horn is usually easy to spot. The most common issue on the Volvo S40 is not complete failure, but a change in the sound. Because your car has two horns working together, if one fails, the other will still work. This is the most frequent problem owners experience.
Before You Buy: Check the Fuse and Relay First!
Before spending money on a new horn, always check the simple things first. A blown fuse or a bad relay are common reasons for a horn not working at all. These are inexpensive and easy to replace. Check your owner's manual to find the location of the horn fuse and relay in the fuse box. If you replace a fuse and it blows again right away, you likely have a short circuit that needs to be diagnosed.
🎬 Watch: How to diagnose a horn that isn't workingSymptoms of a Bad Horn on a 2000-2002 Volvo S40
- Weak or High-Pitched Sound: This is the most common symptom. It almost always means one of the two horns has failed, leaving the other to work alone. The result is a sound that is quiet, thin, or sounds like a scooter horn. 🎬 See why your horn sounds weak and how to fix it
- No Sound at All: If you press the horn and hear nothing, the cause could be a blown fuse, a bad relay, a wiring problem, or both horns have failed (which is rare).
- Works Intermittently: If the horn only works sometimes, it could be a sign of a failing horn switch in the steering wheel (often part of the clock spring), a loose wire, or a corroded electrical connection at the horn itself.
Choosing the Right Aftermarket Horn
For a part like a horn, an aftermarket replacement is a smart choice that offers good value. Your S40 has two separate horns, a high-note and a low-note. It is important to figure out which one has failed so you can order the correct part. You can do this by listening closely to the front of the car while a friend presses the horn to see which side is silent.
Brand Quality Tiers
- Standard Ignition: This brand is known for making quality direct-fit OE replacement parts. Choosing Standard Ignition means you are getting a part designed to fit and function like the original, with a focus on durability. Reviews are generally positive, making it a reliable choice for a long-lasting repair.
- Replacement: This is a budget-friendly option. A "Replacement" branded horn will get the job done and restore your horn's function. However, the sound might not be a perfect match to the factory tone, and it may not have the same robust construction as a more premium brand.
Pro Tip: The horns are located in an exposed area behind the grille and are subject to corrosion. When you replace your horn, it's a good idea to apply a small amount of dielectric grease to the electrical connector to protect it from moisture and prevent future problems.
Cost of Replacing a Volvo S40 Horn (2000-2002)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Horn | $36 - $78 |
| Shop Labor | $110 - $200 |
Frequently Asked Questions (FAQ)
Where are the horns located on my 2000-2002 S40?
The two horns are mounted directly behind the front grille, in front of the radiator. To access them for replacement, a mechanic will need to remove the front bumper cover.
Do I have to replace both horns at the same time?
No, you only need to replace the horn that has failed. However, be aware that an aftermarket horn might have a slightly different tone than the remaining original horn. For a perfectly matched sound, some owners choose to replace both at the same time.
Is it hard to replace the horn myself?

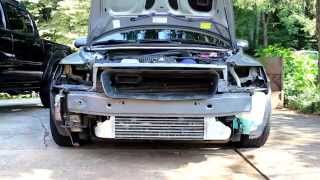

Replacing the horn on this S40 is considered moderately difficult because it requires removing the front bumper cover. 🎬 Watch: Step-by-step guide to removing the front bumper cover This involves removing several screws and clips in the wheel wells and under the hood. While it is possible for a DIYer with the right tools, it can be time-consuming if you have never done it before.
My horn works, but only when I press a certain spot on the steering wheel. What's wrong?
This problem points to an issue with the horn switch or the clock spring inside the steering wheel, not the horn itself. A complaint was filed with the NHTSA for a 2002 S40 with this exact issue. This repair is more complex and involves working around the airbag, so it is best left to a professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30796376 30796375
System Type: Dual Horn (High-Note and Low-Note)
