2000-2003 Dodge Dakota Automatic Transmission Solenoid Replacement Guide
Experiencing harsh shifts or getting stuck in gear? Your transmission solenoid pack could be the culprit.
- Shifting problems like getting stuck in gear or harsh shifts are primary indicators of a failing solenoid in a 2000-2003 Dakota.
- Always scan for diagnostic trouble codes (like P0750 or P0753) before replacing parts, as other issues can cause similar symptoms.
- Replacing the solenoid is a DIY-possible job that requires draining the transmission fluid and removing the pan.
- While replacing the solenoid, it is highly recommended to also change the transmission filter and use fresh ATF+4 fluid.
Is Your Dakota's Transmission Acting Up?
If you own a 2000-2003 Dodge Dakota, you might eventually face issues with its automatic transmission. Problems like erratic shifting, getting stuck in gear, or a sudden check engine light can often point to a failing automatic transmission solenoid pack. This component is responsible for controlling gear changes, and when it fails, it can make your truck difficult or unsafe to drive.
Common Symptoms of a Bad Transmission Solenoid
A failing solenoid pack doesn't usually happen without warning. Look out for these common signs:
- Harsh or Delayed Shifting: The truck may slam into gear, or you might notice a long pause after you press the gas before it starts moving.
- Stuck in Gear (Limp Mode): The transmission may lock itself into a single gear, usually 2nd or 3rd, to prevent further damage. Restarting the truck might temporarily fix it. 🎬 Learn more about limp mode symptoms and how to reset it.

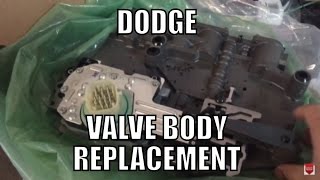

- Check Engine Light: A fault in the solenoid circuit will trigger a check engine light. Common codes include P0750, P0753, and P0760. 🎬 See how to replace the valve body to fix P0750 codes.
- Failure to Shift: In more severe cases, the transmission may refuse to shift out of first gear or won't engage any gear from park.
- Transmission Slipping: You may notice the engine revving higher than usual without an increase in speed, as if the gear isn't fully engaged.
Don't Mistake Other Issues for a Bad Solenoid
Shifting problems on these Dakotas aren't always caused by the solenoid pack. Technical Service Bulletins (TSBs) were issued for issues like harsh shifts due to a sticking pressure sensor (TSB #02024) and getting stuck in 2nd gear, which required a computer update (TSB #1800103A). Always perform a proper diagnosis or have a shop scan for codes before buying parts.
Choosing a New Aftermarket Solenoid

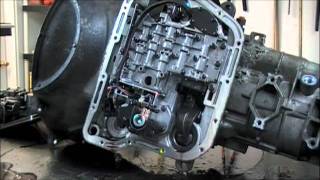

When replacing the transmission solenoid, you have a few choices. Since new OEM parts from the dealer can be expensive, a new aftermarket part is a common, budget-friendly solution. The key is to ensure the part you're buying is compatible with your specific transmission model (e.g., 45RFE, 46RE). 🎬 Watch this step-by-step governor pressure solenoid and sensor replacement guide. A common mistake is ordering a solenoid for the wrong transmission type. While aftermarket brands offer significant savings, remember that the issue could also be related to wiring or even the main computer (PCM), so a new solenoid might not always be the final fix.
Pro Tip: Service the Transmission at the Same Time
Since replacing the solenoid requires removing the transmission pan, it's the perfect time to also replace the transmission filter and fluid. Use only the specified ATF+4 fluid to ensure proper operation. This can help extend the life of your new solenoid and the transmission itself.
Cost of Replacing the Transmission Solenoid (2000-2003 Dodge Dakota)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid | $70 - $150 |
| New OEM Solenoid | $300 - $450+ |
| Shop Labor | $200 - $400 |
| Total (DIY) | $70 - $150 (Part Only) |
| Total (Shop) | $270 - $550+ |
Frequently Asked Questions
Where is the transmission solenoid located on a 2000-2003 Dodge Dakota?
The transmission solenoid pack is located inside the automatic transmission. You have to drain the fluid and remove the transmission oil pan to access it. It is bolted to the valve body.
Can I replace the transmission solenoid myself?
Yes, this is a feasible DIY job for someone with moderate mechanical skills. It involves draining fluid, removing the pan, and carefully swapping the part. However, it can be messy, and you must ensure you torque the pan bolts correctly to prevent leaks. If you are not comfortable working under your truck, it's best to leave it to a professional.
Will a new solenoid fix my transmission from being stuck in limp mode?
If the limp mode is caused by an electrical fault or failure within the solenoid pack (e.g., code P0753), then a new solenoid will likely fix the problem. However, limp mode can also be triggered by other sensor failures, wiring issues, or a problem with the transmission control module, so a full diagnosis is recommended.
Is there a recall on the transmission solenoid for the 2000-2003 Dakota?
No, there are no specific recalls for the transmission solenoid itself. There was a recall for 2000 models (NHTSA 00V-197) where transmission fluid could leak onto the exhaust, but this was related to the fill tube, not the solenoid.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52119435AA
Fits automatic transmissions used in 2000-2003 Dodge Dakota models, including the 42RE, 46RE, and 45RFE. The part is a solenoid block assembly that mounts to the valve body.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
