BMW E39 540i Ignition Coil Guide for 2000-2004 Models
A complete guide to fixing misfires and choosing the right ignition coils for your V8-powered E39.
- The 2000-2004 BMW 535i was not sold in the US; this guide applies to the equivalent V8 model, the 540i.
- Replacing all eight coils at once with a quality OEM brand like Bosch, Bremi, or Eldor is the best practice.
- This is a very simple DIY repair that can be completed in under an hour with basic tools, saving significant labor costs.
- If you find oil in the spark plug wells, you must replace the valve cover gaskets to prevent damage to the new coils.
Signs of a Bad Ignition Coil
When an ignition coil starts to fail on your 540i, the signs are usually obvious. Because each cylinder has its own coil, a single failure can disrupt the engine's smooth operation. You will likely get a check engine light with codes pointing to a specific cylinder's misfire.

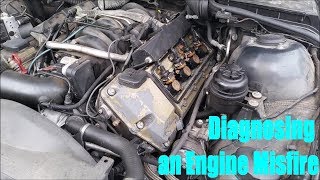

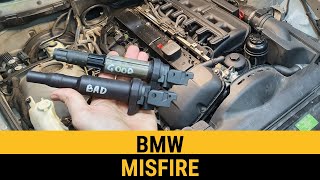

🎬 Watch: How to diagnose misfire codes and find faulty coils.Don't Ignore a Misfire
Driving with a misfiring coil can cause unburnt fuel to enter the exhaust system. This can quickly damage your expensive catalytic converters, turning a simple repair into a major expense.
Choosing the Right Aftermarket Coils
When shopping for new ignition coils, you'll find several options. For the E39 540i, sticking with proven brands is the best way to ensure reliability and performance.
Tier 1: OEM-Quality Brands
These brands are original equipment manufacturers for BMW and other German automakers. They offer the best fit and longest life, often identical to the part you'd buy from a BMW dealer, just in a different box.
- Bosch: Bosch is a primary original supplier for BMW ignition coils. They are a trusted choice for reliability and performance that matches the original parts. However, some recent owner reports mention a decline in quality, so it's wise to buy from a reputable seller.
- Bremi: Bremi is another OEM supplier for BMW and a popular choice among enthusiasts. Like Bosch, they are known for their quality, though some owners note that newer Bremi coils may not have the same longevity as older German-made ones.
- Eldor: Eldor is another trusted OEM supplier for BMW ignition systems and is a reliable choice.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and price. They may not be original suppliers but have a strong reputation in the aftermarket.
- Delphi: A well-known manufacturer of automotive parts, Delphi offers reliable ignition coils that are a solid alternative to OEM brands.
- NGK: While famous for spark plugs, NGK also produces high-quality ignition coils that are well-regarded by many BMW owners.
Tier 3: Budget & Performance Brands
This category includes budget-friendly options and parts marketed as 'performance' upgrades.
- Dinan: Known for performance tuning, Dinan offers ignition coils that claim slightly higher energy output. They can be a cost-effective option if you're replacing coils anyway, but their long-term reliability isn't as established as OEM brands.
- URO Parts, TRQ, Standard Motor Products (SMP): These are budget-focused brands. While the low price is tempting, their quality and lifespan can be inconsistent. They might be suitable for a quick fix but are not recommended for long-term reliability.
Pro Tip: Replace in Sets
It is highly recommended to replace all eight ignition coils at the same time. Coils are exposed to the same heat and wear, so if one has failed, others are likely to fail soon. Replacing them all at once ensures consistent performance and prevents you from having to do the same job again in a few months. Also, it's best to use the same brand for all coils.
Cost of Replacing Ignition Coils
| Part Type | Cost per Coil | Total for 8 Coils |
|---|---|---|
| New OEM (Dealer) | $90 - $140 | $720 - $1120 |
| New Aftermarket (OEM Quality - Bosch, Bremi) | $40 - $65 | $320 - $520 |
| New Aftermarket (Budget) | $25 - $40 | $200 - $320 |
| Shop Labor | $100 - $200 | |
Frequently Asked Questions
Is it hard to replace ignition coils on a 540i?
No, this is a very easy DIY job. The coils are located directly on top of the engine, under the plastic beauty covers. Each coil is held in by two 10mm nuts, and the electrical connector has a simple clip. Basic hand tools are all that's needed, and the job can be done in less than an hour.

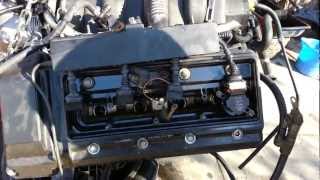

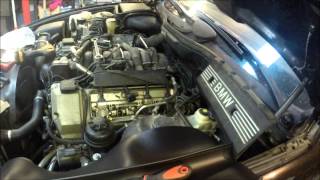

🎬 See this step-by-step walkthrough for replacing your coils and plugs.Should I replace spark plugs with the ignition coils?
Yes, it is an excellent idea to replace the spark plugs at the same time. You already have the coils removed, so the spark plugs are easily accessible. Worn spark plugs can strain new ignition coils, leading to premature failure.
How do I find out which coil is bad?
If you have a check engine light, a code reader will tell you which cylinder is misfiring (e.g., P0301 for cylinder 1, P0306 for cylinder 6). If you don't have a code reader, you can swap the suspected bad coil with a coil from a known good cylinder. If the misfire moves to the new cylinder, you've confirmed the coil is bad.
What if I see oil on the ignition coil boot?
Oil on the ignition coil boot means your valve cover gasket is leaking. This is a very common issue on the M62 engine. You must fix the oil leak by replacing the valve cover gaskets before replacing the coils, as the oil will damage the new coils and cause them to fail prematurely.

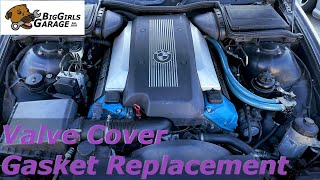

🎬 Watch: How to replace leaking valve cover gaskets on the M62.Were there any recalls for the ignition coils?
There have been no specific recalls for ignition coils on the 2000-2004 BMW 540i. Searches of the NHTSA database show recalls for this model related to airbags and other components, but not the ignition system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12137599219 12131748018 12139067830
This engine uses eight individual, pencil-style, coil-on-plug ignition coils. Each coil is a direct replacement and includes the rubber boot that connects to the spark plug.
