Chrysler Voyager A/C Compressor Replacement Guide (2000-2004)
If your Voyager's A/C is blowing warm, the compressor is the most likely cause of the problem.
- You MUST replace the accumulator/drier and expansion device when replacing the compressor to prevent immediate failure of the new part.
- A catastrophic compressor failure requires flushing the entire system to remove metal debris.
- For long-term reliability, choose an OEM-quality brand like Denso or Delphi.
- The job requires professional refrigerant evacuation and recharging; it is not a 100% DIY project.
Is Your Voyager's A/C Compressor Failing?
On the 2000-2004 Chrysler Voyager, A/C compressor failure is a common issue. The symptoms are usually easy to spot. Being aware of the early signs can help you avoid more expensive damage to the rest of the A/C system.
Common Symptoms of a Bad A/C Compressor:
- Grinding or Squealing Noises: A loud grinding or hissing sound from the engine bay when the A/C is turned on is a classic sign of failing compressor bearings. This can generate extreme heat and damage the serpentine belt.
- Warm Air From Vents: If the system is charged with refrigerant but the air is still warm, the compressor may not be pumping effectively. This can be due to internal wear or a faulty clutch.
- A/C Clutch Does Not Engage: The outer pulley of the compressor always spins with the engine belt, but the center part only spins when the A/C is on. If you turn on the A/C and the center of the pulley doesn't click and start spinning, the clutch is not engaging. This could be a bad clutch, a blown fuse, or low refrigerant pressure.
- Visible Leaks: The front seal of the compressor can leak refrigerant oil. You might see a greasy, dirty film on the body of the compressor itself. This loss of oil will eventually lead to compressor seizure.
IMPORTANT: Avoid "Black Death" and Repeat Failures
If your old compressor failed internally (made grinding noises or seized), it likely sent metal shavings throughout the entire A/C system. This contamination is often called "black death." If you simply install a new compressor without cleaning the system, this debris will destroy the new part almost immediately. To prevent this, you MUST:
- Replace the Accumulator/Receiver-Drier: This part filters moisture and debris. It is a one-time-use part and must be replaced with the compressor.
- Replace the Orifice Tube or Expansion Valve: This is another small, critical component that can get clogged by debris.
- Flush the System: The condenser, evaporator, and lines must be flushed with an approved A/C flushing agent to remove all old oil and contaminants.
Failure to perform these steps will void the warranty on most new compressors and lead to another failure.
Choosing the Right Aftermarket A/C Compressor
You don't need to buy an expensive OEM part from the dealer. Aftermarket brands offer a range of quality and price points that can be a smart choice for your Voyager.
Tier 1: OEM Quality & Longevity
Brands: Denso, Delphi
These companies are often the original equipment manufacturers for many car brands. A compressor from Denso or Delphi is built to the same standards as the part your van came with from the factory. They are known for durability, quiet operation, and reliability. If you plan on keeping your Voyager for many more years, spending a little more on one of these brands is a wise investment.
Tier 2: Solid Performance & Value
Brands: Valeo, Four Seasons
These are well-known aftermarket brands that offer a good balance of quality and price. Four Seasons is one of the most common brands available and has a reputation for being a reliable choice for daily drivers, though some forum users report mixed experiences. Valeo is also considered a quality replacement part. These are a great middle-ground option.
Tier 3: Budget-Friendly Options
Brands: Global Parts (gpd), Replacement
For those on a tight budget or who don't need the longest possible service life, these brands offer a functional and affordable fix. While they may not have the same long-term durability as premium brands, they will get your A/C working again. Ensure you still follow all installation requirements, like replacing the drier and flushing the system, to get the most life out of the part.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $232 - $453 |
| A/C System Kit (Compressor, Drier, Seals, Oil) | $300 - $550 |
| Shop Labor (including evacuation & recharge) | $300 - $550 |
| Total Estimated Cost | $532 - $1003 |

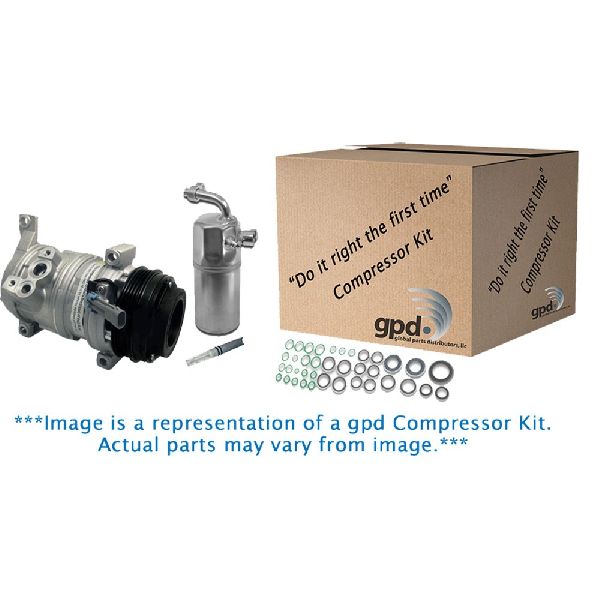

Pro Tip: Buying a complete A/C kit is often the best value. These kits usually include the compressor, accumulator/drier, expansion device, and necessary O-rings and oil, ensuring you have all the required parts for a proper installation.
Frequently Asked Questions
Can I just replace the A/C clutch?
Sometimes, but it's often not worth it. If the compressor is old, or if the clutch failed due to an internal compressor problem (like a leaking seal or bad bearings), replacing only the clutch is a temporary fix at best. Given the labor involved, most mechanics recommend replacing the entire compressor and clutch assembly.
Do I need to add oil to the new compressor?
Yes, but you must use the correct type and amount. Most new compressors come pre-charged with a small amount of oil, but this is not always the full system amount. You must drain the shipping oil, add the correct amount of new PAG oil per your vehicle's specifications, and distribute some in the accumulator and condenser. Too little or too much oil will cause the new compressor to fail.
Can I replace the compressor myself?
The mechanical part of the job (unbolting the old part and bolting on the new one) is feasible for an experienced DIYer. However, it is illegal to release A/C refrigerant into the atmosphere. You need a professional with an EPA-certified recovery machine to evacuate the old refrigerant before you start and to vacuum test and recharge the system after you're done.
Are there any recalls for the 2000-2004 Voyager A/C compressor?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any A/C compressor-specific recalls or Technical Service Bulletins (TSBs) for the 2000-2004 Chrysler Voyager. Any TSBs found relate to much newer models.
Technical Specifications
Uses R134a refrigerant. System requires a specific type and amount of PAG oil. Always verify specifications for your specific engine and model year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
