A Guide to Replacing Disc Brake Calipers on the 2000-2004 Ford F-650
Everything you need to know before buying new aftermarket brake calipers for your medium-duty Ford truck.
- A common failure point is seized caliper slide pins, leading to uneven pad wear and pulling; inspect and lubricate them regularly.
- Replacing calipers in pairs (both front or both rear) is essential for balanced and safe braking.
- New aftermarket calipers offer better corrosion resistance, while remanufactured calipers from brands like Raybestos or Centric are a reliable, cost-effective option.
- Due to the vehicle's size and the safety-critical nature of the job, professional replacement is strongly recommended over DIY.
Is Your F-650 Brake Caliper Failing?
A failing brake caliper on a truck the size of an F-650 is a serious safety issue. Because these trucks use a hydraulic brake system, a problem with a caliper can quickly lead to reduced stopping power. Common signs of a bad caliper include the truck pulling to one side when you brake, strange noises, and a soft or spongy brake pedal.
Known Issue: Seized Caliper Slide Pins
A very common problem on Ford trucks from this era is seized or sticking caliper slide pins. These pins allow the caliper to move side-to-side as the brakes are applied and released. They can corrode and get stuck, especially in areas with road salt. When a pin seizes, the caliper can't move freely, causing the inner brake pad to wear down to the metal while the outer pad looks almost new. This leads to grinding noises, the truck pulling to one side, and a dangerous loss of braking performance. Regular cleaning and lubrication of these pins with high-temperature silicone grease 🎬 Watch: How to replace a seized caliper guide pin can prevent this issue.
Choosing the Right Aftermarket Caliper
When replacing a caliper on your F-650, you'll choose between new and remanufactured parts. OEM (Original Equipment Manufacturer) calipers from Ford are available but are significantly more expensive.
- New Aftermarket Calipers: These are made with 100% new components, including the main caliper body (casting). Brands like Dynamic Friction offer new calipers. They often feature corrosion-resistant coatings, making them a good choice for trucks operating in harsh weather or the rust belt.
- Remanufactured Aftermarket Calipers: These are the most common and budget-friendly option. A "reman" caliper uses an original OEM core that has been disassembled, cleaned, and rebuilt with all new seals, pistons, and hardware. Brands like Cardone, Centric, and Raybestos are well-known for remanufactured calipers. While quality can sometimes be inconsistent, they are pressure-tested to ensure they perform like new.
Which Brand is Best?

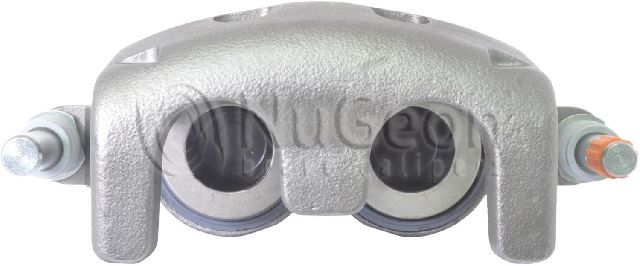

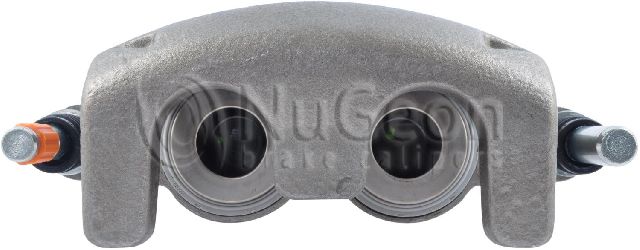

While there are no specific reviews for these brands on the F-650, general industry reputation can guide your choice. Raybestos and Centric are often recommended by mechanics for their quality and reliability in the remanufactured market. Raybestos is noted for its corrosion-resistant zinc plating. Cardone is a major supplier that reverse-engineers parts to fix common factory flaws and uses high-temperature rubber seals. BBB Industries and Dynamic Friction are also established brands available for your truck. For maximum peace of mind, especially if your old caliper failed due to corrosion, a new aftermarket caliper is a strong option.
Cost of Replacing a Ford F-650 Brake Caliper
The total cost depends on the parts you choose and local shop labor rates. It is always recommended to replace calipers in pairs (both front or both rear) to ensure even braking.
| Part/Service | Estimated Cost (Per Caliper) |
|---|---|
| New Aftermarket Caliper | $81.92 - $498.97 |
| Remanufactured Aftermarket Caliper | $85 - $250 (often includes a core charge) |
| New OEM Ford Caliper | $540 - $960 |
| Shop Labor | $200 - $450 |

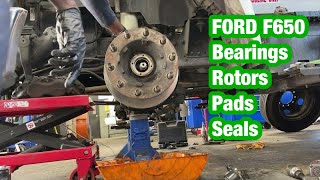

Note: Labor costs are an estimate based on 1.5-2.5 hours per side at a shop rate of $130-$180/hour. Your costs may vary. A complete brake job including new pads and rotors 🎬 Watch: Full service on F-650 rotors, pads, and seals will be more expensive.
Frequently Asked Questions (FAQ)
Should I replace my calipers in pairs?
Yes. It is highly recommended to replace both calipers on the same axle at the same time. If one caliper has failed, the other is likely not far behind due to similar age and wear. Replacing them in pairs ensures balanced braking power and prevents the truck from pulling to one side.
What's the difference between a loaded and semi-loaded caliper?
A "loaded" caliper comes complete with new brake pads and all necessary mounting hardware, including slide pins. A "semi-loaded" or "unloaded" caliper is just the caliper itself, sometimes with the bracket, but without brake pads. If you are also replacing your pads, a loaded caliper can save time and ensure all components are new.
Is there a recall on the 2000-2004 F-650 brake calipers?
No, there are no specific NHTSA recalls for the disc brake calipers on the 2000-2004 Ford F-650. There was a recall for a parking brake bolt on some 2005 models with hydraulic brakes, but it did not involve the calipers themselves.
Can I replace an F-650 caliper myself?
This is a difficult job for a DIY mechanic. The components are very large and heavy, and the bolts require significant torque. The job requires safely lifting and supporting the heavy truck, handling brake fluid, and properly bleeding the brake system afterward. Due to the safety-critical nature of brakes on a medium-duty truck, professional installation is recommended 🎬 See this walkthrough for replacing front brake calipers for most owners.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4C4Z-2B120-MB 4C4Z-2B120-MA 4C4Z-2B121-MA 2C4Z-2B121-CA 4C4Z-2C150-AB
The 2000-2004 Ford F-650 uses a hydraulic disc brake system. Calipers are typically a 2-piston or 4-piston design, depending on the specific axle and configuration. They mount to an anchor plate and house the brake pads. The system requires specific brake fluid (check owner's manual) and proper bleeding after caliper replacement.
