Ford Focus Windshield Washer Pump Guide (2000-2004)
Everything you need to know before replacing the windshield washer pump on your first-generation Ford Focus.
- The most critical step is buying the correct pump: single-outlet for sedans, dual-outlet for hatchbacks and wagons.
- Failure is common due to age, but always check the fuse before ordering a new part.
- Replacement is a simple, DIY-friendly job that can be done in about an hour with basic tools.
- Quality aftermarket brands like Hella and Trico offer a reliable and cost-effective alternative to OEM parts for this repair.
Is Your Windshield Washer Pump Failing?
When the washer pump on a 2000-2004 Ford Focus fails, the signs are usually straightforward. The most common issue is a complete lack of spray when you activate the washer switch. If you don't hear the familiar, faint whirring or humming sound from the front driver's side of the car 🎬 Watch this video to hear the sound of a failing pump., the pump motor has likely failed.
Another symptom is hearing the pump motor run, but seeing little to no fluid spray from the nozzles. This can indicate a clog in the system or a worn-out pump that can no longer generate enough pressure. Less commonly, the plastic housing of the pump itself can crack from age or freezing, causing a noticeable leak of washer fluid under the front driver's side of the vehicle.
Choosing the Right Aftermarket Pump: Sedan vs. Hatchback/Wagon
The single most important factor when buying a new washer pump for your Focus is your vehicle's body style. This determines whether you need a single-outlet or dual-outlet pump.
- Sedan Models: Require a single-outlet pump for the front windshield only.
- Hatchback & Wagon Models: Require a dual-outlet pump to service both the front windshield and the rear window.
Ordering the wrong type is the most common mistake. For aftermarket brands, both Hella and Trico are reliable choices available for this generation of Focus.
- Hella: Often considered an OEM-equivalent brand, Hella is a German company known for producing high-quality electrical components and lighting. Choosing a Hella pump is a solid bet for quality that meets or exceeds original factory standards.
- Trico: A well-known brand in the world of wiper systems, Trico offers washer pumps that are recognized for their easy installation and reliability. They are a dependable and cost-effective aftermarket solution. 🎬 Learn more about the features of Trico aftermarket washer pumps.
For a simple part like a washer pump on this vehicle, both brands offer a significant value over dealer prices without a noticeable difference in performance for most drivers.
Cost of Windshield Washer Pump Replacement (2000-2004 Ford Focus)
| Part Type | Price Range |
|---|---|
| New Aftermarket (Hella, Trico) | $24.64 - $42.30 |
| New OEM (Motorcraft/Genuine Ford) | $37 - $45 |
| Shop Labor | $81 - $119 |
Installation Overview
Replacing the washer pump on a 2000-2004 Focus is a job most DIYers can handle in about an hour with basic tools. The pump is located on the washer fluid reservoir, which is accessed through the front driver's side wheel well.
Pro Tip: Before you start, have a bucket ready. When you pull the old pump out of the reservoir, any remaining washer fluid will drain out.
The basic steps involve safely jacking up the car, removing the driver's side front wheel, and removing a few screws to peel back the plastic fender liner. This exposes the reservoir and the pump. From there, you simply disconnect the electrical connector, pull off the hose(s), and pull the old pump straight out of its rubber grommet on the tank. Installation is the reverse of removal.
🎬 See a step-by-step demonstration of the pump replacement process.Frequently Asked Questions
Is it hard to replace the washer pump myself?
No, it is considered an easy DIY task. If you are comfortable safely jacking up your car and removing a wheel, the rest of the job is straightforward and requires only basic hand tools like a 10mm socket.
My pump isn't working. Should I check a fuse first?
Yes. While pump failure is common, it's always wise to check the fuse first. A blown fuse can cause the pump to stop working entirely. Consult your owner's manual for the correct fuse location in the interior fuse panel.
Are there any recalls for the 2000-2004 Focus washer pump?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for the windshield washer pump on the 2000-2004 Ford Focus. Failures are typically due to the age and normal wear of the part.
What's the difference between a single and dual outlet pump?
A single outlet pump has one port to send fluid to the front windshield. A dual outlet pump has two ports and a reversible motor; it sends fluid to the front windshield or the rear window depending on which way the motor spins. Your Focus sedan needs a single outlet, while a hatchback or wagon needs a dual outlet.

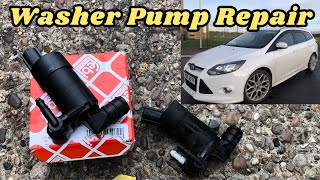

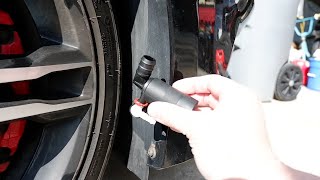

Helpful Videos
Technical Specifications
OEM Part Numbers: YS4Z-17664-AA F8RZ-17664-AA YS4Z-17664-DA
Voltage: 12V. Connection: 2-pin electrical connector. Outlet ports: 1 (Sedan) or 2 (Hatchback/Wagon).
