A Guide to Replacing Ignition Coils on Your 2000-2004 Isuzu Rodeo
Getting rid of that pesky Check Engine Light and rough idle starts with understanding your Rodeo's ignition coils.
- Before replacing the coil for a cylinder #6 misfire (P0306), first check the fuel pressure regulator for leaks, a common issue on these trucks.
- The ignition coil for cylinder #6 is a different, shorter part than the coils for cylinders 1-5. Verify part numbers before installation.
- Replacing the rear two coils (#5 and #6) is much more difficult and requires removing the intake manifold.
- If you are paying for labor to access the rear coils, replace both of them and the spark plugs at the same time to save money in the long run.
Is Your Rodeo's Ignition Coil Failing?
When an ignition coil goes bad on your 2000-2004 Isuzu Rodeo, it almost always causes an engine misfire. This means one of the engine's cylinders isn't firing correctly. The symptoms are hard to ignore and should be addressed quickly to avoid damaging your expensive catalytic converter with unburnt fuel.
Common symptoms include:
- A steady or flashing Check Engine Light
- A rough, shaky idle when you're stopped
- The engine hesitates or feels sluggish when you accelerate 🎬 Watch: A case study on diagnosing Rodeo misfires and low power
- Worse gas mileage than usual
- A smell of raw gasoline from the exhaust
The Check Engine Light will be your most direct clue. A code scanner will usually show a generic misfire code (P0300) 🎬 Watch: How to use repair resources to diagnose a P0300 code or a code for a specific cylinder (P0301 through P0306).
Known Issues for the 2000-2004 Isuzu Rodeo
There are no official recalls for the ignition coils on these trucks. However, there are two very common, vehicle-specific issues you need to know about before buying parts.
The Cylinder #6 Misfire Trap
If you have a misfire code for cylinder #6 (P0306), do not automatically assume the coil is bad. A Technical Service Bulletin (TSB) for the nearly identical Honda Passport points out that a leaking fuel pressure regulator can drip fuel onto the cylinder #6 intake runner. This causes symptoms identical to a bad coil. Before replacing the hard-to-reach #6 coil, check for signs of a faulty fuel pressure regulator.
Cylinder #6 Uses a Different Coil
An Isuzu TSB confirms that on the 3.2L V6, the ignition coil for cylinder #6 is shorter than the coils for cylinders 1 through 5. Installing a standard coil in the #6 position, or a #6 coil in any other position, can cause a persistent P0300 random misfire code. Always verify you are installing the correct part number in the correct location.
Choosing the Right Aftermarket Ignition Coil
Original Equipment (OEM) coils for your Rodeo were high quality, but after two decades, even the best parts fail. Aftermarket parts offer a wide range of quality and price. For this truck, you can group them into three tiers.
Tier 1: OEM-Quality Brands
These brands are known to be original equipment suppliers to many carmakers and have a strong reputation for reliability. They are your best bet for a long-lasting repair that matches original performance.
- NGK: A top name in ignition components, often recommended in forums for its compatibility with Isuzu engines.
- Delphi: A major OEM supplier known for quality electronics. A very solid choice.
- Denso: Another top-tier OEM supplier with a reputation for durability.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and cost. They are a dependable choice for most owners and are often easier to find.
- Standard Motor Products (SMP): A long-standing brand with a generally good reputation. Be aware they offer different quality lines; stick to their main line rather than budget T-series parts.
- Walker Products: Known for focusing on OE-level fit and function, making them a reliable option.
- Spectra: A common and reliable aftermarket brand that meets or exceeds OEM specifications.
Tier 3: Budget-Focused Brands
Brands like DriveWire, Skyward, and Global Parts offer significant cost savings. They can be a solution if budget is your primary concern, but their long-term durability may not match the higher-tier brands. They are best for the easily accessible front coils, where replacement is simple if one fails prematurely.
Pro Tip: Diagnosing a Bad Coil
If you have a misfire code for an accessible cylinder (like P0301), you can confirm the coil is bad before buying a new one. Simply swap the suspected bad coil with a known good one from another cylinder (like cylinder #3). Clear the codes and run the engine. If the code changes to P0303, the problem moved with the coil, and you know for sure the coil is the culprit.
Cost of Replacing Isuzu Rodeo Ignition Coils
| Part/Service | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $30 - $115 |
| Single OEM Ignition Coil | $120 - $180 |
| Shop Labor (Front Coils) | $50 - $100 |
| Shop Labor (Rear Coils #5 & #6) | $250 - $400+ |

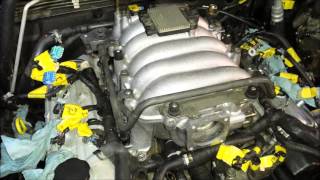

Note: Labor costs to replace the rear coils are much higher because the upper intake manifold must be removed 🎬 See this walkthrough for removing the intake manifold to reach rear coils for access.
Frequently Asked Questions (FAQ)
Do I need to replace all six ignition coils at once?
You are not required to replace them all. However, all the coils are the same age. If one has failed, others may soon follow. If you are paying a mechanic to remove the intake manifold to access the rear coils (#5 and #6), it is highly recommended to replace both at the same time to avoid paying for the same labor twice.
How difficult is it to replace the coils myself?
The front four coils are very easy (1/5 difficulty). They are held by a single bolt each and are right on top of the engine. The rear two coils are much harder (3/5 difficulty) because you must remove the upper intake manifold to reach them. This is a more involved job that requires new gaskets and careful reassembly.
Is the ignition coil for cylinder #6 really different?
Yes. According to a Technical Service Bulletin, the coil for cylinder #6 is physically shorter than the coils for cylinders 1-5. Using the wrong coil in the wrong place can cause misfires. Ensure you have the correct part for the specific cylinder you are working on.
Can a bad ignition coil damage my engine?
Yes. Continuing to drive with a misfire allows raw, unburnt fuel to be dumped into the exhaust system. This can quickly overheat and destroy the catalytic converter, turning a small repair into a very expensive one.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8190052490 8-19005-249-0
This is a coil-on-plug (COP) system. The coil for cylinder #6 has a unique part number and is physically shorter than the coils for cylinders 1-5.
