A Guide to the Vehicle Speed Sensor for the 2000-2004 Lincoln Town Car
An erratic speedometer or harsh shifting in your Town Car could point to a failing vehicle speed sensor.
- A failing VSS on a Town Car most commonly causes harsh shifting and an erratic speedometer.
- The VSS is located on the transmission and is a simple, single-bolt replacement suitable for most DIYers.
- The Check Engine Light with code P0500 is a strong indicator of a VSS failure.
- Quality aftermarket brands are a reliable and cost-effective solution for this repair.
Is My Town Car's Vehicle Speed Sensor Failing?
The Vehicle Speed Sensor (VSS) is a key sensor on your 2000-2004 Lincoln Town Car. Because it provides speed data to multiple systems, a single failing sensor can cause several noticeable problems. Owners often report a combination of these issues when the VSS starts to go bad.
Top 5 Failure Symptoms:
- Harsh or Erratic Shifting: This is the most common and noticeable symptom for Town Car owners. The transmission uses the VSS signal to decide when to shift. A bad signal can cause delayed, hard, or unpredictable shifts.
- Erratic or Dead Speedometer: The speedometer needle may jump around, read incorrectly, or not move at all.
- Cruise Control Not Working: The cruise control system relies on a steady speed signal from the VSS to function. If the signal is lost or erratic, the cruise control will not engage or will cut out unexpectedly.
- Check Engine Light: A faulty VSS can trigger the Powertrain Control Module (PCM) to store a diagnostic trouble code (DTC) and illuminate the Check Engine Light. The most common code for this issue is P0500. 🎬 Watch this step-by-step P0500 diagnostic and sensor replacement guide.
- ABS/Traction Control Light: While the VSS is different from the wheel speed sensors used for the Anti-lock Brake System (ABS), the systems are related. In some cases, a VSS failure can cause the ABS or traction control warning lights to come on.
Don't Mistake a VSS for an ABS Sensor
Your Town Car has multiple speed sensors. The Vehicle Speed Sensor (VSS) is located on the transmission and measures overall vehicle speed. The ABS Wheel Speed Sensors (WSS) are located at each wheel and are used for the anti-lock braking system. While they perform similar functions, they are not interchangeable. 🎬 See how to replace a front ABS wheel speed sensor. A P0500 code specifically points to the VSS on the transmission.
Choosing the Right Aftermarket VSS
For a vehicle like the 2000-2004 Lincoln Town Car, aftermarket parts are a popular and cost-effective choice. The VSS is a relatively simple electronic component, and reputable aftermarket brands produce reliable replacements. There is generally no need to pay a premium for an OEM part unless you prefer to stick with factory components.
When shopping for a new VSS, you'll find several brands available. Here’s a breakdown of common aftermarket tiers:
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Motor Products (SMP) are well-regarded in the industry. They often have a reputation for quality that meets or exceeds OEM standards and are a trusted choice for professional mechanics.
- Standard Aftermarket (e.g., Holstein, Walker Products): These brands offer a balance of quality and value. They manufacture parts to OEM specifications and often come with a good warranty, making them a solid choice for most DIY repairs.
- Economy Brands: While the lowest price can be tempting, be cautious with unknown or budget brands for electronic parts. A sensor that fails prematurely can lead to the same drivability issues and require you to do the job all over again.
Pro Tip: Check the Connector
Before ordering, it's always a good idea to visually inspect the sensor on your vehicle. Confirm the electrical connector shape matches the images of the part you are ordering to avoid delays.
Cost of Replacing the Vehicle Speed Sensor
Replacing the VSS is an affordable repair. The parts are inexpensive, and if you have it done at a shop, the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket VSS | $20 - $42 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $70 - $142 |
Frequently Asked Questions
Where is the VSS located on a 2000-2004 Town Car?
The Vehicle Speed Sensor is located on the driver's side of the transmission, near the tailshaft where the driveshaft connects. It is typically held in place by a single 10mm bolt and has a two-wire electrical connector.
Can I replace the VSS myself?
Yes, this is a very DIY-friendly repair. It requires basic hand tools, and you'll need to safely raise the vehicle with a jack and jack stands to access the sensor on the transmission. The process involves unplugging the electrical connector, removing one bolt, swapping the sensor, and then re-installing the bolt and connector.
🎬 Watch a mechanic demonstrate how to change the speed sensor.What happens if I don't replace a bad VSS?
While the car will likely still run, you will continue to experience poor drivability, including harsh shifting which can cause premature wear on your transmission. You will also have an inaccurate or non-working speedometer and no cruise control. It is recommended to replace it as soon as possible to avoid further issues.
Are there any recalls for the VSS on my Town Car?
No, there are no specific recalls for the Vehicle Speed Sensor on the 2000-2004 Lincoln Town Car. Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for other components, but none related to VSS failure for this model year range.
Helpful Videos
Technical Specifications

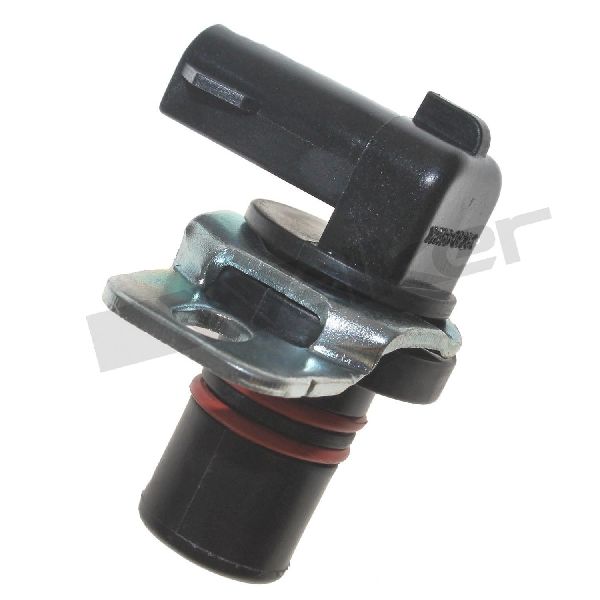

OEM Part Numbers: F8AZ7H103AA 3L3Z-7H103-AA
2-pin connector, mounts on transmission tailshaft housing.
