A Guide to Replacing Engine Mounts on the 2000-2004 Nissan Maxima
Tired of the shaking and clunking? Your Maxima's engine mounts are a likely culprit.
- Automatic models have electronic front/rear mounts that can fail and destroy the expensive ECU.
- Replacing failed electronic mounts with solid rubber manual transmission mounts is a popular, durable fix.
- Budget brands like Anchor and DEA may cause more vibration and have a shorter lifespan than OEM or premium aftermarket parts.
- Polyurethane inserts from Energy Suspension are a performance upgrade that will significantly increase cabin vibration.
Signs of a Bad Engine Mount on Your Maxima
When engine mounts wear out, the signs are hard to ignore. The rubber cracks and separates, or the fluid inside electronic mounts leaks out. This allows the engine to move excessively, leading to symptoms that range from annoying to severe.
- Excessive Vibration: You'll feel a strong vibration through the steering wheel, floor, and seats, especially when the car is idling in gear.
- Loud Noises: A distinct "thump" or "clunk" when you accelerate, put the car in gear, or shut off the engine is a classic sign. This is the sound of the engine shifting and hitting against other components.
- Visible Engine Movement: If you have a helper put the car in drive while holding the brake and lightly pressing the gas, you may see the engine lift up significantly. A torn mount will show a large gap or complete separation. 🎬 Watch: How to identify and locate a failing engine mount.
- Buzzing Sound (Electronic Mounts): A unique symptom of a failing electronic mount is a buzzing or whirring noise that continues for a short time after you turn the car off. This indicates the mount's internal electronics are shorting out.
A Critical Warning for Automatic Maxima Owners
The electronic engine mounts on 2000-2004 automatic Maximas are known to fail in a way that can destroy your Engine Control Unit (ECU). When the mount's electronics short-circuit, they can send a voltage spike to the ECU, causing a very expensive failure. Many owners choose to unplug the mounts or replace them with non-electronic versions to prevent this damage.
Choosing the Right Aftermarket Engine Mount
When shopping for new engine mounts, you have several options beyond the expensive dealership parts. The best choice depends on your budget and how you use your Maxima.
Option 1: Standard Aftermarket Replacement
These mounts are designed to be direct, affordable replacements. They are typically divided into a few quality tiers.
- Premium Aftermarket (e.g., Beck Arnley): Brands like Beck Arnley focus on matching the original part's fit and function, often for Japanese vehicles. They are generally considered a step up from budget parts, but forum experiences can be mixed, with some users reporting they don't last as long as OEM.
- Economy Aftermarket (e.g., Anchor, DEA, Westar): These brands offer the lowest price. However, owner forums frequently report that these mounts are made from harder rubber that causes more vibration or fails very quickly. They can be a solution if budget is the absolute top priority, but be prepared for potential trade-offs in comfort and longevity.
Pro Tip: Use Manual Mounts for a Durable Fix
A popular and reliable solution for automatic Maxima owners is to replace the failure-prone electronic front and rear mounts with the solid rubber mounts designed for the manual transmission version of the car. This completely eliminates the risk of frying your ECU. You will likely notice a slight increase in vibration at idle, but many owners find it to be a very minor and acceptable trade-off for the added durability and peace of mind.

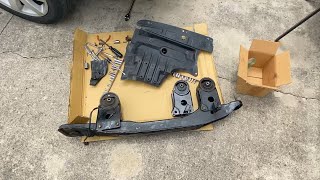

🎬 See this walkthrough for replacing front and rear lower mounts.Option 2: Polyurethane Inserts (e.g., Energy Suspension)
This is a performance-oriented modification, not a standard replacement. Energy Suspension makes polyurethane inserts that you press into your existing mount brackets (or into new, cheap aftermarket mounts). These inserts fill the empty voids in the rubber, making the mount nearly solid. This drastically reduces engine movement, which can improve throttle response and reduce wheel hop. The major downside is a significant increase in cabin vibration and noise (NVH). This is a great choice for a weekend track car but not recommended for a comfortable daily driver.
How Much Does an Engine Mount Replacement Cost?
The front and rear mounts are the most likely to fail and also the most labor-intensive to replace. The cost will depend on the parts you choose and local labor rates.
| Part Type | Estimated Part Cost (Single Mount) |
|---|---|
| New OEM | $180 - $300+ |
| New Aftermarket | $41 - $238 |
| Shop Labor | $250 - $600 |
Frequently Asked Questions
Which mounts fail first on the 2000-2004 Maxima?
The front and rear lower engine mounts bear the most load from the engine's torque and are almost always the first to fail. The side mounts (engine and transmission) typically last much longer.
What's the difference between automatic and manual transmission mounts?
On this Maxima, automatic models use electronic, fluid-filled front and rear mounts to reduce idle vibration. Manual transmission models use simpler, more durable solid rubber mounts in the same location.
Can I really use a manual transmission mount in my automatic Maxima?
Yes. This is a very common and recommended modification. You will simply leave the electronic connector for the old mount unplugged. This prevents future electronic failure and protects your ECU.
Is replacing the engine mounts a DIY job?
Replacing the front and rear mounts is a moderately difficult job for an experienced DIY mechanic. It often requires supporting the engine and lowering the front subframe to gain access. If you are not comfortable with this level of work, it is best left to a professional shop. 🎬 Watch: A step-by-step guide to replacing the front engine mount. The side mounts are generally easier to access and replace.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11320-40U01 11320-2Y101 11270-8J10A 11210-2Y00E
The 2000-2004 Maxima uses a four-point engine mounting system. Automatic transmission models feature electronic, fluid-filled front and rear mounts. Manual transmission models use solid rubber mounts. The front and rear mounts are attached to the front subframe.
