Nissan Maxima HVAC Blower Motor Guide (2000-2004)
If your Maxima's heat or A/C fan is dead or noisy, this guide is for you.
- First, diagnose if the problem is the blower motor or the more commonly failed blower motor resistor/amplifier.
- If the fan only works on high, the resistor is almost certainly the culprit.
- Replacement is an easy DIY job, located behind the glove box, requiring only basic tools.
- If replacing a failed motor, it's wise to also replace the resistor to prevent damage to the new part.
Is it the Blower Motor or the Resistor?
Before you replace the blower motor in your 2000-2004 Maxima, it's crucial to diagnose the problem correctly. Many symptoms of a bad blower motor are identical to a failed blower motor resistor (or Fan Control Amplifier on models with automatic climate control). A misdiagnosis can cost you time and money.
The #1 Most Common Failure: The Resistor/Amplifier
The most common issue for this generation of Maxima is NOT the blower motor itself, but the part that controls its speed. If your fan only works on the highest speed setting, the resistor is almost certainly the problem. If the fan doesn't work on any speed, it could be either the motor or the resistor. Testing the resistor first is a smart move.
Diagnosing the Real Problem
- Fan only works on HIGH: This is a classic sign of a bad blower motor resistor. The high setting bypasses the resistor, sending full power directly to the motor.
- Fan doesn't work on ANY speed: This could be the motor, the resistor, or a fuse. A simple test is to supply 12-volt power directly to the motor. If it spins, the motor is good, and the problem lies elsewhere (likely the resistor/amplifier).
- Squealing, clicking, or rattling from the dash: This usually points to a failing blower motor. The bearings wear out, or debris gets into the fan cage, causing noise.
- Burning smell from vents: This can be a serious symptom. It could be an overheating blower motor or a melting resistor and wiring harness. Address this immediately.
Choosing an Aftermarket Blower Motor
For the 2000-2004 Maxima, the original equipment (OEM) blower motor was reliable, but aftermarket options provide excellent value and are a common repair. Since the replacement job is relatively easy, using a quality aftermarket part is a sensible choice for most owners. The key is to choose a brand known for quality manufacturing.
Aftermarket Brand Quality
Based on general reputation and user feedback, here is a breakdown of the available brands:

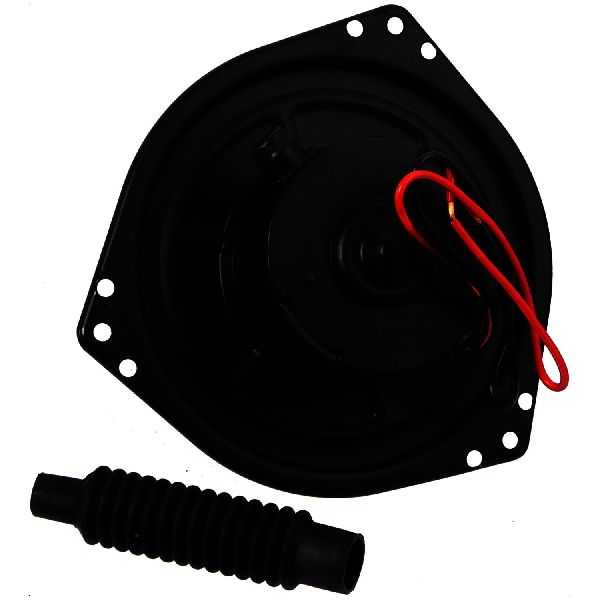

- Continental: Often considered a top-tier aftermarket brand, Continental parts are known for their engineering and frequently meet or exceed OE specifications. They are a strong choice for longevity and quiet operation.

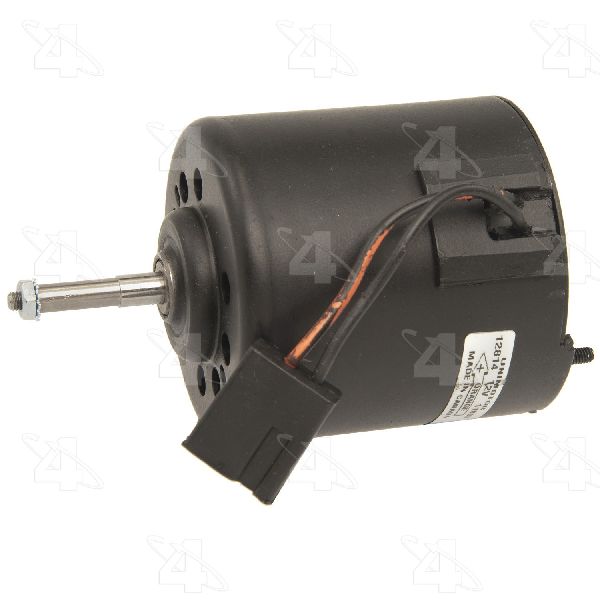

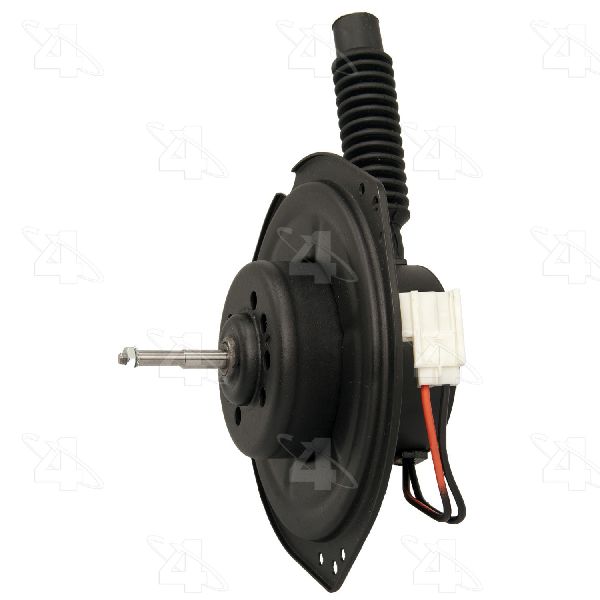

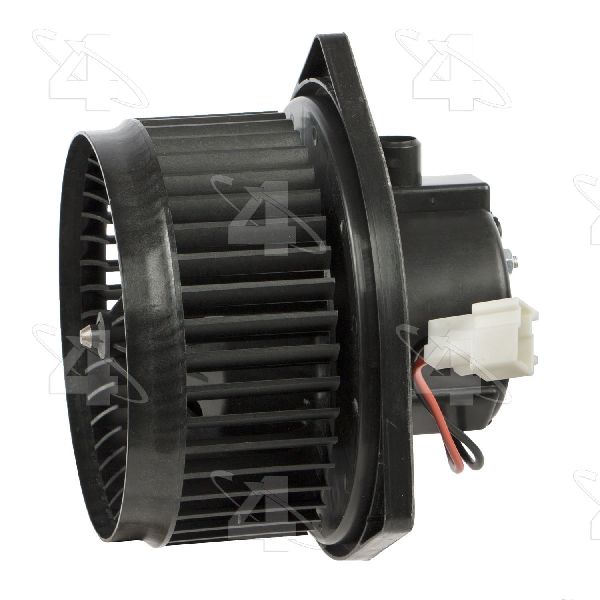

- Four Seasons: A well-known name in HVAC parts, Four Seasons offers a direct-fit, reliable replacement. They are a popular choice for DIY and professional repairs, offering a good balance of quality and price.

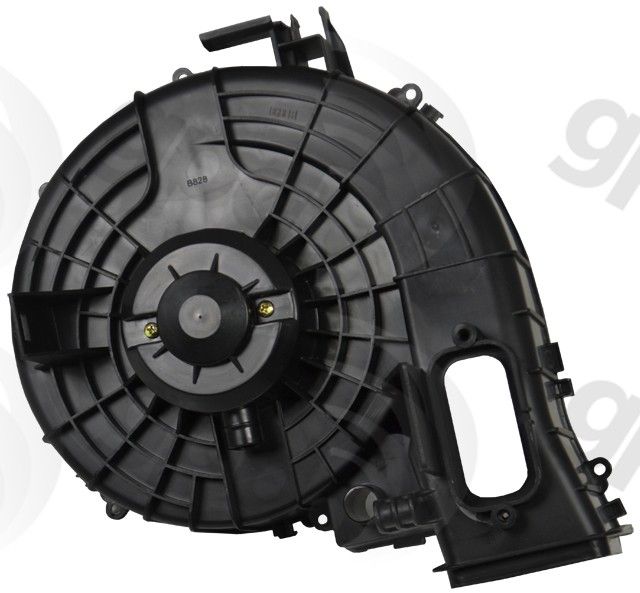

- Global Parts (and other value brands): These brands focus on providing a cost-effective solution. While they may not have the same long-term reputation as Continental, they can be a good option for budget-conscious repairs, especially on an older vehicle.
Pro Tip: Replace the Resistor at the Same Time
A failing blower motor can draw too much electrical current, which can damage and burn out a new blower motor resistor. If you are replacing a blower motor that has failed, it is highly recommended to replace the resistor/amplifier at the same time to prevent a repeat failure. Many parts are sold in kits for this reason.
Cost of Replacing a 2000-2004 Maxima Blower Motor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Blower Motor | $72 - $98 |
| New OEM Blower Motor | $175 - $250 |
| Shop Labor | $75 - $150 |
| Total (DIY Aftermarket) | $72 - $98 |
| Total (Shop-Installed Aftermarket) | $147 - $248 |
Frequently Asked Questions (FAQ)
Can I replace the blower motor myself?
Yes, this is a very DIY-friendly job. The blower motor is located behind the glove box and is typically held in by three screws. The entire job can usually be completed in under an hour with basic hand tools like a Phillips screwdriver.
Where is the blower motor located?
On the 2000-2004 Nissan Maxima, the blower motor and the resistor/amplifier are located behind the passenger side glove box. You will need to remove the glove box assembly to gain access.
Are there any recalls on the HVAC system for this Maxima?
No, there are no specific recalls from Nissan or the NHTSA for the HVAC blower motor or resistor on the 2000-2004 Maxima. There was a TSB (Technical Service Bulletin) for a "ticking" noise from the fan on some models, which resulted in dealers replacing the motor under warranty. There were unrelated recalls for airbags and a SkyView roof panel on some model years.
Do I need to disconnect the battery?
While not always strictly necessary for this repair, it is always a best practice to disconnect the negative battery terminal before working on any electrical components in your vehicle. Be aware that removing the glove box exposes the passenger airbag harness (usually yellow), which should NOT be unplugged.
Technical Specifications
OEM Part Numbers: 27200-2Y900 27220-2Y900
Fits 2000, 2001, 2002, 2003, and 2004 Nissan Maxima models. Includes motor and fan cage (wheel). Mounts behind the passenger side glove compartment.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
