Ignition Coil Guide for the 2000-2004 Nissan Sentra
Solve your Sentra's engine misfires and poor performance by understanding and choosing the right replacement ignition coils.
- Check for oil in the spark plug tubes; a leaking valve cover gasket is a common cause of coil failure and must be fixed.
- For best results, choose OEM-quality brands like Hitachi, NGK, or Delphi.
- It is strongly recommended to replace all four coils and spark plugs at the same time for long-term reliability.
- This is a very simple DIY job that can be completed in under 30 minutes with basic tools.
Is Your Sentra's Ignition Coil Failing?
A bad ignition coil on a 2000-2004 Sentra will usually make itself known through poor engine performance. Because each cylinder has its own coil, a single failure means your 4-cylinder engine is trying to run on only three cylinders. 🎬 Learn more about common ignition coil problems and symptoms. This can cause a variety of noticeable problems.
Common Failure Point
A very common reason for ignition coil failure on this generation of Sentra is a leaking valve cover gasket. Oil seeps into the spark plug tubes and contaminates the ignition coil boot, causing the coil to short out and fail. If you are replacing your coils, it is critical to inspect the spark plug tubes for oil. If oil is present, you must replace the valve cover gasket set to prevent repeat failures.
Choosing the Right Aftermarket Ignition Coil
When replacing ignition coils, you have a choice between Original Equipment (OEM) and various aftermarket brands. For the 2000-2004 Sentra, the quality of aftermarket parts can vary significantly. Here’s a breakdown to help you choose.
Tier 1: OEM-Quality Brands
These brands are known for manufacturing original parts for Nissan or for having a reputation for equivalent quality. They are the most recommended choice for reliability and longevity.

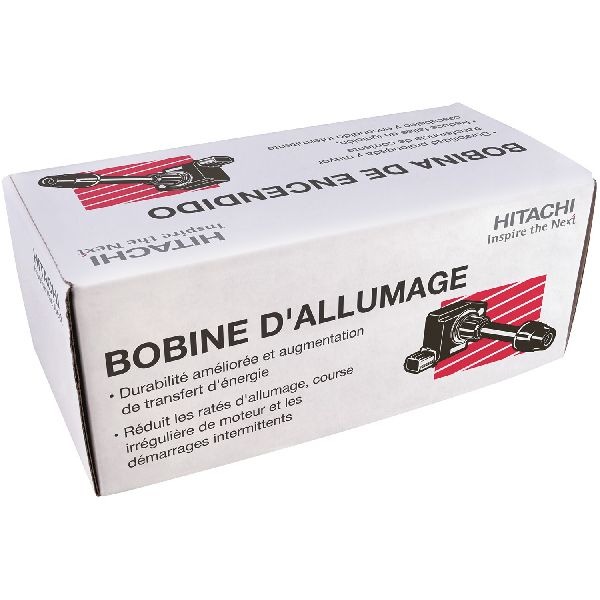

- Hitachi: Hitachi was a frequent original equipment supplier for Nissan during this period. Choosing a Hitachi aftermarket coil is often the closest you can get to the original part without paying dealership prices.
- NGK: NGK is a top-tier name in ignition components, famous for its spark plugs and coils. They are a trusted brand among mechanics and DIYers for quality and reliability.
- Delphi: Another well-respected OEM supplier, Delphi products are known for their quality and durability.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and value. They are a solid choice if top-tier brands are outside your budget.
- Standard Ignition (SMP): A long-standing company that offers reliable parts.
- Spectra Premium: Known for making quality replacement parts, including ignition components made with premium grade copper.
- Walker Products: A trusted name in engine management components.
Tier 3: Value-Oriented Brands
This category includes brands like DriveWire and other private labels. While the low price is tempting, forum discussions and mechanic advice often warn against using lesser-known, cheaper brands for ignition components, as they can have a higher failure rate, leading you to do the job twice. If you are on a strict budget, they can get you back on the road, but their long-term reliability may be questionable.
Pro Tip: Replace in Sets
Ignition coils are often produced at the same time and endure the same conditions. When one fails, others may not be far behind. To save time and ensure reliability, it is highly recommended to replace all four ignition coils at the same time, along with a new set of high-quality spark plugs.
Cost of Replacing Ignition Coils (2000-2004 Nissan Sentra)
| Part / Service | Estimated Cost |
|---|---|
| Single OEM Ignition Coil | $130 - $200 |
| Single Aftermarket Ignition Coil | $23 - $150 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Is it hard to replace the ignition coils on a 2000-2004 Sentra?
No, it is a very easy job for a DIYer. The coils are located directly on top of the engine, each held by a single 10mm bolt. The process involves removing a plastic engine cover, disconnecting the electrical connector, removing the bolt, and pulling the old coil straight out. The entire job for all four coils can typically be done in under 30 minutes with basic hand tools.
🎬 See how easy it is to replace your Sentra's coils.Do I need to replace all four ignition coils at once?
While you can replace only the single failed coil, it is highly recommended to replace all four as a set. Coils wear at a similar rate, so if one has failed due to age and heat cycles, the others are likely to fail soon. Replacing them all at once prevents future breakdowns and repeated repair jobs.
Should I replace my spark plugs with my ignition coils?
Yes, it is a best practice to replace the spark plugs whenever you replace the ignition coils. Worn or fouled spark plugs can put extra strain on the ignition coils, potentially causing them to fail prematurely. Since you already have the coils out, accessing the spark plugs requires no extra labor.
🎬 Watch this DIY guide to replacing your coils and plugs.Were there any recalls for the 2000-2004 Sentra ignition coils?
No, there were no specific recalls for the ignition coils themselves. However, there was a recall (NHTSA #03V-477) for the Engine Control Module (ECM) on some 2000-2003 Sentras with the 1.8L QG18DE engine. This issue could cause poor drivability and stalling, which can sometimes be confused with ignition problems. There were also several major recalls related to Takata airbags for this vehicle generation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22448-6N015 22448-4M500 22448-4M50A 22448-ED800

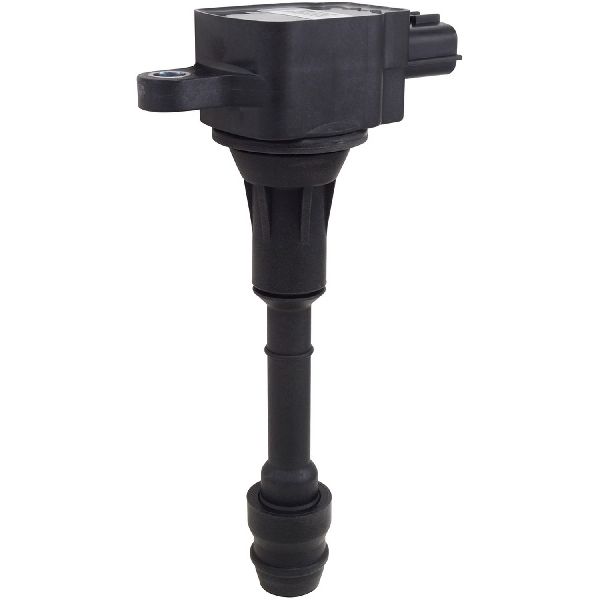

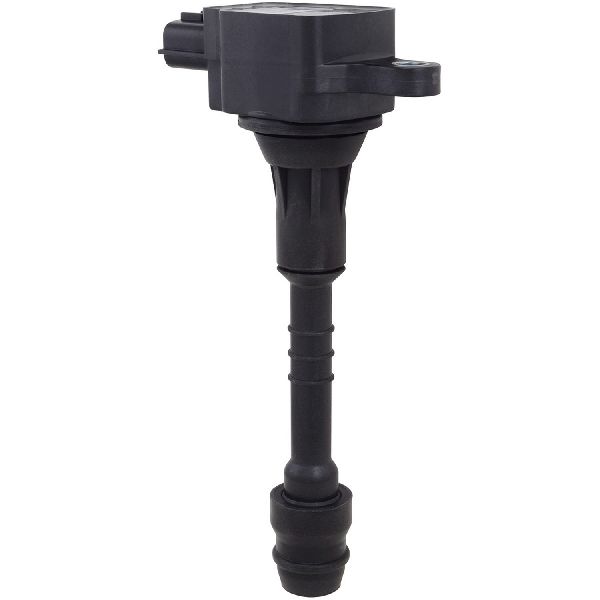

This vehicle uses a coil-on-plug ignition system. Each of the four cylinders has its own individual ignition coil. The coils are held in place by a single 10mm bolt and connect directly to the spark plug.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
