Audi S3 (8L) Engine Camshaft Position Sensor: A Complete Guide for 2000-2005 Models
If your imported Audi S3 is running rough, stalling, or has a check engine light, a bad camshaft position sensor could be the problem.
- A bad camshaft sensor on your S3 can cause stalling, a check engine light (P0340, P0341), hard starting, and poor performance.
- For reliability on this critical part, it is highly recommended to use an OEM-supplier brand like Bosch or a reputable aftermarket brand like NGK or Standard Ignition.
- Replacement is an easy DIY job that takes less than 30 minutes with basic tools.
- The 2000-2005 Audi S3 (8L) was not officially sold in North America, so parts availability may be focused on its shared 1.8T engine platform.
Is Your Audi S3 Stalling or Running Rough? It Could Be the Camshaft Sensor
A failing camshaft position sensor can cause several noticeable issues with your S3's performance. Because this sensor is essential for engine timing, a bad signal can confuse the engine's computer, leading to poor operation. Recognizing the signs of failure is the first step to getting your car back in top shape.
A Note for North American Owners
The first-generation Audi S3 (chassis code 8L) was produced from 1999 to 2003, though model years can extend to 2005 in some markets. It's important to know that this model was not officially sold in the United States or Canada. Any 2000-2005 S3 in North America is a private import. This guide is for owners of these special imported vehicles.
Symptoms of a Failing Camshaft Position Sensor
When the camshaft position sensor starts to go bad, your S3 will let you know. Here are the most common symptoms:
- Check Engine Light: This is often the first warning sign. The computer will store a fault code related to the sensor's circuit or performance.
- Difficulty Starting: The engine might take longer than usual to start, or it may not start at all. A bad sensor signal prevents the ECU from properly timing the initial fuel and spark.
- Rough Idle and Stalling: Your engine may idle unevenly, shake, or even shut off unexpectedly. Stalling can be dangerous, especially in traffic.
- Poor Engine Performance: You may feel a significant loss of power, hesitation when you press the gas pedal, and general sluggishness.
- Reduced Fuel Economy: If the ECU can't time the engine correctly, it may use more fuel than it needs to, causing your gas mileage to drop.
Warning: It's Not Always the Sensor
A fault code for the camshaft position sensor (like P0340 or P0341) doesn't always mean the sensor itself is broken. On the 1.8T engine, these codes can sometimes point to a more serious issue with the timing belt or tensioner. If you replace the sensor and the check engine light comes back, it is critical to have a mechanic inspect your engine's timing components to prevent severe engine damage.
Choosing the Right Aftermarket Sensor for Your S3
When it comes to critical engine sensors on a German car, quality is key. While saving money is tempting, a cheap, low-quality sensor can fail quickly, leaving you stranded. It's often best to choose a brand with a strong reputation for reliability.
Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a general breakdown of the brands available for your S3:
- OEM-Quality Aftermarket (Tier 1): The original sensor for your Audi was likely made by Bosch. Choosing an OEM-supplier brand is the safest bet for fit and longevity. Brands like NGK also have a strong reputation in the European car community for producing reliable sensors.
- Reputable Aftermarket (Tier 2): These brands are known for making quality parts that meet or exceed original specifications. They are a solid choice if an OEM supplier isn't available. This tier includes brands like Standard Ignition (SMP) and Walker Products.
- Standard/Value Options (Tier 3): Brands like Dorman, Global Parts, Motorad, Spectra, and True Tech offer more budget-friendly options. While they can work, some mechanics and owners report a higher chance of early failure compared to top-tier brands.
Cost of Replacing an Audi S3 Camshaft Position Sensor
| Part Type | Price Range |
|---|---|
| New OEM (Bosch/Genuine Audi) | $65 - $115 |
| New Aftermarket | $21.28 - $68.80 |
| Shop Labor | $55 - $110 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor located on the 2000-2005 Audi S3?
On the 1.8T engine, the camshaft position sensor is located on the front of the cylinder head, on the driver's side, behind the upper timing belt cover. You will need to unclip and remove a plastic cover to access it.
Is replacing the camshaft position sensor a DIY job?
Yes, for most home mechanics, this is a very easy job. It requires basic tools like a 10mm socket and can be completed in under 30 minutes. You simply disconnect the electrical plug, remove two small bolts, and swap the old sensor for the new one.
What is a Hall Effect sensor?
A Hall Effect sensor is a type of electronic sensor that uses a magnetic field to detect the position of a rotating part. The camshaft in your S3 has a piece on it that triggers the sensor as it spins, creating a voltage signal that the ECU can read.
Do I need to replace the O-ring with the sensor?
Yes. The sensor has a rubber O-ring that seals it against the engine to prevent oil leaks. A new sensor should come with a new O-ring. It's a good idea to apply a light coat of clean engine oil to the new O-ring before installation to ensure a good seal and prevent tearing.
Should I buy an OEM sensor or is aftermarket okay for my S3?
Many experienced Audi mechanics strongly recommend using an OEM-supplier part (like Bosch) for critical engine sensors. The price difference is often small, and the risk of a cheaper sensor failing and causing stalling or a no-start condition may not be worth the savings. However, reputable aftermarket brands like NGK or Standard Ignition are generally considered reliable alternatives.
Technical Specifications
OEM Part Numbers: 058905161B 058905161C

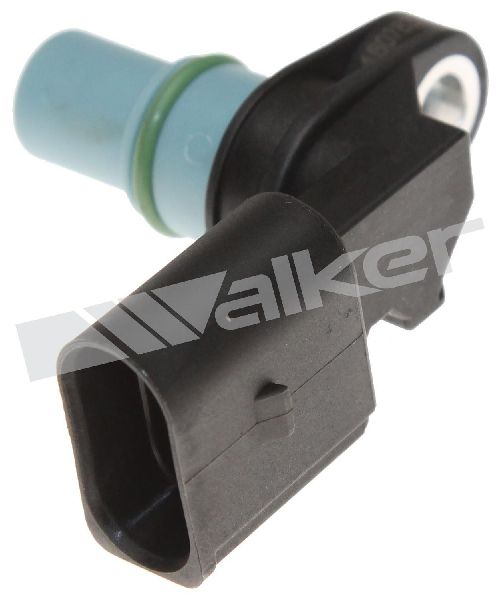

3-pin Hall Effect sensor.
