2000-2005 Buick LeSabre A/C Actuator Diagnosis and Replacement Guide
Fix the annoying clicking in your dash and get your heat and A/C working correctly again.
- Your LeSabre has multiple A/C actuators; diagnose the correct one (temperature vs. mode) before buying.
- A clicking noise from the dash is the most common symptom of a failing actuator with stripped plastic gears.
- Replacement of the actuators behind the glove box is a simple DIY job that can be done in under an hour with basic tools.
- Aftermarket actuators are a cost-effective solution for this common failure point.
Is Your LeSabre's Dashboard Clicking or Ticking?
A common problem with the 2000-2005 Buick LeSabre is a rhythmic clicking, ticking, or knocking sound coming from behind the glove box. This noise often happens when you start the car or change the temperature or vent settings. It's the sound of a failing A/C actuator with stripped plastic gears trying and failing to move an HVAC door to the correct position. 🎬 Watch this video to hear the clicking and see the repair. You might also notice that your A/C only blows hot air, your heater only blows cold, or the air comes out of the wrong vents.
Identify the Correct Actuator Before You Buy
Your LeSabre has at least two main actuators behind the glove box: one for temperature (blend door) and one for airflow direction (mode door). Cars with dual-zone climate control have additional actuators. Listen carefully and observe the symptoms to figure out which one has failed. Buying the wrong one means you'll be doing the job all over again.
Choosing an Aftermarket A/C Actuator
When replacing a failed A/C actuator, you have the choice between original equipment (OEM) and aftermarket parts.
- OEM (ACDelco): These are the parts your car was built with. While they offer a guaranteed fit, the original design is prone to failure due to plastic gears. An OEM part from a dealer is often the most expensive option.
- New Aftermarket (Replacement/Dorman): Aftermarket brands like Dorman are a popular, budget-friendly choice. Since the original design is known to fail, many owners choose a less expensive aftermarket part. Even if it doesn't last as long as an OEM part, the low cost and ease of replacement make it a practical choice for many LeSabre owners.
Pro Tip: The core issue is often the plastic gears inside the actuator, which can fail on both OEM and aftermarket parts. Given the low cost of an aftermarket part and the high failure rate of the original design, a new aftermarket actuator provides excellent value.
DIY Replacement Guide: It's Easier Than You Think
For the common actuators located behind the glove box, this is a job most DIY-ers can handle with basic tools. The general process is straightforward.
- Empty and Remove the Glove Box: Open the glove box and remove the screws holding the inner liner. You may need to unhook a small support string. The liner then pulls out.

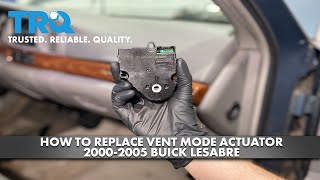

- Locate the Failed Actuator: You will see one or more black plastic boxes with wire connectors. The temperature blend door actuator is typically to the left, while the mode door actuator is also in this area. 🎬 See this walkthrough for replacing the vent mode actuator. With the car on, change the controls and watch/feel for the one that is clicking.
- Disconnect and Remove: Unplug the electrical connector from the bottom of the actuator. Then, remove the two or three small screws (often 5.5mm) holding it in place.
- Calibrate the New Part: Before mounting the new actuator, plug it in electrically. Turn the car's ignition on and cycle the corresponding control (temperature or mode) to its extremes. This allows the new actuator to 'park' in the correct starting position.
- Install the New Actuator: Mount the new actuator, making sure the drive socket lines up with the door shaft. 🎬 Watch a step-by-step guide for replacing the blend door actuator. Reinstall the screws, reconnect the glove box, and test for proper operation.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Actuator | $26 - $50 |
| New OEM (ACDelco) Actuator | $48 - $125 |
| Shop Labor Cost | $110 - $161 |
| Total Professional Replacement | $233 - $285 |
Frequently Asked Questions
Is there a recall for the A/C actuator on my Buick LeSabre?
No. While this is a very common failure, there have been no safety recalls issued by the NHTSA for the A/C actuators on the 2000-2005 Buick LeSabre.
How do I know which actuator to replace?
Pay attention to the symptoms. If you can't change from hot to cold, it's likely the temperature blend door actuator. If you can't change from floor to dash vents, it's the mode door actuator. The clicking noise will come from the specific actuator that has failed. You can often feel it vibrating if you touch it while it's making noise.
Why does my A/C blow cold on the passenger side but hot on the driver's side?
This is a classic symptom of a failed blend door actuator on a car with dual-zone climate control. The actuator for the driver's side has failed and is stuck directing air through the heater core, while the passenger side continues to work correctly.
Do I need to disconnect the battery to replace the actuator?
It is always a good safety practice to disconnect the battery when working on electrical components. Some guides also suggest that pulling the HVAC fuse for a minute after installation can help the system recalibrate.
Helpful Videos
Technical Specifications
OEM Part Numbers: 52474990 52491801 89018377 52491800 89018378
Plastic housing with internal electric motor and plastic gears. Actuates either temperature blend door or air mode door.
