Cadillac DeVille (2000-2005) Ignition Knock Sensor Replacement Guide
Understanding why this difficult-to-access part requires a careful approach for your Northstar V8.
- The two knock sensors are located under the intake manifold, making replacement a labor-intensive and costly job.
- Due to the high labor cost, always replace both sensors and the wiring harness at the same time.
- Using a premium brand like ACDelco or Delphi is strongly recommended to avoid premature failure and a repeat repair.
- The sensor bolt must be tightened to the correct torque specification (18 lb-ft) or it will not function properly.
Is Your DeVille's Check Engine Light On?
A failing knock sensor is a common reason for the check engine light on the 2000-2005 Cadillac DeVille. The engine's computer relies on these sensors to protect the engine. When a sensor fails, the computer can no longer hear if detonation is occurring. To be safe, it defaults to a very conservative ignition timing map. This results in noticeably reduced engine power, sluggish acceleration, and poor fuel economy. You may also hear a pinging or knocking sound from the engine, especially under load.
The most common trouble codes associated with knock sensor failure are P0327 (Knock Sensor 1 Circuit Low Input) and P0332 (Knock Sensor 2 Circuit Low Input). Since your DeVille has two sensors, you might see one or both codes.
A Labor-Intensive Job
On the 4.6L Northstar V8, the two knock sensors are located in the valley of the engine, underneath the intake manifold. This means the entire intake manifold must be removed to access them. 🎬 See this walkthrough for removing the intake manifold This is not a simple bolt-off, bolt-on job; it is a time-consuming repair that requires significant labor. Because of the high labor cost, doing the job right the first time with high-quality parts is critical.
Choosing the Right Aftermarket Knock Sensor
Given the difficulty of this repair, part quality is extremely important. Using a cheap, unreliable sensor can lead to another failure, meaning you'll have to pay for the same expensive labor all over again. Here’s a breakdown of the available brands.
Premium Aftermarket (Recommended)
- ACDelco: As the original equipment (OE) supplier for General Motors, ACDelco is the benchmark. Choosing an ACDelco sensor ensures you get the same performance and reliability as the factory part. For a hard-to-reach sensor, this is the safest choice.

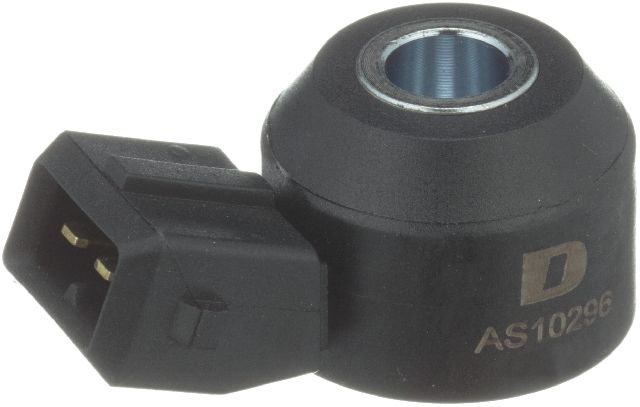

- Delphi: Delphi was a part of GM and is a major OE manufacturer. Their sensors are considered to be of the same quality as ACDelco and are an excellent alternative. Many professional mechanics trust Delphi for critical electronic components.
Quality Aftermarket
- Standard Ignition (SMP): Standard Motor Products is a well-respected aftermarket brand that has been around for a long time. They offer a quality alternative to OE parts, though some forum users have reported mixed results on GM knock sensors.

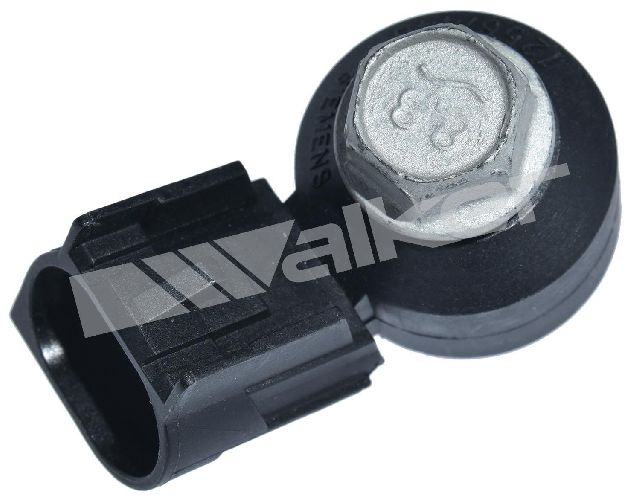

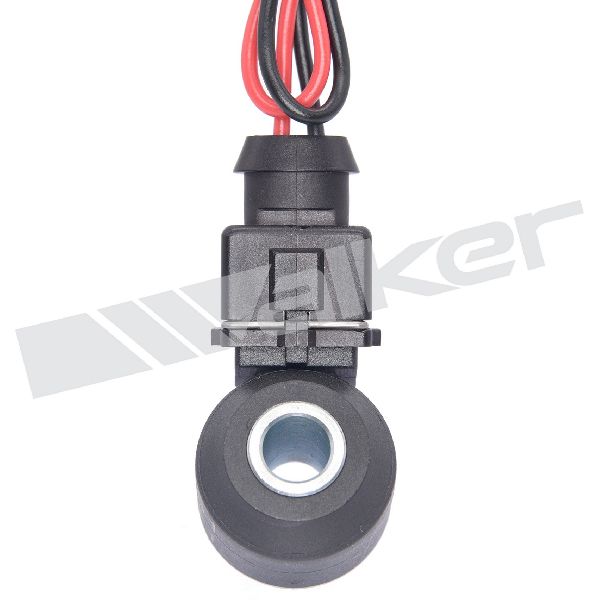

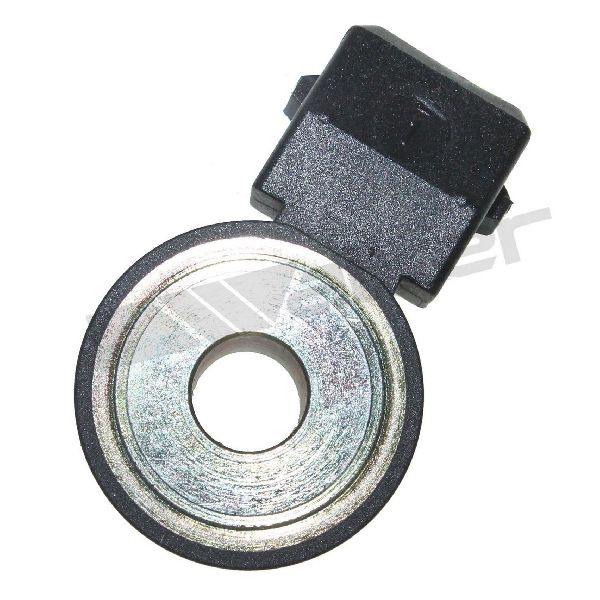

- Walker Products: Walker is another established aftermarket brand known for engine management and emission control parts. They provide a solid, reliable option that meets OE specifications.
Budget-Friendly Options
- Holstein & Global Parts: These brands offer a more budget-conscious solution. While they can perform correctly, for a repair this labor-intensive, most experienced technicians would advise against a budget part. The risk of premature failure and having to repeat the repair often outweighs the initial cost savings.
Pro Tip: Due to the labor involved, always replace both knock sensors at the same time. It is also highly recommended to replace the knock sensor wiring harness, as it can become brittle and cause connection issues.
Frequently Asked Questions
Where are the knock sensors located on a 2000-2005 DeVille?
The two knock sensors are located on the engine block, in the valley between the cylinder heads, underneath the intake manifold assembly.
How many knock sensors does my Cadillac DeVille have?
The 2000-2005 Cadillac DeVille with the 4.6L Northstar V8 engine has two knock sensors.
Should I replace both sensors if only one has failed?
Yes. Because the intake manifold must be removed to access them, the majority of the cost is labor. Replacing both sensors and the wiring harness at the same time is strongly recommended to prevent having to do the job again if the second sensor fails soon after.
Is there a specific torque for the knock sensor bolt?
Yes, and it is critical. The knock sensor must be torqued correctly to function. The common specification is 18 lb-ft (25 N.m). Over or under-tightening the bolt can make the sensor misread vibrations, leading to poor performance or a check engine light.
What happens if I ignore a bad knock sensor?
The engine's computer will go into a safe mode, drastically retarding ignition timing. This leads to a significant loss of power, poor acceleration, and bad gas mileage. While it protects the engine from potential damage, it makes the car unpleasant and inefficient to drive.
🎬 Watch: 7 common signs of a bad knock sensorHelpful Videos
Technical Specifications
OEM Part Numbers: 19434673 21024981 21024729
Location: Under intake manifold. Quantity: 2. Torque Specification: 18 lb-ft (25 N.m).
