Engine Timing Set Guide for the 2000-2005 Chevrolet Blazer 4.3L V6
Everything you need to know before replacing the engine timing set on your Chevrolet Blazer.
- The timing chain on the 4.3L V6 is very durable; do not replace it unless symptoms are confirmed.
- A rattling noise between 1800-2200 RPM is a known issue addressed by a TSB; the fix is often a tensioner, not a full timing set.
- This is a labor-intensive job; replace the water pump and front seals at the same time to save on future labor.
- A P0016 code is a strong indicator of a stretched timing chain that needs to be addressed.
Is Your Blazer's Timing Set Failing?
The timing chain in the 4.3L Vortec engine is known to be very durable, often lasting over 200,000 miles. Unlike timing belts, they don't have a regular replacement schedule. However, wear and tear can eventually cause problems. Here are the common signs that your timing set may need attention:
- Engine Rattle: A rattling or buzzing sound from the front of the engine, especially when warm between 1,800 and 2,200 RPM, is a well-known symptom. This is often related to the balance shaft and has a specific fix.
- Check Engine Light: If the chain stretches, it can throw the camshaft and crankshaft timing out of sync, triggering a Check Engine Light with code P0016. 🎬 Watch this diagnostic case study on the P0016 code.
- Rough Idle and Misfires: Incorrect timing can lead to a rough-running engine, poor acceleration, and engine misfires.
- Metal Shavings in Oil: In severe cases, a worn chain can shed metal particles into the engine oil. You might see this during an oil change.
A Special Note on Engine Rattle (TSB 03-06-01-024C)
If your main symptom is a rattle noise at a specific RPM range (1800-2200), the problem may not be a worn-out chain. GM released a Technical Service Bulletin (TSB) for this exact issue. The noise is often caused by vibrations from the balance shaft. The official fix is to install a timing chain tensioner kit, 🎬 See how to install the chain and balance shaft tensioner. which was not standard on all earlier models. Before you decide to replace the entire timing set, investigate if this TSB applies to your situation, as it's a less expensive repair.
Choosing the Right Aftermarket Timing Set
When you're shopping for a new timing set, you'll find several brands. The original timing gears on some GM engines used plastic teeth, but the 4.3L V6 sets typically use durable iron or steel gears. For a part this critical, quality matters more than saving a few dollars.
Tier 1: Trusted OEM & Aftermarket Brands
These brands have a long history of providing reliable engine components. You can generally trust them for quality and fit that is similar to the original factory part.
- Cloyes: A very popular and respected brand in the aftermarket for timing components. They offer kits that meet or exceed OEM specifications and are a solid choice for this repair.
- Melling: Another top-tier brand known for oil pumps and timing components. Melling parts are trusted by mechanics for stock and performance applications.

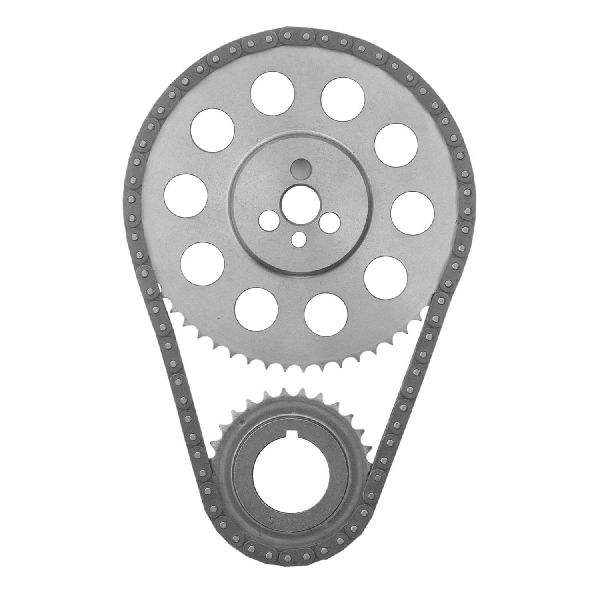

- INA: A major global supplier of parts to automakers, INA is known for high-quality bearings and tensioners. While sometimes associated more with European cars, their components are widely used and respected.
Tier 2: Budget-Friendly Options
These brands offer a lower price point, which can be attractive. However, their long-term durability may not be as proven as the Tier 1 brands.

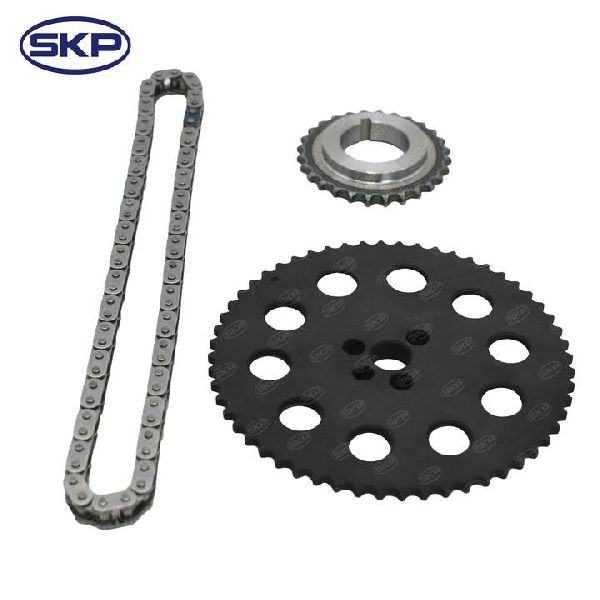

- Skyward: This is a value-focused brand. While it can get your vehicle back on the road for less, there is limited public information or long-term reviews on its performance and reliability. Consider this if budget is the absolute top priority.
Pro Tip: What to Replace at the Same Time
Replacing the timing set is a labor-intensive job that requires removing the water pump and timing cover. To save on future labor costs, it is highly recommended to replace the water pump, timing cover gasket, and front crankshaft seal at the same time. 🎬 Watch a step-by-step teardown of the timing cover and gears. Check your harmonic balancer for any signs of wear or damage as well.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $45 - $75 |
| New OEM Timing Set | $250 - $550 |
| Shop Labor | $600 - $1,800 |
| Total Professional Replacement (Aftermarket Part) | $645 - $1,875 |
Frequently Asked Questions
Is the 2000-2005 Blazer 4.3L an interference engine?
No, the 4.3L V6 is a non-interference engine. This means if the timing chain were to break, the pistons would not hit the valves, preventing catastrophic engine damage. However, a broken chain is extremely rare on these engines.
How long does the original timing chain last?
The original timing chain on a well-maintained 4.3L engine is very robust. It is not uncommon for them to last 200,000 to 300,000 miles or more without any issues. It is not considered a common failure item.
Do I need special tools for this job?
Yes. The most important special tool you will need is a harmonic balancer puller/installer to safely remove and reinstall the crankshaft pulley. You will also need a variety of standard mechanic's tools, sockets, wrenches, and a torque wrench.
Should I buy a kit with a tensioner?
Yes, especially if you are trying to solve the rattling noise described in TSB 03-06-01-024C. Getting a kit that includes a tensioner ensures you have the updated design to prevent future noise issues.
Helpful Videos
Technical Specifications
The 2000-2005 Chevrolet Blazer uses a timing chain and gear set for its 4.3L Vortec V6 engine (VIN W or VIN X). A complete set consists of one camshaft sprocket, one crankshaft sprocket, and one timing chain. Some kits may also include a tensioner, which is recommended.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
