Guide to Engine Timing Chain Kits for the 2000-2005 Chevrolet Impala
Everything owners need to know about replacing the timing chain on their 3.4L or 3.8L V6 Impala.
- Listen for a rattling noise from the engine, which is the most common sign of a worn timing chain.
- Do not ignore symptoms; a broken chain can cause catastrophic engine failure.
- Choose a complete kit from a quality aftermarket brand like Cloyes or INA for a reliable repair.
- Due to the complexity, this repair is best handled by a professional mechanic.
Is Your Impala's Timing Chain Failing?
The V6 engines in the 2000-2005 Chevrolet Impala, both the 3.4L and the 3.8L Series II, use a timing chain instead of a timing belt. While chains are designed to last a long time, they can stretch and wear out, especially at higher mileage. Ignoring the warning signs can lead to poor performance and, in a worst-case scenario, serious engine damage.
Common Symptoms of a Bad Timing Chain:
🎬 Watch this video to learn more about timing chain failure symptoms.- Engine Rattle: A rattling or clattering noise from the front of the engine, especially noticeable at idle or on a cold start, is a classic sign of a loose timing chain.
- Engine Misfires or Rough Idle: A stretched chain can jump a tooth on a gear, throwing off the engine's timing. This can cause the engine to run poorly, shake, or misfire.
- Check Engine Light: The car's computer can detect that the camshaft and crankshaft are out of sync, which will trigger the Check Engine Light. Common related trouble codes include P0016, P0017, P0018, and P0019.
- Metal Shavings in Oil: As the chain and gears wear, tiny metal particles can end up in the engine oil. You or your mechanic might notice these during an oil change.
Can You Drive with a Bad Timing Chain?
It is not recommended. A stretched chain affects performance and fuel economy. If the chain is very loose, it can jump time, causing the engine to run poorly or not at all. If the chain breaks completely, the pistons can hit the valves, leading to catastrophic engine damage that may require a full engine replacement.
🎬 See an example of a Chevy Impala timing chain failure here.Choosing the Right Aftermarket Timing Kit
For an older vehicle like the 2000-2005 Impala, a quality aftermarket timing chain kit offers excellent value compared to expensive OEM parts. The key is to choose a reputable brand. The original timing components on the GM 3.4L and 3.8L V6 engines were generally reliable, but after many years and miles, they are subject to wear. A new aftermarket kit from a trusted manufacturer can meet or even exceed the original specifications.
Brand Quality: Cloyes vs. INA
Cloyes: Cloyes is a well-known and respected North American leader in timing systems for both OEM and the aftermarket. They have a long history, even patenting the first True® Roller timing set in 1970. Many technicians and DIYers trust Cloyes for its quality, which is often considered equal to or better than OEM parts. They are a strong choice for a reliable, stock replacement.
INA: INA is a brand of the German Schaeffler Group, a major global supplier of components to automakers like Audi, Mercedes-Benz, and VW. They are known for producing high-quality, precision-engineered parts that meet OEM standards. An INA kit is an excellent option, providing OE-level quality for the aftermarket. Because of their reputation, be aware that counterfeit INA parts exist, so always buy from a reputable source.
Pro Tip: Replace It All
When replacing a timing chain, it is critical to replace all related components at the same time. A new chain on old, worn sprockets will wear out very quickly. A full kit ensures all parts are fresh and designed to work together. This is not a job you want to do twice.
Cost of Replacing a Timing Chain Kit (2000-2005 Impala)
The cost can vary based on your location and the specific parts chosen. Labor is the most significant expense, as accessing the timing chain requires considerable disassembly of the engine's front.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Chain Kit | $86 - $186 |
| Shop Labor | $800 - $1,500 |
| Total Estimated Cost | $886 - $1,686 |
*Cost estimates are approximate and can vary. Labor costs are based on typical shop rates and book time for the repair.
Frequently Asked Questions
Are there any recalls for the timing chain on the 2000-2005 Impala?
No. Searches of NHTSA data show no recalls specifically for the timing chain on this generation of Impala. There were major recalls for the ignition switch and an issue where engine oil could leak onto the exhaust manifold, but these are unrelated to the timing chain itself.
Is the 3.4L or 3.8L engine more prone to timing chain issues?
Both the 3.4L LA1 and 3.8L L36 V6 engines have reliable timing chain systems for their era. Problems are typically related to high mileage and wear rather than a specific design flaw on either engine. The 3.8L V6 is widely regarded for its durability, but its timing components are not immune to eventual wear.
Can I replace just the timing chain and not the gears?
This is strongly discouraged. The chain and sprocket teeth wear together as a set. Installing a new chain on worn sprockets will cause the new chain to wear out prematurely and can lead to noise and incorrect timing. Always replace the components as a complete kit.
How difficult is it to replace the timing chain myself?
This is an advanced DIY job. It requires removing many components from the front of the engine, including the harmonic balancer (which needs a special puller tool), water pump, and timing cover. It also requires careful attention to setting the engine timing correctly. For most owners, this job is best left to a professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24506090 12568125 24506089 24507720

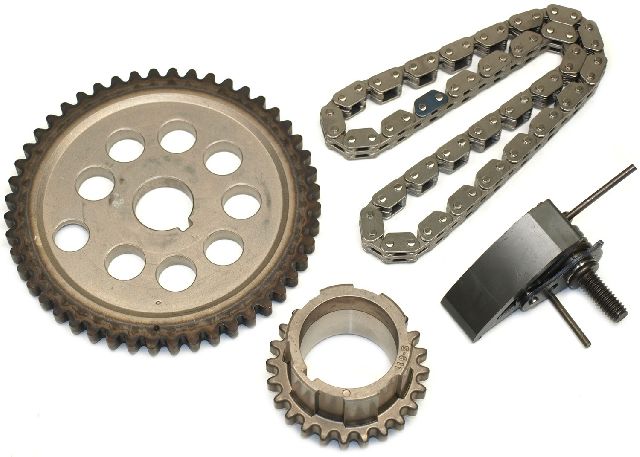

Kit typically includes timing chain, camshaft sprocket, crankshaft sprocket, and damper/tensioner. The chain for the 3.4L V6 has 80 links.
