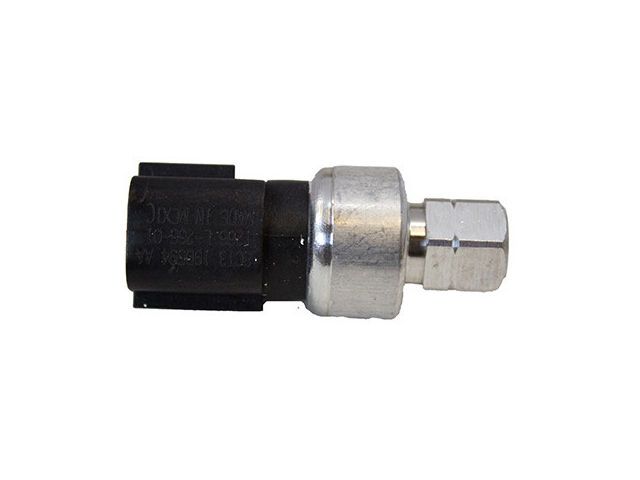

Ford Excursion 2000-2005 A/C Clutch Cycle Switch: Symptoms and Replacement
If your Excursion's A/C is acting up, this small, easy-to-replace switch is a likely culprit.
- A faulty A/C clutch cycle switch is a common, inexpensive, and easy-to-fix cause for A/C problems on a 2000-2005 Excursion.
- Symptoms include intermittent cooling, no cold air, or a rapid clicking sound from the A/C compressor.
- You can replace this switch yourself in minutes without evacuating the A/C system, as it's mounted on a self-sealing Schrader valve.
- Motorcraft is the most reliable brand, while Four Seasons offers a good balance of quality and price for aftermarket options.
Is Your Excursion's A/C Giving You Trouble?
When the air conditioning in a Ford Excursion stops blowing cold, many owners suspect a major failure like the compressor or a refrigerant leak. However, a much smaller and cheaper part is often the cause: the A/C clutch cycle switch. Understanding the symptoms of a failing switch can save you time and money on diagnostics.
Symptoms of a Bad A/C Clutch Cycle Switch
A failing A/C cycle switch on your Excursion will usually give you a few clear signs. Because this switch controls when the compressor runs, its failure directly impacts cooling performance.
- Intermittent Cooling: The A/C might blow cold for a few minutes and then switch to warm air, cycling back and forth unpredictably.
- No Cold Air at All: If the switch fails completely, it may not allow the compressor to turn on at all, resulting in only warm or ambient air from the vents.
- Rapid Clicking Noise: You may hear a distinct, rapid clicking sound from the engine bay. This is the sound of the A/C compressor clutch engaging and disengaging too frequently, a condition known as short cycling.
- A/C Works at High RPMs Only: In some cases, the A/C might seem to work better while driving at highway speeds but fails to cool when idling.
Quick DIY Test
You can perform a simple test to help diagnose the switch. Locate the switch on the A/C accumulator (a metal canister near the firewall on the passenger side). Unplug the electrical connector and use a small piece of wire or a paperclip to jump the two terminals in the connector. If the A/C compressor clutch immediately engages, it's a strong indicator that either the switch has failed or the system is very low on refrigerant. Do not leave the jumper in place for more than a few seconds, as this bypasses the system's safety features.
Choosing the Right Aftermarket Switch
For the 2000-2005 Excursion, you have a few options when it comes to a new A/C clutch cycle switch. While it's a simple part, quality can affect the performance and longevity of your A/C system.
Brand Quality Tiers
- OEM (Motorcraft): Motorcraft is Ford's official parts brand and is the benchmark for fit, quality, and reliability. Choosing Motorcraft ensures you are getting a part that meets the original factory specifications. While it is the most expensive option, it provides the most peace of mind.
- Premium Aftermarket (Four Seasons): Four Seasons is a well-established aftermarket A/C parts manufacturer. Forum discussions show mixed feedback; some users report their parts are identical to Motorcraft, while others have experienced premature failures compared to the original. It is generally considered a reliable mid-grade option that offers good value.
- Standard Aftermarket (Global Parts Distributors): GPD offers budget-friendly A/C components. While they can be a cost-effective solution, the quality can be inconsistent. These parts may be a good choice for an older vehicle or a temporary repair, but carry a higher risk of early failure compared to premium brands.
| Brand Tier | Available Brands | Our Price Range | Quality Assessment |
|---|---|---|---|
| OEM Equivalent | Motorcraft | $35 - $58 | Highest quality and reliability. Recommended for longevity. |
| Premium Aftermarket | Four Seasons | $20 - $35 | Good quality with a strong reputation, but some mixed reviews exist. |
| Standard Aftermarket | Global Parts | $14 - $25 | Budget-friendly option, but may have inconsistent quality and a shorter lifespan. |
Installation Tips
Replacing the A/C clutch cycle switch is a beginner-friendly job that can be done in under 15 minutes with a single wrench.
No Refrigerant Evacuation Needed
The A/C clutch cycle switch on the Ford Excursion is mounted on a Schrader valve, similar to a tire valve. This means you can unscrew the old switch and install the new one without losing the refrigerant from your A/C system. You do not need to take your vehicle to a shop to have the system evacuated and recharged for this specific repair.
- Locate the Switch: Open the hood and find the A/C accumulator. It's a silver or black canister on the passenger side of the engine bay, near the firewall. The switch is screwed into it with an electrical connector on top.
- Disconnect Power: It's always a good practice to disconnect the negative battery terminal before working on electrical components.
- Remove Connector: Unplug the electrical wiring harness from the top of the switch. There is usually a small tab you need to press to release it.
- Unscrew the Old Switch: Using an open-ended wrench (often 5/8" or a similar size), loosen the switch. Once loose, you should be able to unscrew it the rest of the way by hand.
- Install the New Switch: Lightly oil the O-ring on the new switch with some PAG oil or clean refrigerant oil. Screw the new switch in by hand to avoid cross-threading, then tighten it until it is snug with the wrench. Do not overtighten.
- Reconnect and Test: Plug the electrical connector back in until it clicks. Reconnect the battery if you disconnected it. Start your Excursion and turn on the A/C to test its operation.
Frequently Asked Questions (FAQ)
Where is the A/C clutch cycle switch on a 2000-2005 Ford Excursion?
It is located on the A/C accumulator (receiver/drier), which is a metal canister found in the engine compartment, typically on the passenger side near the firewall.
Can I replace the A/C cycle switch myself?
Yes, this is a very simple repair that most DIYers can complete in under 15 minutes with basic hand tools.
Do I need to drain the refrigerant to replace this switch?
No. The switch is mounted on a Schrader valve, which seals the system when the switch is removed. You will not lose your refrigerant charge.
What's the difference between the clutch cycling switch and the high-pressure switch?
The clutch cycling switch is on the low-pressure side and controls normal operation to prevent freezing. The high-pressure cutout switch is on the high-pressure line and is a safety switch that turns the compressor off if pressure gets dangerously high, protecting the system from damage.
Technical Specifications
OEM Part Numbers: YH-37
Connector Type: Rectangle Plug. Location: A/C Accumulator.
