Ford Excursion 2000-2005 Automatic Transmission Oil Cooler Replacement Guide
Your guide to fixing leaks and preventing transmission overheating in your 2000-2005 Ford Excursion.
- Heat is the #1 cause of transmission failure; a working cooler is critical for the heavy-duty Excursion.
- For V10 and 7.3L models, upgrading to a larger 6.0L-style cooler from a brand like Dorman or Mishimoto is the most recommended fix for towing.
- Fluid leaks are a major symptom, but the cooler lines often rust and fail before the cooler itself. Plan to inspect or replace them at the same time.
- Early 2000 models may have an inadequate factory cooling system as noted in Ford's TSB 00-24-4.
Is Your Transmission Overheating?
The automatic transmission in your 2000-2005 Ford Excursion creates a massive amount of heat, especially when towing, hauling, or even just driving in hot weather. The transmission oil cooler is the only thing that protects your transmission from this destructive heat. If the cooler fails, gets clogged, or simply can't keep up, the fluid breaks down and can cause thousands of dollars in damage. For many Excursion models, particularly those with the V10 and 7.3L diesel engines, the original factory cooler is often considered undersized for heavy use, making an upgrade a popular and wise investment.
Symptoms of a Failing Transmission Cooler
A bad transmission cooler can cause serious problems. Watch for these signs:
- Transmission Overheating: A transmission temperature warning light on the dash is a clear sign. The truck may also go into a reduced power "limp mode" to protect itself.
- Fluid Leaks: This is the most common symptom. You may find puddles of reddish-brown automatic transmission fluid under the front of your Excursion. Leaks can come from the cooler itself, but more often they are from the metal lines that connect to it, which are known to rust and corrode.
- Burnt or Dark Fluid: Healthy transmission fluid is bright red and translucent. If you check the dipstick and the fluid is dark brown or black, or has a burnt smell, it's getting too hot.
- Erratic Shifting: When fluid overheats, it loses its ability to lubricate properly. This can cause the transmission to shift harshly, slip out of gear, or hesitate when you accelerate.
Vehicle-Specific Known Issue: TSB 00-24-4
For 2000 Excursions with the 6.8L V10 or 7.3L Diesel engine built before February 6, 2000, Ford issued a Technical Service Bulletin (TSB) for inadequate transmission cooling during heavy use. The procedure involved updating the radiator and cooler lines to a better design. If you have an early model year, you may have the less effective original cooling setup.
Choosing the Right Aftermarket Cooler: Replacement vs. Upgrade
For the Ford Excursion, you have two main choices: a direct-fit standard replacement or a heavy-duty upgrade. Your choice depends on how you use your truck.
Tier 1: Heavy-Duty & Performance Upgrade Coolers
If you tow a trailer, haul heavy loads, or have modified your truck for more power, a standard cooler is not enough. Upgrading is the best way to protect your transmission. The most popular upgrade is installing a larger cooler designed for the 6.0L Powerstroke, which is much larger and more effective than the stock V10/7.3L cooler.
- Mishimoto: This brand specializes in performance cooling. They offer a 37-row cooler that is a direct-fit upgrade and provides a significant drop in transmission temperatures, with users reporting drops of 20-30°F under load. This is considered a top-tier choice for those who work their trucks hard, though it is the most expensive option.
Tier 2: Standard / OEM-Style Replacement Coolers
If you primarily use your Excursion as a daily driver with little to no towing, a standard replacement cooler is a cost-effective solution. These are designed to match the original part's performance.
- Dorman: Dorman offers direct-fit replacement coolers. They also manufacture a popular version of the upgraded 6.0L cooler at a much lower price than performance brands. Many Excursion owners have used the Dorman 6.0L cooler as a budget-friendly upgrade with good results.
- Hayden: A well-known brand in cooling, Hayden offers both direct-fit and universal coolers. While their universal coolers can work, the Excursion community strongly favors the bolt-in 6.0L style coolers for their proven effectiveness and easier installation.
- Four Seasons / Global Parts: These brands provide basic, economy-focused replacements that meet original specifications for a low price. They are a good choice if you are on a tight budget and your truck is not used for heavy work.
Pro Tip: The 6.0L Cooler Upgrade
For any Excursion with a 4R100 transmission (5.4L, 6.8L, 7.3L), the single best modification to ensure transmission longevity is to replace the small factory cooler with a much larger unit from a 2003-2007 Super Duty with a 6.0L engine. Aftermarket versions from brands like Dorman and Mishimoto make this a straightforward, bolt-in project. 🎬 Watch: Step-by-step guide to installing the 6.0L cooler upgrade. You may need simple adapters to connect the larger 1/2-inch ports on the 6.0L cooler to your truck's 3/8-inch lines.
Estimated Replacement Costs
The price for a new automatic transmission oil cooler can vary significantly based on whether you choose a standard replacement or a performance upgrade.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $58 - $150 |
| New Aftermarket (Heavy-Duty Upgrade) | $155 - $470 |
| New OEM (Original Style) | $135 - $200 |
| New OEM (6.0L Upgrade Style) | $318 - $385 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions (FAQ)
Can I install a new transmission cooler myself?
Yes, this is a DIY-friendly job for someone with basic mechanical skills. The cooler is located at the front of the truck, behind the grille. The process involves removing a plastic top cover, unbolting the power steering cooler to move it aside, and then accessing the transmission cooler bolts and lines. The job typically takes 2-3 hours.
Should I replace my transmission cooler lines at the same time?
It is highly recommended. The steel cooler lines on the 2000-2005 Excursion are very prone to rusting through, especially in areas where road salt is used. They often fail before the cooler itself. Since you are already working in the area, replacing the lines with the cooler is a smart move to prevent future leaks.

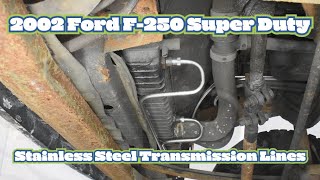

🎬 See how to replace your rusted transmission cooler lines.What is the 4R100 transmission cooler bypass and should I delete it?
Some 4R100 transmissions have a bypass valve designed to help the fluid warm up faster. This valve is known to fail and get stuck, preventing fluid from going to the cooler at all, which causes severe overheating. Many owners choose to install a simple "bypass delete" kit to ensure fluid is always flowing to the cooler for maximum protection.
🎬 Watch: How to install a 4R100 transmission cooler bypass delete.What kind of transmission fluid does my 2000-2005 Excursion need?
Always check your owner's manual to be certain. Generally, the 4R100 transmission uses MERCON® V fluid. The 5R110W transmission (found with the 6.0L diesel) requires MERCON® SP. Using the wrong fluid can cause shifting problems and damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3C3Z-7A095-AA 1C3Z-7A095-AA 5C3Z-7A095-CA 5C3Z-7A095-B
Fitment varies by engine and build date. V10/7.3L models use the 4R100 transmission and have a smaller stock cooler. The 6.0L diesel uses the 5R110W transmission and a larger stock cooler. The 6.0L cooler is a common bolt-in upgrade for 4R100-equipped trucks.
