Ford Excursion 2000-2005 Transmission Torque Converter Clutch Relay Guide
Experiencing transmission shudder or high RPMs on the highway? Your torque converter clutch relay could be the simple fix.
- If you have code P0741, replacing the inexpensive TCC/PCM relay is a smart first troubleshooting step before attempting more costly repairs.
- A bad relay usually causes a complete failure to lock up, while a bad solenoid is more likely to cause intermittent shuddering.
- The relay is located in the interior fuse panel and is a simple, plug-and-play part that a DIYer can replace in minutes.
- Quality aftermarket brands like Standard Ignition are a cost-effective and reliable option for this part.
Understanding TCC Issues in Your Ford Excursion
If you're driving a 2000-2005 Ford Excursion, especially one with the heavy-duty 4R100 transmission, you might eventually face issues with the torque converter lock-up. Common symptoms include a shuddering feeling at highway speeds, like driving over rumble strips, or the engine RPMs staying high instead of dropping down when you're cruising. These problems often point to the torque converter clutch (TCC) system.
Pro Tip: Relay vs. Solenoid

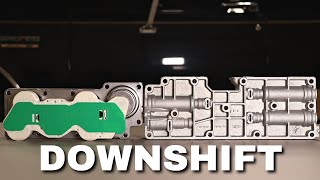

It's important to know the difference between the TCC relay and the TCC solenoid. The relay is an inexpensive, easy-to-replace electrical switch in your fuse box. The solenoid is a more complex valve located inside your transmission pan. While symptoms can be similar, a bad solenoid is a much more common cause of shuddering and intermittent problems. 🎬 See how the 4R100 solenoid pack is replaced. However, because the relay is so cheap and easy to swap, it's often the smartest first step in troubleshooting, especially if your torque converter refuses to lock up at all.
Symptoms of a Failing TCC Relay
A failing TCC relay typically fails in the 'off' position. This means it won't send power to the TCC solenoid, preventing the torque converter from ever locking up. You will likely notice:
- Higher RPMs at Highway Speeds: Your engine will seem to be working harder than usual to maintain speed.
- Poor Fuel Economy: Without lock-up, the transmission is less efficient, leading to more fuel consumption.
- Check Engine Light: A persistent failure in the circuit will often trigger the diagnostic trouble code P0741 (Torque Converter Clutch Circuit Performance or Stuck Off). 🎬 Watch: A quick 3-minute breakdown of the P0741 code.
A failing relay is less likely to cause the intermittent shuddering often associated with a dirty or failing TCC solenoid.
Choosing the Right Aftermarket Relay
For a simple part like a relay, a quality aftermarket brand is a reliable and cost-effective choice. OEM relays are often multi-purpose parts used across many vehicles.
Standard Ignition (Standard Motor Products): As a brand, Standard Ignition produces parts that meet high-quality manufacturing standards (TS16949 and ISO9001 certified). Their relays are known for using quality materials like copper or brass contacts, which helps ensure durability and proper electrical connection. For a part like the TCC relay on your Excursion, a Standard Ignition relay is a dependable option that offers OEM-level performance without the higher dealer price.
| Part Category | Our Price Range | OEM Price Range | Notes |
|---|---|---|---|
| TCC Relay | $18.00 - $26.59 | $17.50 - $29.00 | A quality aftermarket relay offers the best value. |
Installation and Location
Replacing the TCC relay is a simple DIY task that takes only a few minutes.
- Locate the Fuse Panel: The main fuse panel is inside the cabin, below and to the left of the steering wheel. 🎬 Watch: How to locate and swap your Ford PCM relay.
- Identify the Relay: There isn't a relay labeled 'TCC'. The circuit is typically powered by the Powertrain Control Module (PCM) Relay. Check your owner's manual or the fuse panel diagram for the exact location. It is often a standard black or gray 4 or 5-pin relay. Fuse #30 (30A) powers the PCM relay coil.
- Swap the Relay: Pull the old relay straight out and firmly push the new one into its place.
Is it the Relay or Something More?
If replacing the relay does not solve your problem, the issue likely lies with the TCC solenoid, the wiring harness, or internal transmission components. Diagnosing these issues is more complex and may require professional help.
Frequently Asked Questions (FAQ)
Will a bad TCC relay damage my transmission?
Driving for an extended time with a bad relay that prevents lock-up can cause the transmission to run hotter than normal and will decrease fuel efficiency. While it won't cause immediate catastrophic failure, it's best to address the issue promptly to avoid long-term wear.
What is the difference between a P0741 and other transmission codes?
P0741 specifically points to the torque converter clutch circuit being stuck off or having a performance issue. Other codes might point to different solenoids, sensors, or gear ratio errors. P0741 is the most common code associated with a failed TCC relay or solenoid.
Can I just bypass the relay?
No, you should not bypass the relay. It is a critical safety and control component. The PCM needs to control when the torque converter locks and unlocks. Bypassing it could cause the converter to be locked at the wrong times, leading to stalling or dangerous driving conditions.
Is an OEM relay better than an aftermarket one?
For this part, a quality aftermarket relay from a reputable manufacturer like Standard Ignition is perfectly acceptable and offers better value. The technology is simple, and the key is quality materials and manufacturing, which good aftermarket brands provide.
Helpful Videos
Technical Specifications
OEM Part Numbers: FOAZ-14N089-A 5M5Z-14N089-A F8PZ-14N135-EA
Typically a 4 or 5-pin, 12V, 30-40 Amp multi-purpose relay.
