Ford Excursion 2000-2005 Engine Coolant Thermostat Replacement Guide
Everything a Ford Excursion owner needs to know about choosing and replacing a faulty engine coolant thermostat.
- A thermostat fails either stuck open (engine runs too cold) or stuck closed (engine overheats). Overheating is a critical issue.
- For most Excursions, a Motorcraft OEM thermostat is a safe and reliable choice.
- On 7.3L Power Stroke models, inspect the thermostat housing for rust and consider upgrading to a billet aluminum version to prevent future leaks.
- Always use the correct temperature rating for your engine (usually 192-195°F) to ensure proper performance and fuel economy.
Is Your Excursion's Thermostat Failing?
A bad thermostat can cause serious engine problems, from poor performance to major damage. Because the part is inexpensive and relatively easy to replace, it's a common maintenance item. If your Excursion's temperature gauge is acting strange, or if you're having issues with your heat, the thermostat is a good first place to check.
Stuck Open vs. Stuck Closed
A thermostat typically fails in one of two ways. If it sticks open, your engine will take a very long time to warm up, your heater won't blow hot air, and your fuel economy may suffer. If it sticks closed, coolant can't get to the radiator, causing the engine to overheat quickly. This is a much more serious problem that can lead to severe engine damage like a cracked cylinder head.
Choosing the Right Aftermarket Thermostat
When it comes to thermostats for the 2000-2005 Excursion, you have several options. The choice often comes down to brand reputation and specific engine needs, especially for the Power Stroke diesels.
Brand Quality Tiers

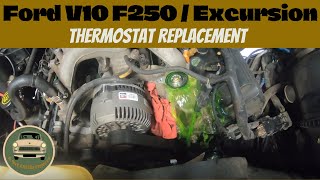

- OEM (Motorcraft): Ford's own brand, Motorcraft, is the original equipment manufacturer. It's the benchmark for fit and performance. For most owners, especially those with gas engines (5.4L V8, 6.8L V10), a Motorcraft thermostat is a reliable, no-hassle choice. 🎬 Watch this step-by-step V10 thermostat replacement guide.
- Premium Aftermarket (Gates, Mishimoto): Gates is a well-respected name in cooling system parts, though some forum users have reported mixed experiences. Mishimoto is known for performance and heavy-duty applications, offering thermostats with different temperature ratings that can be beneficial in hot climates or for towing. These are often a good choice for modified or hard-working Power Stroke engines.
- Standard Aftermarket (Motorad, Calorstat): These brands offer a cost-effective solution that meets basic OEM standards. Motorad even offers a "Fail-Safe" design guaranteed to lock in the open position to prevent overheating. While generally reliable for standard use, some professional mechanics prefer to stick with OEM or premium brands for peace of mind.
A Note on Temperature Ratings
You will see thermostats with different temperature ratings (e.g., 180°F, 195°F, 203°F). For most stock gas and diesel engines, sticking with the factory-specified temperature (typically 192°F-195°F) is best. Using a lower temperature thermostat can cause the engine's computer to stay in "warm-up mode," leading to poor fuel efficiency. Higher temperature thermostats are sometimes used on 7.3L Power Stroke engines to improve efficiency, but this is a topic of debate among owners.

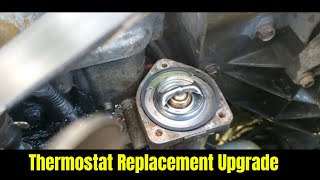

🎬 See how to upgrade your 7.3L to a higher temperature thermostat.Common Ordering Mistakes & Known Issues
- Housing and Seals: Don't forget the gasket or O-ring. Many thermostats come with one, but it's wise to check. The thermostat housing itself, especially the factory stamped steel version on the 7.3L Power Stroke, is known to rust and leak over time. Many owners upgrade to a billet aluminum housing for better durability and sealing.
- Engine-Specific Parts: The 5.4L, 6.8L, 7.3L, and 6.0L engines all use different thermostat designs. Double-check that the part you are ordering fits your specific engine. 🎬 Follow this walkthrough for replacing a 6.0L Power Stroke thermostat.
- Recalls & TSBs: While there are no direct recalls for the thermostat itself on the 2000-2005 Excursion, Ford has issued recalls and TSBs for related cooling system issues that can cause overheating, sometimes involving incorrect PCM software or coolant loss. A functioning thermostat is critical in these situations.
| Part | Price Range |
|---|---|
| New Aftermarket Thermostat | $12.49 - $68.95 |
| New OEM (Motorcraft) Thermostat | $25 - $75 |
| Thermostat Housing (Aftermarket) | $15 - $90 |
Frequently Asked Questions
Do I need to replace the thermostat housing at the same time?
It's not always necessary, but it is highly recommended, especially on the 7.3L Power Stroke. The original stamped steel housings are prone to corrosion and warping, which can cause leaks even with a new thermostat. Inspect the housing carefully for rust or pitting on the sealing surface. Upgrading to a billet aluminum housing is a popular and permanent fix.
What temperature thermostat should I use for my Excursion?
For a stock vehicle, use the OEM-specified temperature, which is typically around 192°F-195°F. Using a thermostat that is too cold can hurt fuel economy, while one that is too hot can put extra stress on the cooling system. Performance thermostats with different ratings are available but should be chosen based on your climate, vehicle modifications, and how you use your truck (e.g., heavy towing).
Is replacing the thermostat a difficult job?
No, for most DIY mechanics, this is a relatively easy job. It usually involves draining some coolant, removing the upper radiator hose from the thermostat housing, unbolting the housing, swapping the thermostat, and reassembling. The entire process typically takes under two hours.
My temperature gauge is fluctuating. Is it the thermostat?
Fluctuating temperature readings are a classic symptom of a failing thermostat that is sticking or opening and closing erratically. It could also indicate air in the cooling system. Since the thermostat is an inexpensive part, it's a good place to start your diagnosis.
Helpful Videos
Technical Specifications
OEM Part Numbers: F6TZ-8575-EA RT-1201 YC2Z-8575-BC RT-1195 3C3Z-8575-AA
Varies by engine. Common temperature ratings are 192°F, 195°F, and 203°F. The 7.3L Power Stroke uses a long-stem thermostat design. The 6.0L Power Stroke thermostat is a single, integrated unit.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
