Ford Excursion Engine Valve Cover Gasket Set Guide (2000-2005)
Stop oil leaks and fix running problems on your Excursion by choosing the right valve cover gasket set for your specific engine.
- The valve cover gasket for diesel Excursions (7.3L/6.0L) is complex and includes critical wiring for injectors and glow plugs.
- Failure on a diesel model can cause severe engine running problems, not just oil leaks.
- For gasoline engines (5.4L/6.8L), the gasket is a simple seal, and the job is much easier.
- When replacing diesel gaskets, it's wise to also inspect the external pigtail connectors for heat damage and consider replacing glow plugs at the same time.
Is Your Excursion Leaking Oil? Understanding the Valve Cover Gasket
A leaking valve cover gasket is a common issue on many vehicles, including the 2000-2005 Ford Excursion. For owners of the gasoline-powered 5.4L V8 and 6.8L V10 models, this is usually a straightforward oil leak. You might notice a burning oil smell as oil drips onto the hot exhaust manifold or see smoke from the engine bay. 🎬 Watch this guide on common signs of a failing gasket. However, for owners of the 7.3L and 6.0L Power Stroke diesel models, the symptoms can be more severe.
Gas vs. Diesel: A Tale of Two Gaskets
It is critical to understand that the valve cover gasket for a gas Excursion is completely different from a diesel one.
- Gasoline Engines (5.4L V8 & 6.8L V10): The gasket is a simple, molded rubber seal. Its only job is to prevent oil leaks. Replacement is relatively simple.

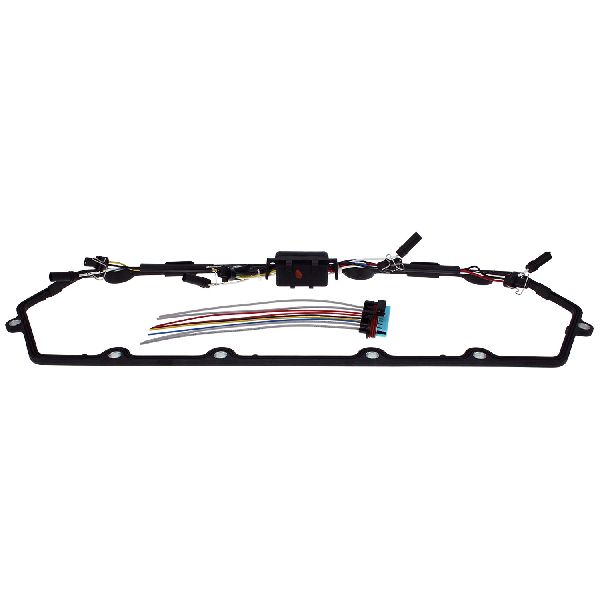

- Diesel Engines (7.3L & 6.0L Power Stroke): This is a much more complex component. The gasket has built-in electrical connectors that pass through the valve cover to power the fuel injectors and glow plugs. This wiring, called the Under Valve Cover Harness (UVCH), is a known failure point. The constant heat and vibration can cause the wiring to become brittle, crack, or short out. This can lead to symptoms like a rough running engine, misfires, loss of power, or even a no-start condition.
Diesel Owners: Don't Ignore Running Issues
If your 7.3L or 6.0L Power Stroke Excursion is running poorly, the valve cover gasket and its integrated harness should be one of the first things you inspect. A bad connection can mimic a failed injector or other serious problems.
Choosing the Right Aftermarket Gasket Set
When shopping for a new aftermarket valve cover gasket, quality matters, especially for the diesel engines. A cheap gasket with a poorly made harness can fail quickly, forcing you to do the job all over again.
- Premium Brands (Reinz, Victor Gaskets, Cometic): Brands like Victor Reinz are often original equipment (OEM) suppliers and are known for their quality and fit. Cometic is a high-performance brand offering durable solutions. For diesel engines, investing in a premium brand is highly recommended to ensure the electrical connections are reliable.

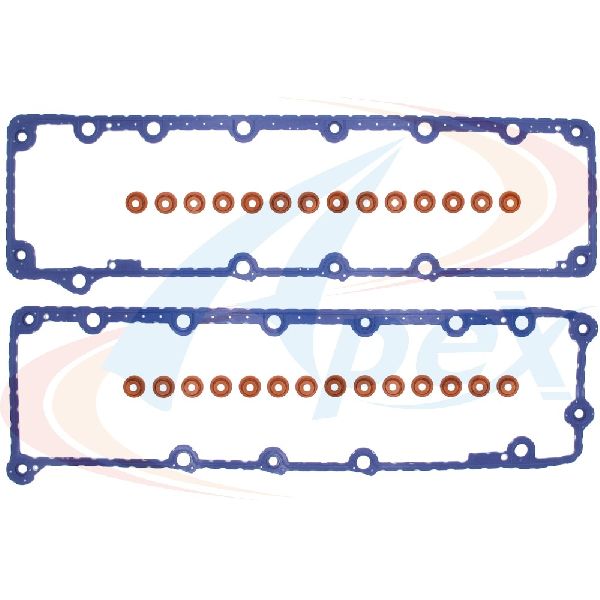

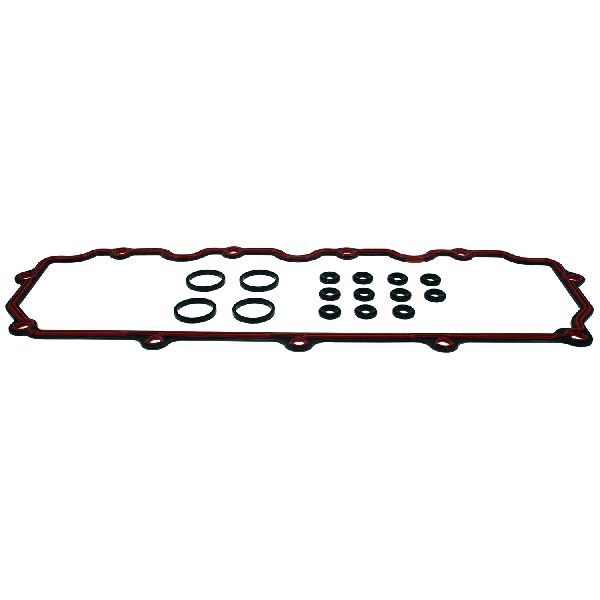

- Standard Brands (Apex, GBR Fuel Injection): These brands offer a more budget-friendly option. They can be a good choice for the simpler gasoline engine gaskets where the part is just a seal. However, for the complex diesel gaskets, carefully consider the warranty and reviews before purchasing.
Pro Tip for 7.3L Owners
When replacing the valve cover gaskets on a 7.3L Power Stroke, many owners perform the "50 cent mod." This involves shimming the electrical connector to ensure a tight fit and prevent it from vibrating loose, which is a common cause of failure. Also, inspect and consider replacing the external pigtail connectors if they show any signs of melting or damage.
🎬 See how to install a 7.3L gasket and internal harness.Typical Replacement Costs
The cost to replace your valve cover gaskets will vary based on your engine and whether you do the work yourself or hire a professional.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Gasket Set (Gas V8/V10) | $28 - $75 |
| Aftermarket Gasket Set (Diesel V8) | 🎬 Follow this step-by-step 6.0 Powerstroke gasket replacement tutorial.$80 - $162 |
| Shop Labor | $250 - $550 |
Frequently Asked Questions
Do I need to replace both gaskets at the same time?
It is highly recommended. The gaskets on both sides of the engine are the same age and have been exposed to the same conditions. If one has failed, the other is likely not far behind. Replacing both at once saves you from having to do the job again in the near future.
What are the symptoms of a bad UVCH on a Power Stroke diesel?
Symptoms include a rough idle, engine misfires, sudden loss of power, sputtering, or a check engine light. A mechanic can perform a "buzz test" to check the injectors, and a weak or silent buzz on a cylinder can point to a bad connection at the valve cover gasket harness.
Can I reuse my old valve cover gaskets?
While some factory gaskets are technically reusable if they are in perfect condition, it is generally not recommended. For the low cost of a new gasket set, it is cheap insurance against having to tear everything apart again to fix a leak. This is especially true for the diesel gaskets, where the electrical connectors are the primary point of failure.
Do I need any special sealants?
Yes, a small amount of RTV sealant is typically required at the corners where the engine's timing cover meets the cylinder head. This ensures a leak-proof seal at these joints.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3C3Z-6584-BA DC2Z-6584-B VS50487 VS50547R
The 2000-2005 Ford Excursion was available with four engine options: a 5.4L Triton V8, a 6.8L Triton V10, a 7.3L Power Stroke turbodiesel V8 (until early 2003), and a 6.0L Power Stroke turbodiesel V8 (from mid-2003 on). The valve cover gaskets are specific to each engine, with the diesel versions incorporating an Under Valve Cover Harness (UVCH) for injector and glow plug operation.
