Ford Excursion Exhaust Manifold Hardware: A Guide for 2000-2005 Models
Hearing a ticking noise from your Excursion's engine? It's likely the exhaust manifold studs.
- Broken exhaust manifold studs are a near-guaranteed problem on 2000-2005 Excursions.
- Always use upgraded stainless steel hardware kits for a permanent repair, as recommended by Ford's own TSB.
- Plan to replace all studs on the manifold at once, not just the broken ones.
- This is a very difficult, labor-intensive repair; the hardware is cheap, but shop labor costs are high due to the difficulty of removing broken studs.
The Ticking Time Bomb: A Common Ford Excursion Problem
If you own a 2000-2005 Ford Excursion with the 5.4L V8 or 6.8L V10 Triton engine, you will likely face broken exhaust manifold studs. This is not a rare issue; it is an extremely common and well-documented problem. The original factory-installed steel studs are prone to failure due to constant expansion and contraction from heat cycles. This process is made worse by corrosion from road salt and moisture, which causes the studs to seize in the aluminum cylinder heads and eventually snap. The studs at the rear of the engine, which experience the most heat, are typically the first to break.
Symptoms of Failing Manifold Hardware

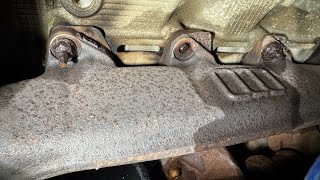

The most common sign of a broken exhaust manifold stud is a distinct ticking or tapping noise coming from the engine bay. 🎬 Watch: Hear the distinct ticking sound of a manifold leak. This sound is most noticeable when the engine is cold and may lessen or disappear as the engine warms up and the metal parts expand to temporarily seal the leak. Other symptoms include:
- A strong smell of exhaust fumes inside or outside the vehicle.
- Visibly broken or missing stud heads upon inspection.
- Black soot or carbon tracking around the exhaust port on the cylinder head.
- Reduced engine performance or fuel economy due to the exhaust leak.
Official Ford Guidance: TSB 09-22-8
Ford issued a Technical Service Bulletin (TSB 09-22-8) that specifically addresses broken exhaust manifold studs on these vehicles. The official recommendation is to replace the exhaust manifold, the gasket, and to install all new stainless steel exhaust manifold studs and nuts. This bulletin confirms that upgrading to better-quality aftermarket hardware is the correct approach.
Choosing the Right Aftermarket Hardware Kit
Given the known flaws of the original parts, you should not use standard OEM-style steel hardware for this repair. Aftermarket kits are designed to provide a permanent solution.
- Material is Key: Look for kits made from stainless steel. Stainless steel offers superior resistance to heat and corrosion compared to the original hardware, which is why Ford recommends it in their TSB. This is the best way to prevent the problem from happening again.
- Brand Tiers:
- Fel-Pro: A highly respected brand in the gasket and sealing industry, Fel-Pro offers hardware kits for this application. Their kits often feature proprietary coatings that resist corrosion and make future removal easier. They are generally considered a top-quality choice for reliability.
- Motormite (Dorman): As one of the largest aftermarket manufacturers, Dorman (under the Motormite brand) provides widely available and affordable hardware kits. These kits are a reliable replacement for the original hardware and often come in stainless steel options that serve as an upgrade.
Pro Tip: Replace Everything
When you perform this repair, replace all the studs and nuts on the manifold, not just the ones that are broken. The remaining original studs are under the same stress and will likely fail soon. It is also wise to have the manifold checked with a straight edge to see if it has warped from the heat of the leak. If it's not perfectly flat, it must be resurfaced or replaced to ensure a proper seal with the new gasket and hardware.
Cost to Replace Exhaust Manifold Hardware
The hardware kit itself is inexpensive. However, the labor is where the real cost lies. This job is notoriously difficult and time-consuming because the studs break off flush with the cylinder head, requiring hours of careful drilling, extracting, or welding 🎬 Watch: A quick demonstration of removing broken manifold studs. to remove.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $21.40 - $42.92 |
| Shop Labor | $800 - $2000+ |
Frequently Asked Questions
Why is this repair so expensive if the part is cheap?
The high cost is almost entirely due to labor. Removing the broken studs is a very difficult and high-risk job. A mechanic may spend several hours on a single broken stud, carefully drilling it out without damaging the aluminum cylinder head. The total time can easily reach 8-10 hours or more for a professional.
Can I do this myself?
This is not a job for a beginner. It requires specialized tools like right-angle drills, stud extractor kits, and potentially a welder. There is a significant risk of breaking a drill bit or extractor in the head, or damaging the cylinder head itself, which would lead to a much more expensive repair. This job should only be attempted by very experienced DIY mechanics 🎬 See a full walkthrough of the Triton stud repair process. who are prepared for a difficult project.
Are stainless steel studs really better?
Yes. Stainless steel is more resistant to the rust and corrosion that causes the original studs to seize and break. Ford's own TSB for this exact problem specifies using stainless steel studs for the repair, confirming it is the superior material for this application.
My manifold is warped. Do I have to replace it?
Yes. If the exhaust manifold is warped, it will not sit flat against the cylinder head, and no amount of tightening the new hardware will create a proper seal. The leak will return immediately. The manifold must be resurfaced by a machine shop or replaced entirely.
Helpful Videos
Technical Specifications
Related TSB: 09-22-8. Torque Specs per TSB: Studs into cylinder head to 71-115 lb-in (8-13 N.m). Nuts onto studs to 204-239 lb-in (23-27 N.m).
