Ford Excursion Horn Replacement Guide for 2000-2005 Models
Diagnosing and replacing a silent, weak, or stuck horn on your 2000-2005 Ford Excursion.
- Always check the 15A fuse (#37) and the horn relay before buying parts.
- The horns are located behind the passenger side fender liner, not behind the grille.
- If the horn and cruise control both failed, the problem is likely the clock spring, not the horn itself.
- Corrosion on the electrical plugs is a common issue due to the horn's location; clean the contacts before replacing the part.
Is Your Excursion's Horn Failing? Common Symptoms
A horn problem on a 2000-2005 Ford Excursion usually shows up in one of four ways. Pinpointing the symptom is the first step to figuring out the fix.
- Horn is Completely Silent: When you press the horn pad, nothing happens. This is the most common failure. The cause could be a simple blown fuse, a bad relay, or a failed horn assembly.
- Horn Sounds Weak or Different: If your Excursion's horn sounds quiet, high-pitched, or just 'off,' it usually means one of the two horns (high or low tone) has failed. The remaining horn is working alone, producing a weaker sound.
- Horn Works Intermittently: The horn works sometimes and fails at other times. This often points to a bad electrical connection, a failing horn relay, or a problem in the steering column's clock spring.
- Horn Stays On Continuously: This can be an alarming issue, sometimes happening randomly in the middle of the night. It is almost always caused by a stuck (shorted) horn relay or a faulty horn switch/pad in the steering wheel.
The Clock Spring Connection
A common failure point on these trucks is the "clock spring" in the steering column. This part allows the steering wheel to turn while maintaining electrical connections for the airbag, cruise control, and horn. If your horn and cruise control stopped working at the same time, and/or your airbag light is on, a bad clock spring is the most likely culprit. 🎬 Watch this step-by-step guide to replacing a faulty clock spring. If only the horn is out, the problem is more likely the fuse, relay, or horn itself.
Choosing the Right Aftermarket Horn
When replacing your Excursion's horn, you have options ranging from budget-friendly direct replacements to performance-oriented upgrades. Since OEM parts can be expensive, a quality aftermarket part offers the best value.
| Brand Tier | Brands | Quality & Performance Assessment |
|---|---|---|
| Premium / Upgrade | Hella | Hella is a well-known German brand famous for high-performance lighting and horns. Their horns are known for being durable and often louder with a more piercing, European tone than stock horns. They are a great choice if you want an upgrade in sound and presence on the road. |
| OE-Quality Replacement | Standard Ignition (SMP) | Standard Motor Products is a highly respected aftermarket manufacturer that often supplies parts to original automakers. Their horns are designed to be direct, reliable replacements that meet or exceed original factory specifications. This is a safe, high-quality choice for restoring original performance. |
| Value / Budget | Replacement | 'Replacement' branded parts are designed to be affordable, direct-fit solutions. They get the job done and meet basic safety requirements at a lower price point. While they may not have the same longevity or robust build quality as premium brands, they are a practical option for budget-conscious repairs. |
DIY Replacement: Locating and Replacing the Horn
Replacing the horn on the 2000-2005 Excursion is a manageable DIY job with basic tools.
Pro Tip: Before you start, check the 15A horn fuse (Fuse #37 in the interior fuse panel) and swap the horn relay with an identical one from the fuse box to see if that solves the problem. This can save you a lot of time and effort.

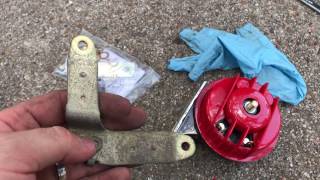

The horns are not behind the grille as on many other trucks. Instead, they are located on the passenger side of the vehicle, inside the fender. 🎬 See how to access and replace the horns behind the fender. Accessing them requires these steps:
- Safely jack up the front passenger side and place the vehicle on a jack stand.
- Remove the passenger side front wheel.
- Remove the plastic fender liner from the wheel well.
- You will now see the horn assembly bolted to the chassis.
- Disconnect the electrical connector. Check the connector for dirt or corrosion; cleaning it might solve the problem.
- Unbolt the old horn assembly and bolt the new one in its place.
- Reconnect the electrical plug, reinstall the fender liner and wheel, and test the new horn.
Frequently Asked Questions (FAQ)
Where is the horn located on a 2000-2005 Ford Excursion?
The dual horn assembly is located behind the passenger side front wheel well. You must remove the wheel and the plastic fender liner to access it.
My horn and cruise control don't work. Is it the horn?
Probably not. When both the horn and cruise control fail at the same time, the most common cause is a faulty clock spring in the steering column. This part contains the wiring for all steering wheel-mounted controls.
Why did my horn go off by itself and not shut off?
This is usually caused by a faulty horn relay that has become stuck in the 'on' position. In rare cases, the horn pad in the steering wheel can short out. The immediate fix is to pull the horn fuse or disconnect the battery.
🎬 Watch how to troubleshoot strange electrical issues and phantom honking.Can I install a louder, custom horn on my Excursion?
Yes. Many owners choose to install louder air horns or aftermarket electric horns like those from Hella for a more powerful sound. These kits often come with their own relay and wiring that can be triggered by the factory horn wire.
Helpful Videos
Technical Specifications
OEM Part Numbers: XC3Z-13832-AA 4C3Z-13832-AA 2W7Z-13800-AA
System Type: Dual Horn (High and Low Tone) Fuse: #37 (15 Amp) in interior fuse panel
