Ford Excursion Vehicle Speed Sensor Guide (2000-2005)
Solve common speedometer, shifting, and ABS light problems on your 2000-2005 Ford Excursion.
- A bad Vehicle Speed Sensor (VSS) is a very common failure on 2000-2005 Ford Excursions.
- Symptoms include a dead speedometer, flashing O/D light, and harsh shifting.
- The faulty sensor is almost always the one located on top of the rear differential, which is very easy to replace.
- A quality aftermarket sensor from a brand like Standard, NGK, or Walker is a cost-effective and reliable solution.
Is Your Excursion's Speedometer Acting Up?
If you own a 2000-2005 Ford Excursion, a faulty Vehicle Speed Sensor (VSS) is a very common issue you might face. This small sensor is responsible for some of the most noticeable problems, including a speedometer that doesn't work, a flashing overdrive light, and harsh shifting. Luckily, it's an inexpensive and easy part to replace yourself.
Where is the Vehicle Speed Sensor Located?
Your Excursion has a few speed sensors, but the one that causes these specific problems is located right on top of the rear differential housing. It's held in place by a single bolt and has an electrical connector plugged into it. This sensor reads a tone ring inside the differential to determine wheel speed.
Known Issues & Recalls
There are no direct recalls for the VSS on the rear differential. However, there was a recall (NHTSA 05V017000) for a speed control deactivation switch on the brake master cylinder for some 2000 model year Fords, which could pose a fire risk. This is a separate part from the VSS discussed here. Always check for open recalls on your specific vehicle.
Choosing the Right Aftermarket VSS
The original Ford sensor is known to fail, so choosing a quality aftermarket replacement is a smart and budget-friendly choice. For a simple part like this, you don't necessarily need to pay extra for an OEM part from the dealer. Brands like Standard Ignition, NGK/NTK, and Walker Products offer reliable, direct-fit replacements that meet or exceed original specifications.
- Standard Ignition (SMP): A long-standing, trusted name in aftermarket electrical parts. Their sensors are widely available and a common choice for this repair.
- NGK / NTK: Well-known for quality ignition parts, their sensor line is also built to high standards and is a dependable option.

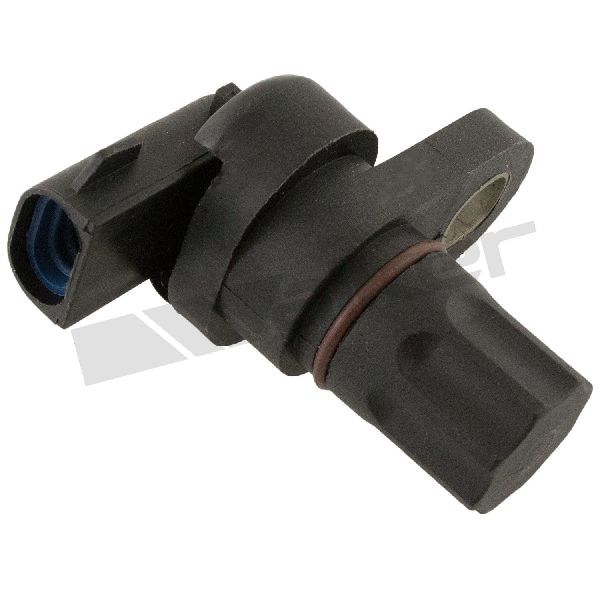

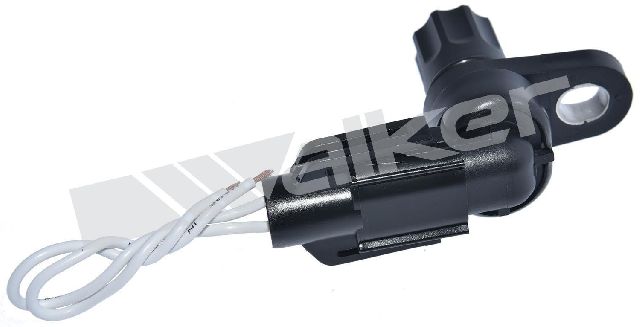

- Walker Products: This brand focuses on engine management and emission components, offering sensors that are engineered to be durable replacements.
Pro Tip: When you remove the old sensor, it will likely be covered in fine metal shavings stuck to its magnetic tip. This is normal. Wipe the area clean before installing the new sensor and apply a light coat of clean motor oil to the new O-ring for a smooth installation.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket VSS | $21 - $54 |
| Shop Labor | $50 - $100 |
| DIY Savings | $50 - $100 |
Frequently Asked Questions
Can I replace the VSS myself?
Yes, this is one of the easiest repairs you can do on your Excursion. It requires only a basic wrench or socket to remove one bolt. The job can be done in less than 30 minutes.
🎬 Watch: Step-by-step VSS replacement guide for your Excursion V10.What is the code for a bad VSS?
A failing vehicle speed sensor will typically trigger the diagnostic trouble code P0500. 🎬 Watch: How to diagnose and fix a flashing overdrive light. This code confirms that the powertrain control module (PCM) has detected a problem with the VSS signal.
Why is my 'O/D OFF' light flashing?
The flashing overdrive light is a common symptom of a bad VSS on these trucks. The transmission computer loses the speed signal and can't determine the correct shift points, so it flashes the light to alert you of a fault.
🎬 See how this simple fix stops the blinking overdrive light.Is it safe to drive with a bad VSS?
You can drive the vehicle, but it's not recommended for long. You will experience poor shifting, which can cause extra wear on your transmission. Your speedometer and odometer won't work, and your ABS may not function correctly in an emergency. It's best to replace the sensor as soon as possible.
Helpful Videos
Technical Specifications
OEM Part Numbers: F85Z9E731AB DY1123
2-Terminal Blade Connector, Mounts on Rear Differential Housing
