A Guide to the 2000-2005 Hyundai Sonata Engine Valve Cover Gasket
Leaking oil from the top of your engine? This guide explains the common failure symptoms and how to choose the right replacement valve cover gasket set for your Sonata.
- Confirm your engine size (2.4L I4 or 2.5L/2.7L V6) before buying, as the gasket sets are different.
- The most common symptoms are a burning oil smell and visible oil leaks on the top of the engine.
- It is highly recommended to get a full kit that includes spark plug tube seals and bolt grommets.
- For best results, apply a small amount of RTV sealant at the corners where the timing cover meets the head.
Is Your Sonata's Valve Cover Gasket Failing?
A bad valve cover gasket is a common oil leak source on many cars, including the 2000-2005 Hyundai Sonata. Over time, the rubber gasket becomes hard and brittle from constant exposure to engine heat. This prevents it from sealing properly, allowing oil to seep out. The most common signs of a leak are a burning oil smell and visible oil on the engine.
Key Symptoms of a Leak
- Burning Oil Smell: This is often the first sign. Oil leaks from the valve cover and drips onto the hot exhaust manifold, where it burns off and creates a distinct, unpleasant smell 🎬 Watch this video to learn more about common leak symptoms. that can enter the car's cabin.
- Visible Oil Leak: You may see oil residue and grime built up on the valve cover itself and on the side of the cylinder head. Because the valve cover is at the top of the engine, the leak will run down the side of the engine block.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, potentially triggering the low oil light on your dashboard. 🎬 See four common signs your valve cover gasket is failing.
- Engine Misfires: If the spark plug tube seals fail, oil can fill the spark plug wells. This can foul the spark plugs and ignition coils, leading to a rough-running engine, misfires, and a check engine light.
Engine Differences Matter
The 2000-2005 Sonata was available with a 2.4L 4-cylinder engine or a V6 engine (2.5L or 2.7L). These engines use different valve cover gaskets. The V6 engine has two valve covers and requires a more extensive gasket set. Always confirm your engine size before ordering parts.
Choosing the Right Aftermarket Gasket Set
When shopping for a new aftermarket valve cover gasket set, you'll find several brands with varying levels of quality and price. For a critical sealing component, it's important to balance cost with reliability.

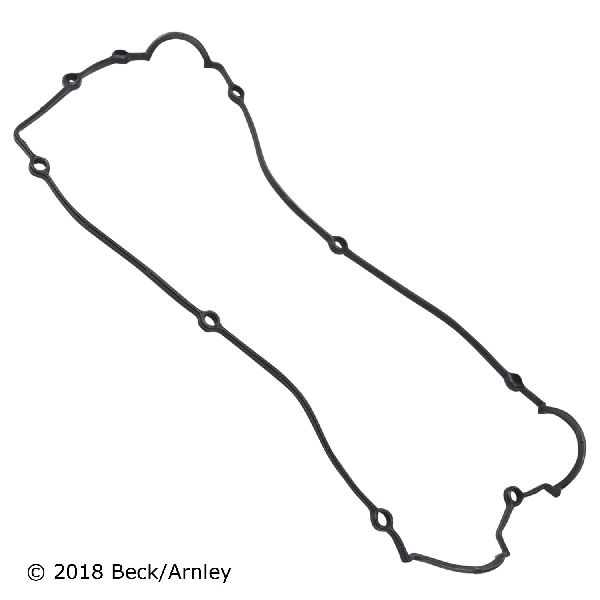

- Premium Brands (Beck Arnley, Victor Reinz): These brands are often considered to be of OEM (Original Equipment Manufacturer) quality. Beck Arnley is known for sourcing parts from OEM suppliers, and Victor Reinz is a major OEM gasket manufacturer itself. Choosing one of these brands provides the highest confidence in fit and longevity, similar to the original part.

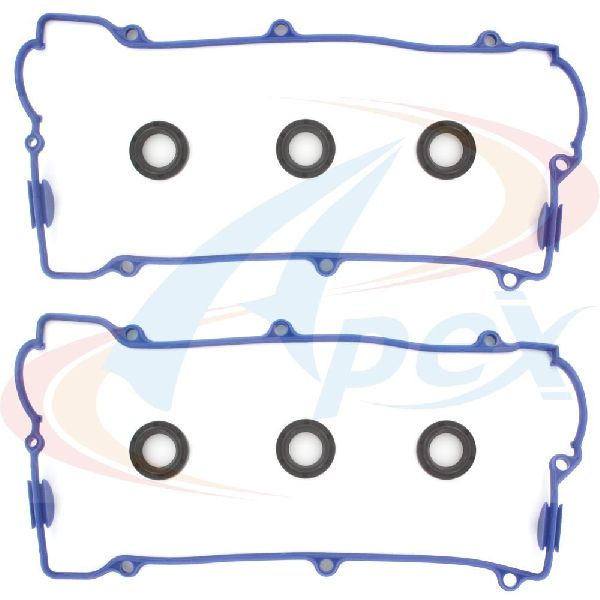

- Standard/Value Brands (DNJ, Apex, DJ Rock): These brands offer a more budget-friendly option. Forum discussions show mixed experiences; some users report success with DNJ parts for stock applications, while others consider them lower-tier. These can be a viable choice for a budget-conscious repair, but may not have the same lifespan as premium brands.
Pro Tip: Many gasket sets for the Sonata include the spark plug tube seals and grommets for the cover bolts. It is highly recommended to replace these at the same time you replace the main gasket to ensure a complete, long-lasting repair.
Replacement Cost
The cost to replace the valve cover gasket on a 2000-2005 Sonata can vary. The parts themselves are not expensive, but labor makes up a significant portion of the cost if you have a shop do the work. The V6 engine will be more expensive due to having two gaskets and more labor time.
| Item | Estimated Cost |
|---|---|
| Aftermarket Gasket Set | $39.80 - $84.91 |
| Shop Labor | $134 - $197 |
| Total Professional Repair | $391 - $466 |
Note: Costs are estimates and can vary by location and specific vehicle condition. The listed professional repair cost from RepairPal includes their own parts pricing.
Frequently Asked Questions
Do I need to use sealant with the new gasket?
Yes, it is recommended to apply a small amount of RTV silicone sealant at the sharp corners or "T" joints where the timing cover meets the cylinder head. This is a common practice to prevent leaks in these specific areas.
Is this a difficult job to do myself?
For a 4-cylinder engine, this is generally considered an easy DIY job for someone with basic mechanical skills and tools. The V6 is more involved as the rear valve cover can be difficult to access. There are many video tutorials available 🎬 Follow this step-by-step guide to replacing a Sonata gasket. that show the process.
Are there any recalls for this issue?
No, there are no specific recalls for the valve cover gasket on the 2000-2005 Hyundai Sonata. Recalls are typically for safety defects, whereas a leaking gasket is considered a maintenance or wear-and-tear item.
Should I replace anything else at the same time?
Yes. While the valve cover is off, it is a perfect time to inspect and replace the spark plugs and ignition coils if they are old or have been contaminated with oil. Also, inspect the PCV (Positive Crankcase Ventilation) valve and its grommet, as these can also become brittle and cause leaks or other engine issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22441-38010 22441-37104
Kit typically includes the main valve cover gasket and spark plug tube seals. Material is typically high-temperature rubber. V6 models require two separate gaskets (left and right bank).
