A Guide to Spark Plugs for the 2000-2005 Nissan Xterra
Keep your Xterra's engine running strong by choosing the right spark plugs for your specific engine.
- For best results, use OEM-equivalent NGK or Denso spark plugs; iridium or platinum types are recommended for longevity.
- Be aware of your model year: 2000-2004 models have different engines and ignition systems than the 2005 model.
- If you have a 2000-2004 V6, be prepared for a difficult and time-consuming replacement of the #6 spark plug.
- Always check the spark plug gap before installation, even if the parts are listed as pre-gapped.
Understanding Your Xterra: A Tale of Two Generations
When shopping for spark plugs for a 2000-2005 Nissan Xterra, it's crucial to know that this period covers two different vehicle generations with different engines.
- 2000-2004 (1st Generation, WD22): These models came with either a 2.4L 4-cylinder (KA24DE) or a 3.3L V6 (VG33E). A supercharged 3.3L V6 (VG33ER) was also an option. These engines use a distributor and spark plug wires.
- 2005 (2nd Generation, N50): This model year marked a major redesign. It uses a larger 4.0L V6 engine (VQ40DE) with a coil-on-plug ignition system, which does not have spark plug wires.
Always confirm your vehicle's year and engine type before purchasing parts.
Symptoms of Failing Spark Plugs
Worn-out spark plugs can make your Xterra feel 'off'. Common signs include:
- Rough Idling: Your vehicle may shake or vibrate when stopped.
- Engine Misfires: The engine may sputter or stumble, especially under acceleration. This often triggers the Check Engine Light, with codes like P0300 (random misfire) or P0301-P0306 (for a specific cylinder). A flashing Check Engine Light signals a severe misfire that requires immediate attention.
- Poor Acceleration: The vehicle may feel sluggish or slow to respond when you press the gas pedal.
- Reduced Fuel Economy: Inefficient combustion means you'll be making more trips to the gas station.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over, especially in cold weather.
A Known Issue on 2000-2004 V6 Models

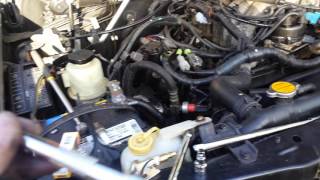

Owners of the 3.3L V6 Xterra (VG33E) should be aware that the spark plug for cylinder #6 (the rearmost plug on the passenger side) is notoriously difficult to access. It is located deep against the firewall, partially under the intake assembly. While some mechanics remove the upper intake manifold for access, others use a specific combination of long extensions and swivel sockets. This single plug can significantly increase the time and labor cost of the job.
Choosing the Right Aftermarket Spark Plugs
While many brands are available, owner feedback strongly suggests that sticking close to the original equipment (OE) manufacturer provides the best results for the Xterra.
- Top Tier (OEM/OE-Equivalent): NGK is widely considered the original equipment brand for Nissan. Denso is another highly recommended Japanese brand known for its quality. For trouble-free performance, choosing NGK or Denso platinum or iridium plugs is your safest bet.
- Mid-Grade: Brands like Bosch and Champion offer a balance of performance and price. They are generally reliable, though most enthusiasts and experienced mechanics point back to NGK for these specific Nissan engines.
- Economy: While there are many budget-friendly options, they may not offer the same longevity or performance. Some owners have reported issues with brands like Autolite in their Xterras. Given the difficult labor on V6 models, investing in a high-quality plug that lasts is often the most cost-effective choice in the long run.
Pro Tip: Check the Gap
Even if spark plugs are advertised as 'pre-gapped', it's wise to double-check the gap with a feeler gauge or gapping tool before installation. The gap measurement can be affected during shipping. An incorrect gap can lead to misfires and poor performance.
Cost to Replace Nissan Xterra Spark Plugs
| Category | Estimated Cost |
|---|---|
| New Aftermarket Spark Plugs (per plug) | $3.50 - $21.26 |
| Shop Labor (4-Cylinder) | $75 - $150 |
| Shop Labor (2000-2004 V6) | $175 - $400+ (cost varies widely due to the #6 plug) |
| Shop Labor (2005 V6) | $150 - $250 |
Note: Costs are estimates and can vary based on your location, the specific parts chosen, and the repair shop. The 2000-2004 V6 labor cost is higher due to the difficult-to-access #6 cylinder.
Frequently Asked Questions
How often should I replace the spark plugs on my Xterra?
For platinum or iridium plugs, which are recommended, the typical replacement interval is between 60,000 and 100,000 miles. However, you should always consult your owner's manual for the specific interval for your engine. If you use standard copper plugs, the interval is much shorter, around 30,000 miles.
What is the difference between platinum and iridium spark plugs?
Iridium and platinum are precious metals used to coat the spark plug's electrodes. They are much harder and have higher melting points than the nickel alloy used in standard copper plugs. This makes them last significantly longer and provide a more consistent spark, which improves fuel efficiency and performance. Iridium is generally considered superior to platinum and has a longer lifespan.
Do I need to replace my spark plug wires or ignition coils at the same time?
For 2000-2004 models with spark plug wires, it is highly recommended to replace the wires at the same time as the plugs. Wires degrade over time and can cause similar issues to bad plugs. For the 2005 model with coil-on-plug ignition, you only need to replace a coil if it has failed.
Is there a recall on Xterra spark plugs?
There are no specific recalls for spark plugs on the 2000-2005 Nissan Xterra. However, a recall for the 2005-2006 models involved an ECM relay that could cause engine stalling, a symptom that could be mistaken for a spark plug issue.

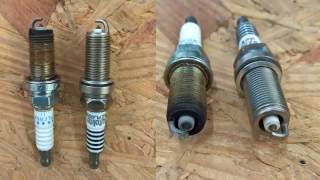

Helpful Videos
Technical Specifications
OEM Part Numbers: 22401-5M015 22401-8H515 22401-JA01B 22401-7B006 22401-97E66
Engine-specific. The 2000-2004 3.3L V6 (VG33E) often uses NGK platinum plugs. The 2000-2004 2.4L 4-cyl (KA24DE) uses different plugs. The 2005 4.0L V6 (VQ40DE) uses double platinum tipped plugs, with a recommended gap of 1.1mm (0.043 in). Always verify the correct part number for your specific engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
