Electric Fuel Pump Guide for 2000-2005 Subaru Outback
Everything you need to know before replacing the fuel pump on your second-generation Outback.
- Symptoms like engine sputtering, hard starting, and a whining noise from the rear seat area point to a failing fuel pump.
- For best results and longevity, choose an OEM-equivalent brand like Denso, Bosch, or Delphi.
- Replacing the entire fuel pump assembly is easier and more reliable than replacing just the pump motor.
- The job is DIY-friendly, with access under the rear seat, and can save you hundreds in labor costs.
Is Your Outback's Fuel Pump Failing?
A failing fuel pump in a 2000-2005 Subaru Outback will give you some clear warning signs. The most common issues are related to the engine not getting enough fuel. You might notice your engine sputtering, especially at higher speeds or when going uphill. Another frequent symptom is difficulty starting the engine; you may have to crank it several times before it finally turns over. A distinct whining or buzzing noise from the rear of the car, near the fuel tank, is also a classic sign of a pump that's working too hard and about to fail. In severe cases, the engine may stall unexpectedly or lose all power while you're driving.
🎬 Watch this guide on diagnosing and replacing a failing pump.Critical Failure Warning
If your engine stalls or refuses to start, the fuel pump may have failed completely. This is a serious issue that will leave you stranded. Do not ignore the early warning signs like sputtering or whining noises.
Choosing the Right Aftermarket Fuel Pump
When it's time to replace your Outback's fuel pump, you'll find several aftermarket options. Not all are created equal, but you don't necessarily need to buy the most expensive one. The brands available can be grouped into quality tiers.
Tier 1: OEM-Equivalent Brands
- Denso: Denso is a well-regarded manufacturer and often the original equipment (OE) supplier for Japanese vehicles like Subaru. Choosing a Denso pump is the closest you can get to the original part's quality and reliability without paying dealership prices. They are known for quiet operation and durability.
- Bosch: Bosch is another top-tier brand with a strong reputation for quality fuel system components. They are a trusted OEM supplier for many car manufacturers and a solid choice for reliability.
- Delphi: Delphi is a major OEM supplier and a very reputable aftermarket brand. They offer a good balance of quality, performance, and price, making them a popular choice for mechanics.
Tier 2: Quality Aftermarket Brands
- GMB: GMB produces a wide range of automotive parts and offers fuel pumps built to OE specifications. While some online forum users have reported mixed experiences with their mechanical pumps for older vehicles, their electric pumps for modern applications are generally considered a reliable budget-friendly option.
- US Motor Works: This brand has a solid reputation for providing good value. Their pumps are designed to meet OE specs and often include quality components like stainless steel construction and improved wiring. They are a dependable choice if you're looking for a balance between cost and reliability.
Tier 3: Economy Brands
- AutoBest: AutoBest is a budget-focused brand. While they offer a cost-effective solution and often come with a lifetime warranty, some users report mixed results in terms of longevity compared to higher-tier brands. They can be a viable option if the budget is the primary concern, but be aware of potential quality differences.
Pro Tip: Pump vs. Assembly
You can buy just the fuel pump motor or the entire fuel pump assembly (which includes the pump, sending unit, and filter). For the 2000-2005 Outback, the job is much easier if you replace the entire assembly. It's a direct drop-in replacement and avoids the tricky work of disassembling the old unit.

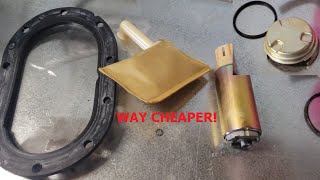

🎬 See how to install a complete fuel pump assembly.Cost of Replacing Your Fuel Pump
The cost can vary significantly based on the brand you choose and whether you do the work yourself. This job is considered DIY-friendly for those with some mechanical experience.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump | $40 - $175 |
| New OEM Fuel Pump Assembly | $350 - $500+ |
| Shop Labor | $150 - $300 |
Frequently Asked Questions
Is there a recall on the 2000-2005 Outback fuel pump?
No. While Subaru has issued recalls for fuel pumps on much newer models (around 2019), there are no active recalls or widespread TSBs (Technical Service Bulletins) for fuel pump failure on the 2000-2005 Subaru Outback. Any failure on these vehicles is typically due to age and wear.
Should I replace the fuel filter at the same time?
Yes. It is highly recommended. A clogged fuel filter can restrict fuel flow and cause a new pump to work harder and fail prematurely. On many 2000-2005 Outbacks, the fuel filter is part of the pump assembly inside the tank, so replacing the whole assembly takes care of this automatically.
How difficult is it to replace the fuel pump myself?
For a moderately experienced DIYer, this is a manageable job. The fuel pump is accessed through a panel under the rear passenger-side seat, so you don't need to drop the entire fuel tank. The main challenges are safely handling fuel and disconnecting the lines without breaking them. Expect it to take 1-2 hours.
🎬 Watch a step-by-step walkthrough of the testing and replacement process.Why do fuel pumps fail?
The most common causes of failure are age and wear. Consistently driving with a very low fuel level can also cause the pump to overheat, as it uses the surrounding gasoline to stay cool. Lastly, dirt and debris in the fuel tank can clog the pump and cause it to burn out.
Helpful Videos
Technical Specifications
OEM Part Numbers: 42021AE03B 42021AE03A 42021AE07A 42021AE07B
The fuel pump is located in the fuel tank and is accessible from an access panel under the rear passenger-side seat cushion. The assembly includes the pump, fuel level sending unit, and an integrated fuel filter/strainer.
