Your Guide to the 2000-2005 Subaru Outback Throttle Position Sensor
Solve common hesitation, rough idle, and erratic shifting issues by understanding this critical sensor.
- Symptoms of a bad TPS often include engine hesitation and harsh automatic transmission shifting.
- When replacing, you must calibrate the new sensor with a multimeter to 0.5V for it to function correctly.
- For reliability, choose a quality aftermarket brand like NGK or Standard Ignition over the cheapest options.
- If you own a 2005 model, visually confirm your sensor is replaceable before buying, as some are integrated into the throttle body.
Is Your Outback's Throttle Position Sensor Failing?
When the TPS starts to wear out, it sends incorrect or erratic signals to your car's computer. This can cause a wide range of frustrating drivability problems. Because this sensor is involved in both engine and transmission control, the symptoms can sometimes be confusing.
🎬 Watch: A visual guide to common bad TPS symptoms.Key Symptoms of a Bad TPS on a 2000-2005 Outback:
- Check Engine Light: The most common sign is an illuminated Check Engine Light on your dashboard.
- Hesitation and Poor Acceleration: The car may feel sluggish, stumble, or lag when you press the gas pedal.
- Rough or Unstable Idle: The engine may idle too high, too low, or surge up and down.
- Erratic Automatic Shifting: Your automatic transmission may shift harshly, at the wrong times, or get stuck in 'limp mode', which often triggers the 'AT OIL TEMP' light to flash.
- Bucking and Jerking: The car might buck or jerk while driving, especially during acceleration.
- Engine Stalling: In severe cases, the engine may stall unexpectedly when you come to a stop.
A Critical Note for 2005 Outback Owners
Be aware that some 2005 Subaru Outback models are equipped with an electronic throttle body. On these vehicles, the throttle position sensor is integrated into the throttle body assembly and is not a separately replaceable part. Before ordering, visually inspect your throttle body to confirm if your sensor is a separate, bolt-on component.
Choosing the Right Aftermarket TPS: Brand Quality Matters
For electronic parts on Japanese vehicles, brand quality is extremely important. While a cheap sensor might seem tempting, it can fail quickly and leave you with the same problems. Based on owner experiences and mechanic recommendations, here's a breakdown of available brands.
- Premium Brands (OEM Quality): NGK is a highly respected brand for Japanese vehicle sensors and ignition components. They are often an Original Equipment Manufacturer (OEM) for many carmakers. Choosing a brand like NGK gives you the best chance of getting a part that performs like the original factory sensor.
- Quality Aftermarket: Brands like Standard Ignition (SMP) and Walker Products are well-known in the aftermarket and generally offer a good balance of quality and price. They are a reliable choice for owners looking for a solid repair without the OEM price tag.
- Rebuilder/Value Brands: Beck Arnley is known for sourcing parts from various manufacturers, sometimes even OEM suppliers. However, the quality can be inconsistent. Other brands like Global Parts and Replacement fall into the economy tier. While they are the most affordable, forum discussions often warn that these cheaper sensors have a higher failure rate.
Pro Tip: Calibration is Key
When installing a new TPS on these Outbacks, it's not just plug-and-play. The sensor must be properly calibrated. This involves rotating the sensor until a specific voltage (typically 0.50 volts at closed throttle) is achieved, which you measure with a multimeter. 🎬 Watch: How to properly calibrate your new sensor. Skipping this step will result in continued performance issues even with a new part.
Estimated Cost for TPS Replacement (2000-2005 Subaru Outback)
| Item | Estimated Cost |
|---|---|
| New OEM Sensor | $115 - $325 |
| New Aftermarket Sensor | $23 - $190 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Can I replace the throttle position sensor myself?
Yes, this is a DIY-feasible job for someone with basic tools. The sensor is usually held on by two screws and is easy to access on the throttle body. 🎬 See this walkthrough for replacing the sensor yourself. However, you MUST have a multimeter to perform the final calibration step to ensure it works correctly.
What are the common trouble codes for a bad TPS?
A failing TPS will often trigger diagnostic trouble codes (DTCs). Common codes include P0120, P0121, P0122, P0123, and P0124, all of which point to a fault in the throttle position sensor circuit.
Is there a recall on the 2000-2005 Outback TPS?
No, there are no specific NHTSA safety recalls for the throttle position sensor on the 2000-2005 Subaru Outback. However, a Technical Service Bulletin (TSB) was noted for the 3.0L H6 engine models (2001-2004) for similar issues, suggesting the TPS was a known problem area.
Should I buy an OEM or Aftermarket TPS?
For critical electronic sensors, an OEM part is always a safe bet but comes at a high cost. A high-quality aftermarket brand like NGK or Standard Ignition offers a reliable alternative that often meets or exceeds OEM specifications for a fraction of the price. It is generally recommended to avoid the cheapest 'white box' parts, as they have a reputation for early failure.
Helpful Videos
Technical Specifications

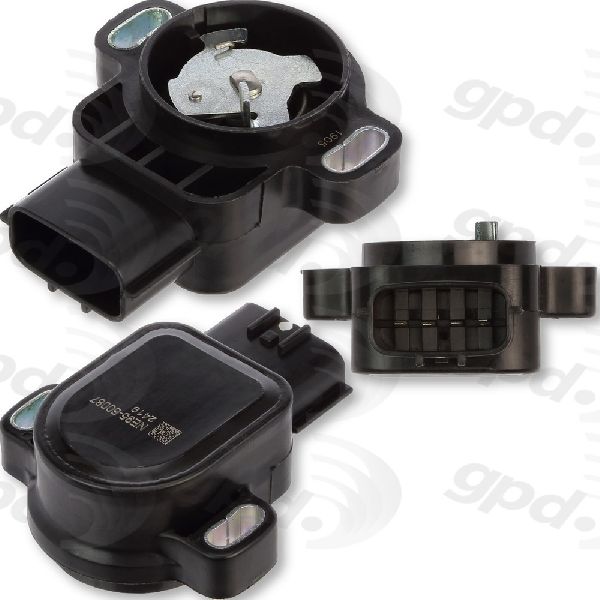

OEM Part Numbers: 22633AA210 22633AA140 22633AA151 22633AA15B
Typically a 3-prong or 4-prong blade connector, bolts directly to the side of the throttle body.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
