BMW X5 Horn Replacement and Troubleshooting Guide (2000-2006)
Is your E53 X5 horn silent or weak? This guide covers common failures and how to choose the right replacement part.
- The E53 X5 uses a dual-horn system; a weak sound usually means one of the two has failed.
- Before buying parts, check the horn fuse in the glove box and consider testing the horn relay.
- Hella is an OEM-quality brand and a highly recommended choice for this vehicle.
- Accessing the horns, located behind the driver's side headlight, is the hardest part of the job and may require front bumper removal.
Signs of a Failing Horn in Your X5
A problem with your X5's horn system doesn't always mean the horn itself is broken. The issue could be the horn, the fuse, the relay, or the wiring. Here are the common symptoms you might experience:
- Weak or Altered Horn Sound: If your horn sounds quiet, high-pitched, or just 'off,' it usually means one of the two horns (high or low tone) has failed. The remaining horn is still working, but the sound is incomplete.
- No Sound at All: Complete silence when you press the horn button points to a few possible culprits. It could be a blown fuse, a bad horn relay, a problem with the switch in the steering wheel, or both horns failing simultaneously.
- Horn Works Intermittently: A horn that works one minute and not the next often points to a loose electrical connection, corrosion on the terminals, or a failing relay.
- Horn is Stuck On: A continuously blowing horn can be caused by a stuck horn button or a short-circuited relay. If this happens, you may need to disconnect the battery to silence it while you diagnose the problem.
Diagnosing the Problem First
Before buying a new horn, it's wise to check the simple things first. The horn fuse is located in the glove box fuse panel. The horn relay is located behind this panel, which requires removing the glove box for access. Many owners test the horns directly by connecting them to a 12V battery to confirm they are the source of the failure.
🎬 See how to test your horn to confirm it's dead.Choosing the Right Aftermarket Horn
For the 2000-2006 X5, you have several good aftermarket options that can restore your vehicle's sound without the high cost of dealer parts. The key is understanding the quality differences.
Brand Tiers

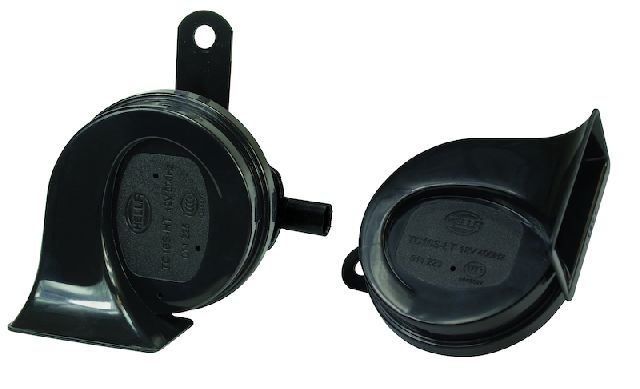

- Tier 1: OEM-Equivalent (Hella): Hella is a well-regarded German brand that often manufactures parts for BMW directly. Choosing a Hella horn is the closest you can get to the original part's quality, fit, and sound. They are known for their durability and correct tone, making them a top choice for a direct replacement.
- Tier 2: Quality Aftermarket (Standard Ignition): Standard Ignition is a reputable aftermarket manufacturer that produces reliable replacement parts. While they may not be the original supplier to BMW, their products offer a good balance of quality and price, meeting or exceeding original specifications.
- Tier 3: Value-Oriented (Replacement): 'Replacement' branded parts are the most affordable option. They are designed to be a functional, direct-fit substitute for the original horn. While they will get the job done, they may not have the same longevity or precise sound tone as a Hella horn.
| Brand Tier | Example Brand | Price Range (Single Horn) |
|---|---|---|
| OEM-Equivalent | Hella | $55 - $78 |
| Quality Aftermarket | Standard Ignition | $45 - $65 |
| Value-Oriented | Replacement | $36 - $50 |
Pro Tip: Replace in Pairs?
The high and low-tone horns are sold individually. If one has failed due to age, the other may not be far behind. To ensure a balanced, correct sound and to avoid doing the job twice, many mechanics recommend replacing both horns at the same time.
Frequently Asked Questions (FAQ)
Where are the horns located on the 2000-2006 X5?
Both the high-tone and low-tone horns are located together in the front, driver's side of the vehicle, down low behind the headlight and inside the wheelhouse area.
How difficult is it to replace the horn?
The replacement itself is simple (unplug, unbolt, replace), but access is the main challenge. Some owners manage by removing the driver's side headlight for more room. However, the most common and thorough method is to remove the front bumper cover to gain clear access to the horns. This makes the job more time-consuming.
🎬 Watch this quick DIY guide to replacing your X5 horn.My horn doesn't work. Could it be the fuse?
Yes. A blown fuse is a common reason for a horn to stop working completely. The horn fuse is located in the fuse panel inside the glove compartment. Check this before ordering any parts.
🎬 Watch this video to find your X5's fuse and relay locations.Why does my X5 have two different horns?
The E53 X5 uses a dual-tone system with a high-pitch (high-tone) and low-pitch (low-tone) horn. When sounded together, they create a louder, more attention-grabbing sound than a single horn could. If your horn sounds weak or strange, it's likely that only one of the two is working.
Are there any recalls for the BMW X5 horn?
No, there are no specific recalls for the horn on the 2000-2006 BMW X5. Some Technical Service Bulletins (TSBs) exist for newer models regarding horn failure from water entry, which is a common cause of failure across all vehicles.
Helpful Videos
Technical Specifications
OEM Part Numbers: 61338387342 61337300976 61338387347 61337300975
System Type: Dual-Tone (High and Low Frequency)
