A Deep Dive into the Starter for the 2000-2006 BMW X5 (E53)
Don't get stranded—here's what you need to know when your X5 starter begins to fail.
- The starter replacement is very different and difficult for both the 6-cylinder (under intake) and V8 (under exhaust) engines.
- Bosch is the OEM supplier; choosing a new Bosch starter is the most reliable option to avoid repeating the labor-intensive repair.
- Always test the battery and its connections first, as a weak battery has symptoms very similar to a failing starter.
- No recalls or specific TSBs related to starter failure exist for the 2000-2006 E53 X5.
Is Your BMW X5 Starter Failing?
A failing starter on the first-generation BMW X5 (E53) often gives warning signs before it leaves you stranded. Because a weak battery can cause similar issues, it's important to check your battery's health first. If the battery is good, look for these common symptoms of a failing starter.
- Single, Loud Click: You turn the key and hear one sharp click, but the engine doesn't crank. This often points to a bad starter solenoid.
- Whirring or Grinding Noise: You might hear a high-pitched spinning or grinding sound when you try to start the engine, but the engine itself isn't turning over. This usually means the starter motor is working, but the gear isn't engaging with the engine's flywheel.
- Slow or Labored Cranking: If the engine turns over much slower than usual, like it's struggling, the starter motor could be wearing out and losing power.
- Intermittent Starting: The car starts perfectly one day but refuses to crank the next. This unpredictability is a classic sign of a starter on its way out.
- No Sound at All: You turn the key and get nothing—no click, no crank, no sound. While this can also be a battery or ignition switch issue, a completely dead starter is a likely cause.
Critical: V8 vs. 6-Cylinder Starter Replacement is Very Different
Before buying a starter, you must know which engine your X5 has. The location of the starter and the difficulty of the replacement are completely different between the 6-cylinder and V8 models.
- For the 3.0L 6-Cylinder (I6): The starter is located deep under the intake manifold. Replacing it is a very involved job that requires removing the entire intake manifold from the top of the engine. This is a 5+ hour job for an experienced mechanic.
- For the 4.4L or 4.8L V8: The starter is located on the right side of the engine, tucked below the exhaust manifold. While you don't have to remove the intake, access is extremely tight, making it a challenging 3-4 hour job.
This difference in labor is the biggest factor in your total replacement cost and why choosing a reliable part is so important.
Choosing the Right Aftermarket Starter for Your X5
For a labor-intensive job like this, part quality matters. You don't want to do this job twice. Here’s a breakdown of the available brands.
Tier 1: OEM-Quality Replacement

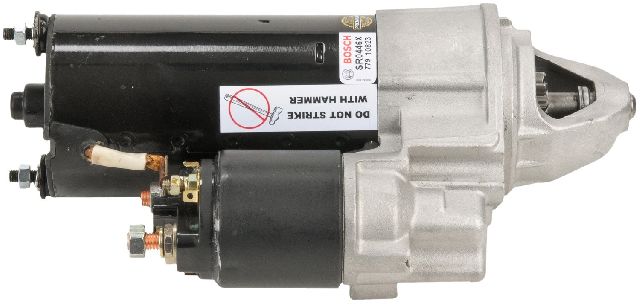

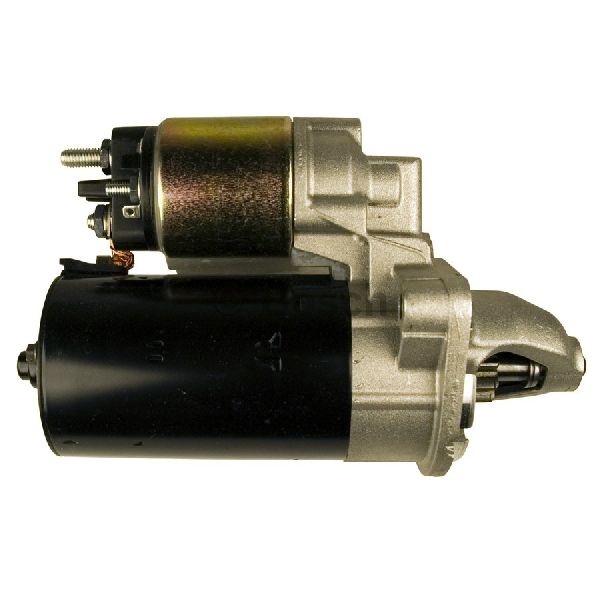

- Bosch: Bosch was the Original Equipment Manufacturer (OEM) for many parts on your X5, including the starter. Choosing a new Bosch starter is the safest bet for fit, performance, and longevity. It is essentially the same part you would get from a BMW dealer, but without the high price tag.
Tier 2: Value-Oriented Brands

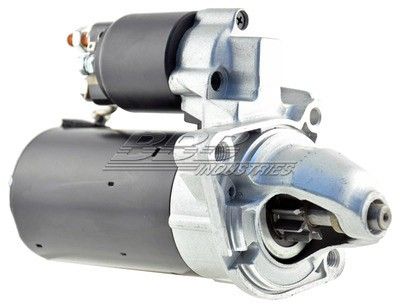

- WAI Global, Remy, BBB Industries: These are well-known aftermarket brands that offer a more budget-friendly option. They produce new and remanufactured starters that can provide good value. However, quality can sometimes be inconsistent compared to an OEM supplier like Bosch. Given the high labor cost to replace an X5 starter, saving a little on the part could be a gamble. If the part fails early, you will be paying for that difficult labor all over again.
How Much Does a New Starter for a 2000-2006 BMW X5 Cost?
The total cost depends on the part you choose and the significant labor involved. Shop labor rates typically range from $150 to $250 per hour.
| Part Type | Estimated Part Cost | Estimated Labor Cost | Estimated Total Cost |
|---|---|---|---|
| New Aftermarket | $108 - $385 | $450 - $900 | $558 - $1,285 |
| New OEM (Dealer) | $400 - $600 | $450 - $900 | $850 - $1,500 |
Cost estimates are for reference only and will vary based on your location, vehicle engine (I6 vs. V8), and the repair shop.
Pro Tip: Check for Known Issues First
Sometimes, a no-start issue on an E53 X5 isn't the starter. Forum members have reported issues with the ignition switch, battery cables, and even fuel delivery systems that can mimic starter failure. It's always best to have the starting and charging system properly diagnosed before replacing parts.
Frequently Asked Questions
Is my battery bad or is it the starter?
A simple test is to turn on your headlights and try to start the car. If the headlights dim significantly or go out completely, you likely have a weak or dead battery. If the headlights stay bright but the engine won't crank, the problem is more likely the starter or its connections.
Can I drive my X5 with a failing starter?
It is not recommended. A failing starter is unpredictable. It might start ten times in a row and then leave you stranded without warning. If you are experiencing symptoms, it's best to get it replaced as soon as possible.
Are there any recalls for the 2000-2006 X5 starter?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and other public records show no open recalls or specific Technical Service Bulletins (TSBs) for starter motor failure on the 2000-2006 BMW X5 (E53) generation. Recalls for starters on newer X5 models do not apply to the E53.
Why is a Bosch starter more expensive than other aftermarket brands?
Bosch was an original equipment supplier to BMW for this vehicle. Their parts are built to the same standards as the original, ensuring proper fit and long-term reliability. While other brands offer good value, with a part this difficult to replace, many owners choose the proven quality of Bosch to avoid the risk of a premature failure and another expensive repair job.

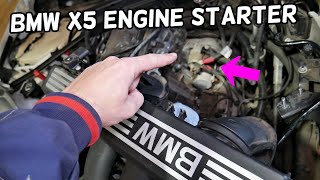

Helpful Videos

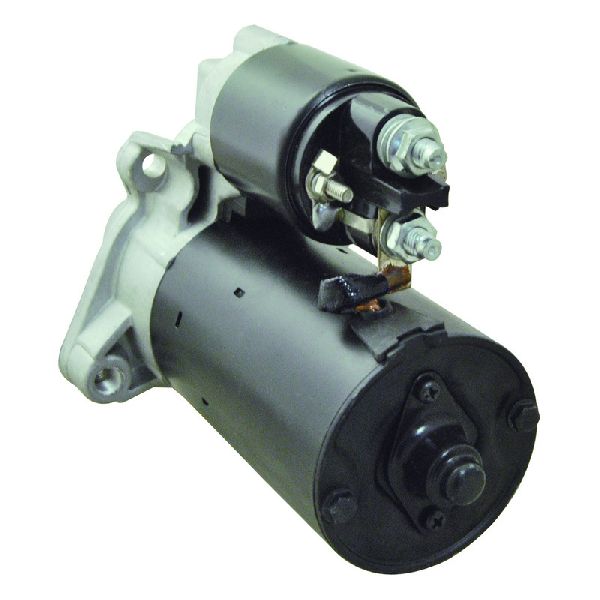

Technical Specifications
OEM Part Numbers: 12417501738 12417610344 12412354693 12417501668
Voltage: 12V. Power Output: 1.4kW to 1.7kW depending on engine. Rotation: Clockwise. Number of Teeth: 9.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
