A Ford Focus Owner's Guide to the 2000-2006 Manual Transmission Mount
Stop the clunking and vibration by choosing the right replacement mount for your first-generation Focus.
- Key symptoms are clunking noises when shifting and new, unusual vibrations at idle.
- The mount is located under the battery tray on the driver's side of the engine bay.
- Aftermarket brands like Anchor and DEA are affordable but may not last as long or ride as smoothly as the OEM Ford part.
- If this mount has failed, inspect the other two engine mounts as they are likely worn as well.
Is Your Ford Focus Transmission Mount Failing?
The transmission mount on the first-generation Ford Focus is located on the driver's side of the engine bay, underneath the battery and battery tray. Over time, the rubber in the mount can crack, degrade from oil leaks, or simply wear out from constant stress. When it fails, you'll notice some distinct symptoms.
Common Symptoms of a Bad Transmission Mount
- Vibrations: You may feel a new, excessive vibration through the floor, steering wheel, or seats, especially when the car is idling or accelerating.
- Clunking or Banging Noises: A loud "clunk" or "thud" when you accelerate, brake hard, or shift gears (especially between drive and reverse) is a classic sign. This is the sound of the transmission moving around and hitting other components.
- Rough Shifting: Because the mount affects drivetrain alignment, a bad one can make shifting gears feel notchy, difficult, or harsh.
- Visible Movement: If you have a helper safely rev the engine while the car is in park with the brake on, you might see the entire engine and transmission assembly rock or lurch more than it should. 🎬 Watch: How to diagnose a bad motor or transmission mount
Choosing the Right Aftermarket Mount
For a 2000-2006 Focus, you have a choice between original equipment (OEM) from Ford/Motorcraft and several aftermarket brands. Given the age of the vehicle, an aftermarket part is a very common and budget-friendly choice.
Aftermarket Brand Tiers
The brands available (Anchor, DEA, Westar, Pioneer) generally fall into the "value" or "standard replacement" category. Here’s an honest assessment based on owner feedback:
- Anchor, DEA, Westar, Pioneer: These brands offer the most affordable way to fix the problem. They are widely available and will get your car back on the road. However, forum discussions suggest they may not last as long as the original Ford part and might not absorb vibrations as effectively. Some owners report these mounts failing sooner than expected or having minor fitment issues during installation.
- OEM (Motorcraft): The original Ford part is widely considered to be the highest quality option in terms of durability and vibration damping. While it costs more, it's the best choice if you want the quietest ride and longest service life. For an older vehicle, the extra cost may not be necessary for every owner.

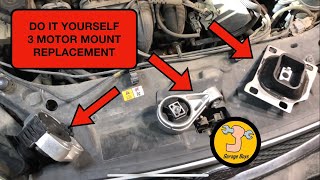

Pro Tip: The first-generation Focus has three main mounts holding the engine and transmission. The passenger-side engine mount is famously prone to failure. If your transmission mount is bad, it's a good idea to inspect the other two mounts—the passenger-side engine mount and the rear lower torque strut (or "dogbone" mount)—as they have likely been under extra stress.
Cost of Replacing a Ford Focus Transmission Mount
The cost to replace the manual transmission mount is reasonable, especially if you do the work yourself. The part itself is inexpensive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $22.98 - $29.36 |
| New OEM (Motorcraft) Part | $60 - $100 |
| Shop Labor | $98 - $143 |
| Total Professional Replacement | $121 - $173 (Aftermarket) | $158 - $243 (OEM) |
Frequently Asked Questions (FAQ)
Can I drive my Focus with a bad transmission mount?
You can, but it's not recommended for long. Continuing to drive puts extra stress on your other engine and transmission mounts, CV joints, and exhaust system. It can also make the car feel unsafe and unpredictable. It's best to get it replaced soon.
Is this a difficult part to replace myself?
For a DIYer with some experience, this is a manageable job. It requires safely supporting the transmission with a jack, removing the battery and its tray to get access, and having the right sockets (10mm, 13mm, 15mm, 21mm). It typically takes about 1 to 1.5 hours.

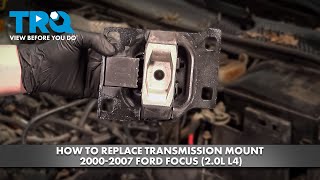

🎬 See this step-by-step transmission mount replacement walkthroughIs the transmission mount the same as the "dogbone" mount?
No. The manual transmission mount is on the driver's side under the battery. The "dogbone" mount, officially called the rear torque strut, is located at the bottom rear of the engine/transmission assembly and controls its rocking motion.

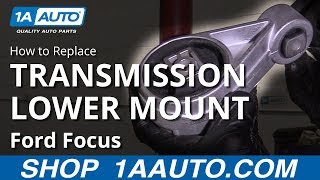

🎬 Watch: How to replace the lower dogbone torque mountDo I need to replace all the mounts at the same time?
You don't have to, but it's a good practice. When one mount fails, the others have to work harder and often fail soon after. If you're already paying for labor or taking the time to do the job, inspecting and replacing the other mounts can save you time and money in the long run.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5S4Z-6068-BA
The manual transmission mount for the 2000-2006 Ford Focus is a non-hydraulic mount consisting of a metal bracket and a bonded rubber insulator. It is secured by nuts to studs on the transmission and bolts to the vehicle's frame rail.
