Honda Insight Windshield Washer Pump: A Guide for 2000-2006 Models
If your washer fluid isn't spraying, a failed pump is the likely cause—here's how to choose the right replacement for your first-generation Insight.
- A failed washer pump is the most common reason for the system not spraying fluid on a 2000-2006 Insight.
- Before replacing, check the fluid level and the system's fuse.
- Replacement is a DIY-friendly job, accessible by removing the passenger-side inner fender liner.
- Quality aftermarket brands like Trico offer a reliable, direct-fit replacement at a much lower cost than OEM parts.
Is Your Windshield Washer Pump Failing?
A non-working windshield washer system on your 2000-2006 Honda Insight is often due to a failed washer pump. Over time, the small electric motor inside the pump can wear out or the plastic components can become brittle. Before replacing the pump, it's wise to check two simple things first: make sure your washer fluid reservoir is full and check the fuse for the washer system. If both are fine but you don't hear the pump's buzzing sound when you try to spray fluid, it's time for a replacement.
Symptoms of a Bad Washer Pump:
- No Fluid Spray: You activate the switch, the wipers move, but no fluid comes out.
- No Pump Sound: You don't hear the distinct humming or buzzing noise of the motor when you try to use the washers.
- Weak or Inconsistent Spray: The fluid barely reaches the windshield or sprays intermittently, which could be a sign of a dying pump or clogged lines/nozzles. 🎬 Watch this video to diagnose why your fluid isn't spraying.
- Leaks: Puddles of washer fluid under the front of the car can point to a cracked pump housing or a bad grommet where the pump enters the reservoir.
A Note on Washer Fluid
Using the wrong type of fluid can damage your washer pump and other system components. Avoid using water (which can freeze and grow bacteria), antifreeze, or household glass cleaners. Stick to a quality, methanol-based windshield washer fluid specifically designed for automotive use to prevent premature pump failure.
Choosing an Aftermarket Washer Pump
For a vehicle like the first-generation Honda Insight, an aftermarket windshield washer pump offers excellent value. The original equipment (OEM) part from Honda can be significantly more expensive, and for a simple component like a washer pump, the quality of a reputable aftermarket brand is often comparable.
Brands like Trico are well-known in the wiper and washer industry. Their replacement pumps are designed to be a direct fit, meaning they connect to the factory wiring and hoses without any need for modification. Aftermarket pumps are typically made from durable plastic and are engineered to provide consistent pressure for a strong, clear spray. Given the straightforward nature of this part, a quality aftermarket pump is a reliable and cost-effective repair solution.
Cost of Replacing a Windshield Washer Pump (2000-2006 Honda Insight)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Trico) | $24 - $35 |
| New OEM (Honda) | $50 - $135 |
| Shop Labor | $60 - $120 |
DIY Replacement is Feasible
Replacing the washer pump on a 2000-2006 Insight is a job most DIYers can handle. Access is gained by partially removing the front passenger-side inner fender liner. 🎬 Watch how to access the pump on a similar Honda model. The pump itself is simply push-fitted into a rubber grommet at the bottom of the washer fluid reservoir. The process involves disconnecting the electrical connector and fluid hose, pulling out the old pump, and installing the new one.
🎬 See a step-by-step walkthrough of a washer pump replacement.Frequently Asked Questions
Where is the windshield washer pump located on the 2000-2006 Honda Insight?
The washer pump is located at the bottom of the windshield washer fluid reservoir. To access it, you will likely need to remove the front passenger-side wheel and pull back the plastic inner fender liner.
Is the front and rear washer pump the same part?
On many vehicles, including some Honda models, the front and rear washers use the same pump or a similar style of pump. However, it is always best to confirm the part number for your specific needs. Many aftermarket listings specify if the pump is for the front, rear, or both.
Can I replace the washer pump myself?
Yes, this is a relatively simple replacement that can be done with basic hand tools in under an hour. You will need to safely jack up the car to remove the wheel for access. Be prepared for the remaining washer fluid to drain out when you remove the old pump.
My new pump is installed, but it's not spraying. What's wrong?
First, listen to see if the pump is making a buzzing sound. If it is, the issue is likely a clog in the lines or at the spray nozzles on the hood. You can disconnect the hose from the pump to see if it sprays fluid; if it does, the blockage is further down the line. If the pump makes no noise, double-check the electrical connection and the fuse.
Helpful Videos
Technical Specifications

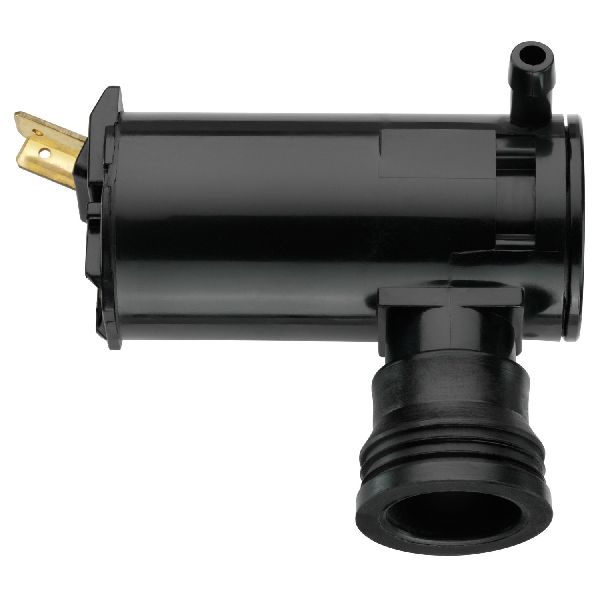

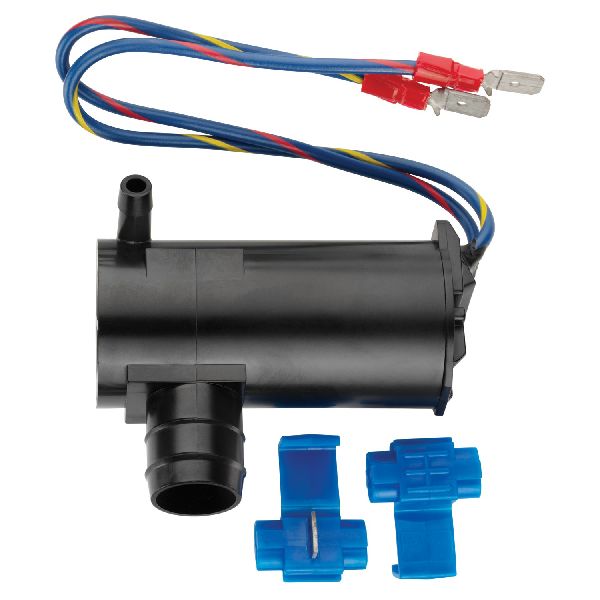

OEM Part Numbers: 76806-SL0-E11 76806-SL0-E01 38512-SF0-J01 76806-SE0-S01
12V Electric Pump, push-fit installation into washer reservoir.
