Lincoln LS Engine Oil Pressure Switch: A Guide for 2000-2006 Models
Understanding the common oil light flicker and choosing the right replacement switch for your V6 or V8.
- A flickering oil light at idle is the most common symptom and usually points to a bad switch, not a bad engine.
- The switch location is easy on the V8 (front, by oil filter) but difficult on the V6 (lower driver's side).
- Always verify you are not having a true low oil pressure issue, which is often accompanied by engine noise.
- Using the OEM Motorcraft replacement part is highly recommended for reliability, despite the higher cost.
Is Your Lincoln LS Oil Light Flickering?
One of the most common issues owners of the 2000-2006 Lincoln LS face is a flickering oil pressure light, especially when the engine is warm and idling at a stop. Often, the light goes away as soon as you press the accelerator. 🎬 Watch: Why your oil light flashes while driving or idling. While this can be alarming, the cause is frequently a faulty engine oil pressure switch, not a dangerous loss of oil pressure. The switch itself can fail, start leaking, or send incorrect signals.
First, Verify It's Not a Real Pressure Problem
Before replacing the switch, it's critical to ensure your engine isn't actually low on oil pressure. A false alarm from a bad switch is a minor annoyance; ignoring a real pressure drop can destroy your engine. If the oil light is on, listen for any unusual engine noises like ticking, clattering, or knocking. If you hear these sounds, stop the engine immediately and have it professionally diagnosed. If the engine sounds healthy, the problem is most likely the switch.
Symptoms of a Failing Oil Pressure Switch
- Oil light flickers at idle: The light comes on when the car is stopped in gear and turns off when you start moving.
- Constant oil warning light: The light stays on, even if the oil level is full.
- Erratic gauge behavior: If your model has a gauge, it may read zero or fluctuate wildly (though most LS models use a simple light).
- Visible oil leak: The switch itself can leak oil. You may see oil on the sensor, its electrical connector, or dripping from the front of the engine.
Choosing the Right Aftermarket Switch
When it comes to electrical parts on the Lincoln LS, there is a noticeable difference in quality and reliability between the original equipment manufacturer (OEM) and various aftermarket brands.

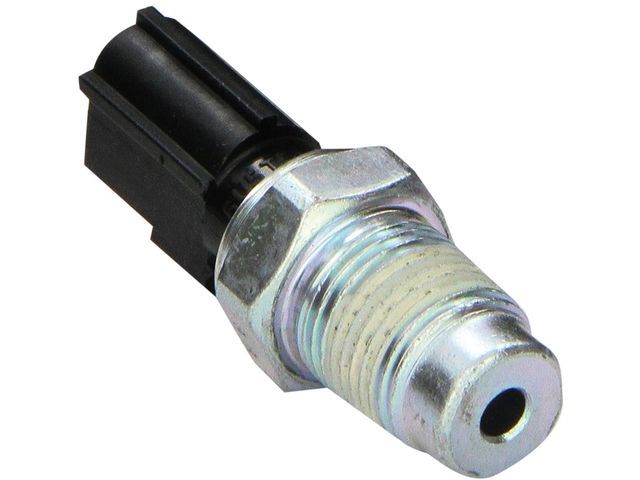

OEM - Motorcraft: Ford's own Motorcraft brand is the original part. For a critical sensor like this, most experienced owners and mechanics strongly recommend using Motorcraft. It costs significantly more, but it is built to the original specifications and is far less likely to fail prematurely. Choosing OEM means you are less likely to have to do the job a second time.
Premium Aftermarket (Standard, Walker, Vemo): Brands like Standard Motor Products (SMP), Walker, and Vemo are well-known in the aftermarket. They offer a middle ground on price. However, some forum users have reported aftermarket switches, including from known brands, failing in as little as a year. They can be a viable option if the budget is tight, but carry a higher risk of early failure compared to Motorcraft.

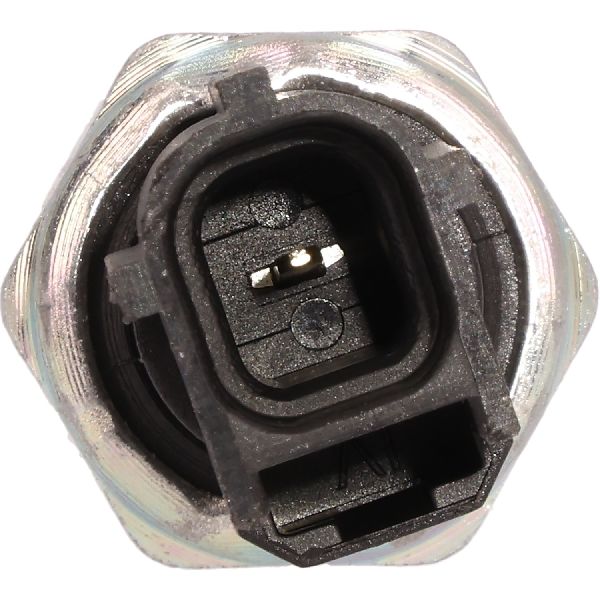

Economy Brands (Global, True Tech): These are the most affordable options. While tempting, they are best avoided for this part. The labor to replace a failed switch, especially on the V6, makes it worth spending more on a part that will last.
Common Ordering Mistake
The oil pressure switch for the 3.0L V6 engine is a different part than the one for the 3.9L V8 engine. Double-check that you are ordering the correct switch for your specific engine to avoid delays and returns.
Replacement Cost
The cost to replace the switch depends heavily on the brand you choose and whether you do it yourself. Shop labor is typically low, as the job is quick, especially on the V8.
| Item | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $90 - $132 |
| New Aftermarket Part | $14 - $45 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on the Lincoln LS?
The location is different for each engine. On the 3.9L V8, it is very easy to access, located on the oil filter adapter housing on the front of the engine. On the 3.0L V6, it is much harder to reach, located on the lower left (driver's) side of the engine block, often tucked near the dipstick tube.
🎬 See this video to help locate the oil pressure sender.Is this a difficult DIY job?
For the V8, it is an easy DIY job, rated 1 out of 5 in difficulty, and can be done in under 30 minutes. For the V6, access is much tighter, making it a more moderate (3 out of 5) job that requires more patience and potentially specific tools to reach the switch.
🎬 Watch: How to replace the switch using basic hand tools.Are there any recalls for the Lincoln LS oil pressure switch?
No. There are no specific recalls or widespread Technical Service Bulletins (TSBs) from Ford or the NHTSA for a faulty engine oil pressure switch on the 2000-2006 Lincoln LS.
Should I use Motorcraft or an aftermarket brand?
For this specific part, the strong consensus among owners and mechanics is to use the OEM Motorcraft switch. While more expensive, its reliability is much higher than aftermarket alternatives, some of which have been reported to fail quickly. Given the importance of the sensor, the extra cost provides peace of mind.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1U5Z-9278-DA F8AZ-9278-DA SW5583
This is a binary pressure switch, not a variable sending unit. It triggers a warning light only.
