Lincoln LS Power Steering Pressure Switch: Leaks, Stalls, and Replacement Guide (2000-2006)
Don't replace your power steering pump until you've checked this common and frequently misdiagnosed part.
- The most common failure is a fluid leak THROUGH the electrical connector, not from the threads.
- Always check the switch for leaks before assuming you need a more expensive power steering pump or hose.
- The system uses MERCON V ATF, not generic power steering fluid.
- Replacement can be difficult due to tight access; using a long socket extension from below is a common strategy.
Is Your Lincoln LS Leaking Power Steering Fluid? Check This First.
If you see reddish power steering fluid under the front of your Lincoln LS, your first thought might be a bad pump or a leaking hose. While those are possibilities, one of the most common failure points on the 2000-2006 LS is the power steering pressure switch. Before you spend money on a more expensive repair, a close inspection of this switch is essential.
A Very Common Leak Source
The pressure switch on the Lincoln LS is notorious for failing internally. When this happens, power steering fluid is forced past the internal seals and leaks directly out of the electrical connector. This fluid then drips down onto the subframe or garage floor, making it look like a leak from the nearby pump or high-pressure line. Many owners have replaced an entire pump only to find the leak was from this much cheaper switch.
Symptoms of a Failing Power Steering Pressure Switch
Look out for these signs that your power steering pressure switch is going bad:
- Fluid Leaking from the Switch's Electrical Connector: This is the most definitive sign for the Lincoln LS. Unplug the switch and look for any signs of reddish 🎬 Watch: How to pinpoint the exact source of a steering leak. automatic transmission fluid (ATF).
- Engine Stalling or Stuttering During Turns: If the switch fails to signal the computer, the engine idle won't increase during low-speed turns, causing it to bog down or even stall.
- Erratic Idle: The engine idle may hunt up and down as the computer receives faulty signals from the switch.
- Puddle of Fluid: You may notice a puddle of reddish fluid (MERCON V ATF) under the front of your car.
Choosing the Right Aftermarket Switch
Since the OEM switch is prone to failure, a quality aftermarket replacement is a smart choice. The two main tiers are well-known brands and budget-friendly options.
- Tier 1: Standard Ignition (Standard Motor Products)
Standard is a long-established aftermarket manufacturer known for producing parts that meet or exceed OE specifications. They are a trusted choice among professional technicians and offer a reliable, durable replacement. Given the history of this part failing, investing in a quality brand like Standard is recommended. - Tier 2: True Tech and Store Brands
These are typically more budget-focused options. While they can get the job done, their long-term durability and manufacturing consistency may not be on the same level as a brand like Standard. If the budget is tight, they are a viable option, but be aware that you may be replacing the part again sooner.
Check Fitment!
While many switches cover the entire 2000-2006 range, some aftermarket listings specify different parts for 2000-2002 and 2003-2006 models, particularly related to V6 and V8 engines. Always verify the part fits your specific year and engine 🎬 See a step-by-step replacement walkthrough on a V8 model. before purchasing.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Budget) | $32.25 - $45.00 |
| New Aftermarket (Premium Brand) | $45.00 - $60.96 |
| Shop Labor | $95 - $150 |
| Total Professional Replacement (Aftermarket) | $127 - $211 |
Replacement Information
Replacing this switch can be straightforward or quite difficult, depending on your approach and toolset. It is located on the high-pressure power steering line, typically underneath the car near the front passenger side. Some owners report extreme difficulty in getting a wrench on the switch to break it loose, sometimes requiring removal of the A/C compressor or the entire power steering hose assembly for access. However, others have successfully replaced it in under 30 minutes by using a 19mm socket on a long extension, fed up from underneath the car. 🎬 Watch: This video shows the 19mm socket trick and replacement tips. Due to the tight access, it is a moderately difficult DIY job.
Frequently Asked Questions (FAQ)
Is a leaking power steering pressure switch a serious problem?
Yes, but it's not an immediate crisis. A slow leak can be managed by topping off the fluid, but it will make a mess. If the leak becomes severe, you can lose power steering assist, and running the pump dry will cause permanent damage. An electrical failure that causes stalling is a safety risk. It's best to replace it as soon as it's diagnosed.
What kind of power steering fluid does the 2000-2006 Lincoln LS use?
The Lincoln LS uses MERCON V automatic transmission fluid (ATF) for its power steering system, not standard power steering fluid. Using the wrong fluid can damage the system.
Can I just replace the O-ring on the switch?
No. The common failure on the Lincoln LS is an internal leak that sends fluid through the electrical connector, not a leak at the threads. Replacing the O-ring or using thread sealant will not fix this specific problem. The entire switch must be replaced.
Were there any recalls for the Lincoln LS power steering pressure switch?
No. Despite being a very common and well-documented problem among owners, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or Technical Service Bulletins (TSBs) for the power steering pressure switch on the 2000-2006 Lincoln LS.
Helpful Videos
Technical Specifications

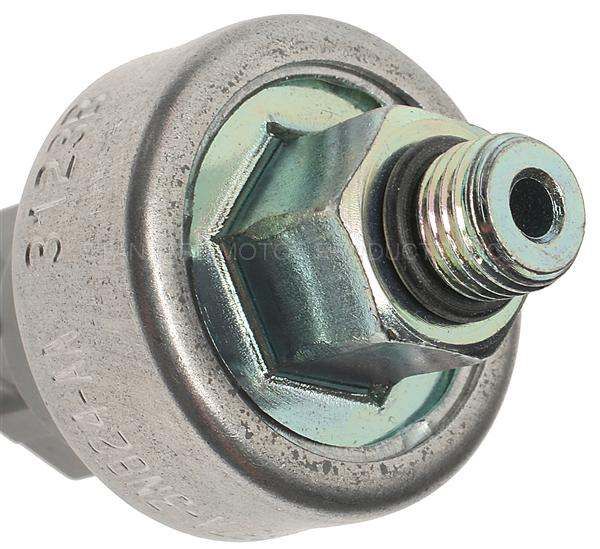

OEM Part Numbers: 1S6910 5W4Z3N824A
Screw-in type switch with a 2-blade male terminal connector.
