Engine Coolant Thermostat Guide for the 2000-2006 Mazda MPV
Keep your MPV's engine from overheating or running too cold by understanding and choosing the right thermostat.
- A failing thermostat can cause overheating (stuck closed) or a cold-running engine with poor heat (stuck open).
- The most common fault code associated with a failed-open thermostat is P0128.
- Consider replacing the plastic thermostat housing at the same time, as they are known to become brittle and crack.
- For this part, using an OEM thermostat is often recommended to avoid premature failure and repeat labor costs.
Is Your MPV's Thermostat Failing?
A thermostat is a simple part, but a failure can cause noticeable problems. Because it's a valve that can fail in either an open or closed position, you'll see one of two main symptoms.
Stuck Closed: Overheating
If the thermostat gets stuck closed, it traps coolant in the engine. The coolant can't get to the radiator to cool down. This will cause your MPV's engine to overheat quickly, which can lead to severe and expensive engine damage like a blown head gasket. This is a critical failure.
Stuck Open: Running Too Cool
If the thermostat is stuck open, coolant constantly flows to the radiator, even when the engine is cold. This makes it take a very long time for your engine to warm up. You might notice your temperature gauge dropping on the highway, your heater not blowing hot air, and your Check Engine Light may come on with a P0128 code. 🎬 Watch this guide on diagnosing and fixing the P0128 code. While not as immediately damaging as overheating, it hurts fuel economy and increases engine wear over time.
Choosing a New Aftermarket Thermostat
For the 2000-2006 Mazda MPV, you have a choice between replacing just the thermostat or the entire thermostat and housing assembly. The housing on these vans can become brittle over time, so inspect it carefully for cracks or leaks when replacing the thermostat. Given the labor involved, replacing the housing at the same time can be a smart move.
Aftermarket Brand Quality
When it comes to aftermarket thermostats, brand reputation is important. Many brands don't manufacture their own thermostats but re-package them from a few large suppliers.

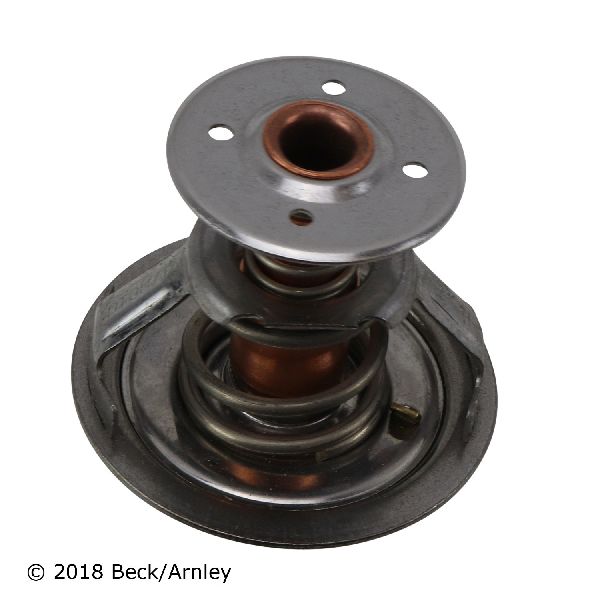

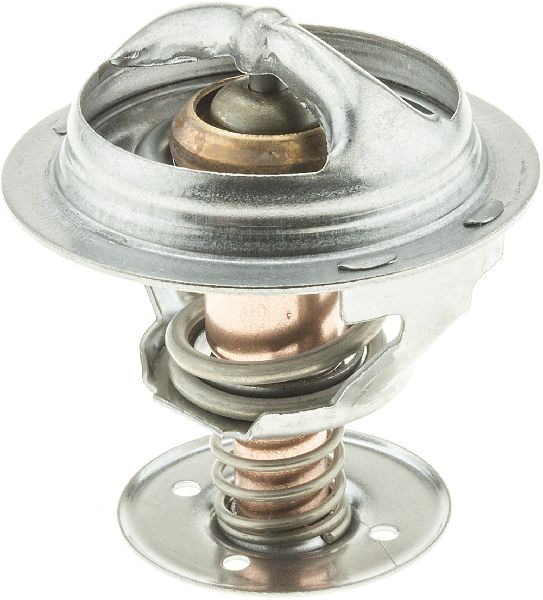

- Premium Aftermarket (Beck Arnley, Gates): These brands have a strong reputation. Beck Arnley is known for sourcing parts that match the original equipment (OEM) fit and function, sometimes even re-boxing the actual OEM part. Gates is a leader in cooling system parts. However, be aware that in the wider market, some have found thermostats made by Motorad inside Gates or Beck Arnley boxes.

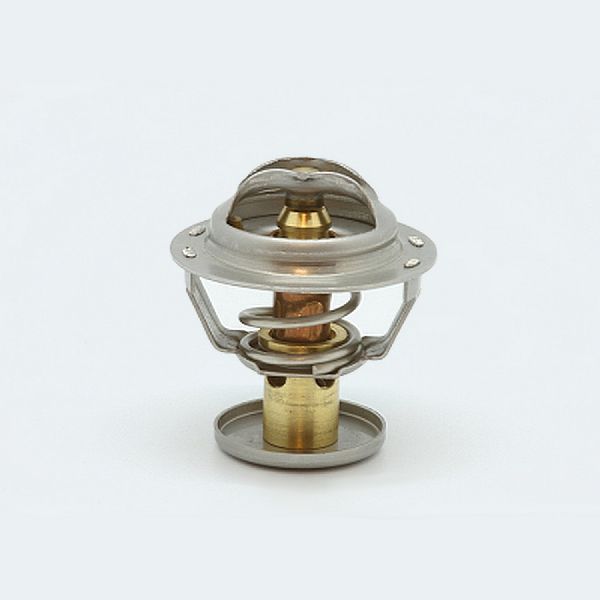

- Standard Aftermarket (Motorad, Calorstat): Motorad is one of the largest thermostat manufacturers in the world and even acquired the Stant brand. Quality can be inconsistent according to some mechanics, with reports of premature failure. However, many are used without issue. These are often the most budget-friendly option.
- Performance (Mishimoto): While Mishimoto is a well-known performance cooling brand, their offerings for the MPV are less common. They are typically high-quality but may be overkill for a daily-driven van unless you have other cooling system upgrades.
OEM vs. Aftermarket: The MPV Owner's Dilemma
For a part that is relatively inexpensive but requires significant labor to replace, many experienced mechanics recommend using an OEM (Original Equipment Manufacturer) thermostat from a Mazda dealer. The quality is guaranteed, and it reduces the risk of having to do the job a second time due to a faulty aftermarket part. If choosing aftermarket, sticking to a premium brand like Gates or Beck Arnley is your safest bet.
Cost of Replacing Your MPV's Thermostat
The cost can vary depending on what you replace and who does the work. The 2000-2001 MPV (2.5L V6) and 2002-2006 MPV (3.0L V6) may have different housing designs and costs.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Thermostat Only | $15 - $35 |
| Aftermarket Thermostat & Housing Assembly | $30 - $70 |
| OEM Thermostat (Part Only) | $40 - $60 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement (Aftermarket) | $180 - $320 |
Note: Costs are estimates and can vary by location and the specific parts used. Shop labor can be higher if other cooling system services, like a full coolant flush, are performed.
Frequently Asked Questions (FAQ)
Do I need to replace the thermostat housing too?
It is highly recommended. The original plastic housings on the 2000-2006 MPV are prone to becoming brittle and cracking with age. Since you have to access this area anyway, replacing the housing along with the thermostat is preventative maintenance that can save you from a future coolant leak.
Is there a difference between the 2.5L and 3.0L V6 thermostats?
While the thermostat itself may be the same or similar, the housing and surrounding hoses can be different for the 2000-2001 2.5L V6 and the 2002-2006 3.0L V6 engines. Always confirm the part fits your specific engine and year before purchasing.
What coolant should I use for my Mazda MPV?
It is best to use a green-colored, phosphate-based Asian vehicle coolant. Some Mazda TSBs for other vehicles specify Mazda's FL-22 coolant. Avoid using universal "all makes, all models" coolants, as they may not contain the correct additives for your cooling system.
Were there any recalls for the Mazda MPV thermostat?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show recalls for the 2000-2006 Mazda MPV related to airbags, but none for the engine coolant thermostat or cooling system.
Helpful Videos
Technical Specifications
OEM Part Numbers: KL01-15-171A AJ51-15-171A GY01-15-176
Opening Temperature: 192°F (88.89°C)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
