A Comprehensive Guide to the 2000-2006 Mazda MPV Engine Crankshaft Position Sensor
Understand the symptoms of a failing crankshaft sensor in your MPV and learn how to choose the right replacement part.
- A failing crankshaft sensor on a Mazda MPV will often cause a no-start or stalling condition.
- The most common diagnostic code is P0335.
- For this critical part, choose a high-quality aftermarket brand like NGK/NTK or Delphi, or an OEM part, as budget sensors are known to be unreliable.
- Replacement is a feasible DIY job for many owners and takes about an hour, with the part located behind the passenger-side front wheel.
Is Your Mazda MPV Stalling or Not Starting? It Could Be the Crankshaft Sensor.
If your 2000-2006 Mazda MPV has started stalling unexpectedly, has trouble starting, or the Check Engine Light is on, a failing crankshaft position sensor is a likely culprit. This sensor is essential for engine timing, and when it fails, it can leave you stranded. This guide will walk you through the common symptoms, replacement costs, and how to choose a quality aftermarket part for your minivan.
Symptoms of a Failing Crankshaft Position Sensor
A bad crankshaft sensor can cause a range of problems, from annoying to severe. Here are the most common signs:
🎬 Watch: A visual guide to bad crankshaft sensor symptoms- Engine Cranks but Won't Start: This is a classic symptom. The ECU doesn't see the crankshaft turning, so it won't trigger the spark plugs or fuel injectors.
- Intermittent Stalling: The engine may shut off unexpectedly while driving or idling, which can be dangerous. This may happen more often as the engine warms up.
- Check Engine Light: A failing sensor will almost always trigger the Check Engine Light. The most common trouble code associated with this part is P0335 (Crankshaft Position Sensor 'A' Circuit Malfunction).
- Rough Idle and Misfires: The engine may shake, vibrate, or run poorly because the ignition and fuel timing are incorrect.
- Poor Acceleration: You might notice your MPV feels sluggish or lacks power because the ECU can't properly manage the engine under load.
- Reduced Fuel Economy: Incorrect timing leads to inefficient fuel combustion, causing you to use more gas.
Known Issues, Recalls, and Bulletins
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA for the crankshaft position sensor on the 2000-2006 MPV. However, some owners in forums have reported that the wiring harness leading to the sensor can become chafed or damaged from contact with the engine belt, causing similar symptoms to a failed sensor. It is wise to inspect the wiring when replacing the part.
🎬 Watch this before replacing the sensor to avoid common mistakesChoosing the Right Aftermarket Sensor: Brand Quality Matters
For a sensor this critical to your engine's operation, part quality is very important. While many budget-friendly options exist, a poor-quality sensor can fail quickly or be dead on arrival, forcing you to do the job twice. Here is a breakdown of available brands to help you decide.

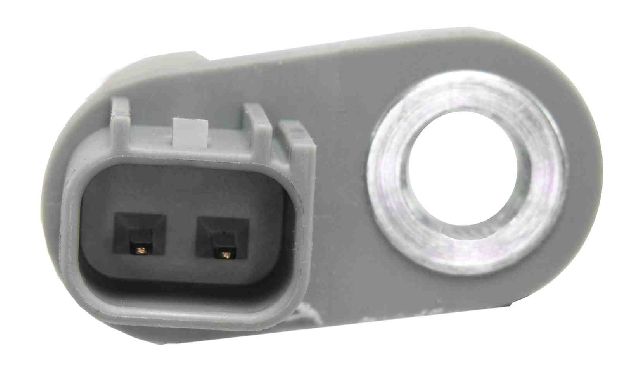

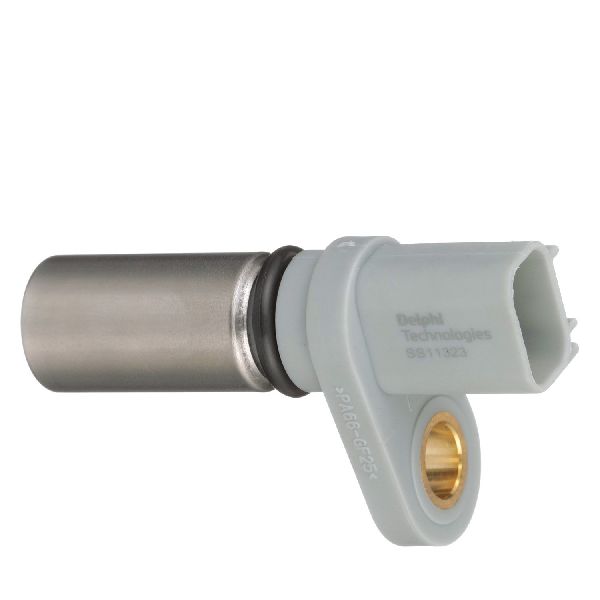

- Top Tier (OEM/OES Quality): Brands like NGK (also sold as NTK) are often Original Equipment Suppliers (OES) for Japanese vehicles and are highly recommended by professional mechanics for their reliability. Delphi is also a major OE manufacturer with a generally strong reputation for quality sensors. Choosing a part from this tier is the safest bet for a long-lasting repair.
- Mid Tier (Reputable Aftermarket): Standard Ignition (SMP) is a well-known aftermarket brand that offers reliable parts. However, be aware that they have different product lines; their standard line is generally considered good, but some users suggest being cautious with their lower-cost "T-Series" parts for critical applications.

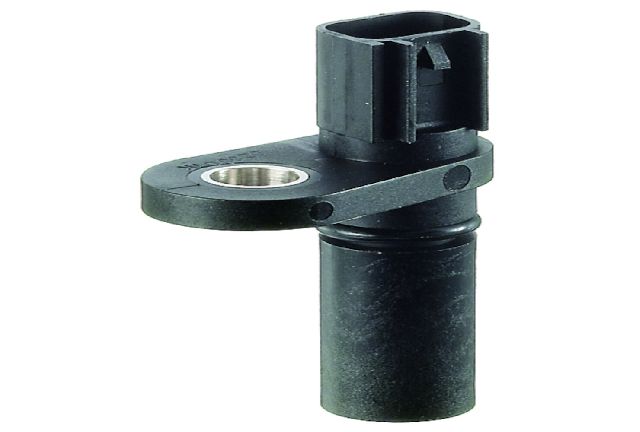

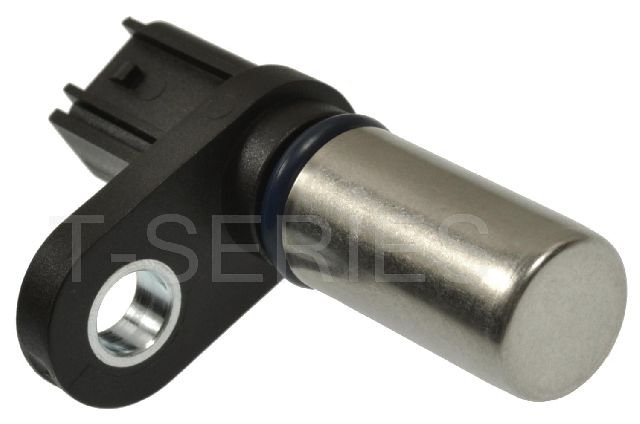

- Value Tier (Economy): Brands like Walker Products, Facet, Global Parts, and True Tech fall into the economy category. While the price is attractive, their long-term reliability can be a gamble. For a part that can leave you stranded, it's often worth spending a little more for a higher-tier brand.
Pro Tip: Given the low cost of even high-quality aftermarket sensors for the MPV, it is strongly recommended to choose a brand from the Top or Mid Tier. The small price difference is worth the peace of mind and avoids the potential for repeated repairs.
Cost to Replace the Crankshaft Position Sensor
The total cost depends on whether you do it yourself or have a shop perform the work. The job is relatively simple and accessible, making it a good DIY project for those with some experience.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $20 - $42 |
| New OEM Part | $26 - $60 |
| Shop Labor | $86 - $140 |
| Total (DIY) | $20 - $42 |
| Total (at a shop) | $106 - $182 |
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on the 2000-2006 Mazda MPV?
The sensor is located on the lower part of the engine, near the main crankshaft pulley (the large pulley at the bottom of the engine that drives the belts). To access it, you typically need to raise the front of the vehicle and remove the front passenger-side wheel and the plastic splash shield in the wheel well.
Is this a difficult part to replace myself?
For a DIYer with basic tools and jack stands, this is a manageable job. It typically involves unplugging one electrical connector and removing one or two bolts. 🎬 See this step-by-step replacement walkthrough for Mazda sensors The estimated labor time for a professional is under one hour.
Should I buy an OEM sensor from Mazda?
For the 2000-2006 MPV, the genuine Mazda sensor is surprisingly affordable, sometimes costing less than high-end aftermarket brands. If the price is comparable, choosing the OEM part is an excellent option. However, a top-tier aftermarket brand like NGK will also provide reliable performance.
Do I need to do anything after installing the new sensor?
After installing the new sensor, you should use an OBD-II scanner to clear the P0335 trouble code from the vehicle's computer. If you don't have a scanner, the light may turn off on its own after several drive cycles, but clearing it immediately is the best practice.
Helpful Videos
Technical Specifications
OEM Part Numbers: GY07-18-221A GY0718221A
Typically a 2-pin magnetic sensor that generates a signal as the crankshaft rotates.
