Understanding the Engine Oil Pressure Switch on Your 2000-2006 Mazda MPV

Is Your Mazda MPV's Oil Light On? Don't Panic Yet.

The red oil can light on your dashboard is a serious warning, but it doesn't always mean your engine is in immediate danger. While it can indicate dangerously low oil pressure, it often points to a failure of the oil pressure switch itself. On the 2000-2006 Mazda MPV, this switch is a common wear item that can fail in a few ways: it can start leaking oil, it can get stuck and give false warnings, or it can fail to alert you when there's a real problem.

Choosing the Right Aftermarket Oil Pressure Switch

For a simple part like an oil pressure switch, you don't necessarily need to buy an expensive OEM part from the dealer. Many aftermarket brands offer reliable quality at a much lower price. The key is to choose a reputable brand. Based on general market reputation, here's a look at the available options:

• Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard produces high-quality sensors that are engineered and tested to meet or exceed OEM performance. They are a reliable choice for this repair.

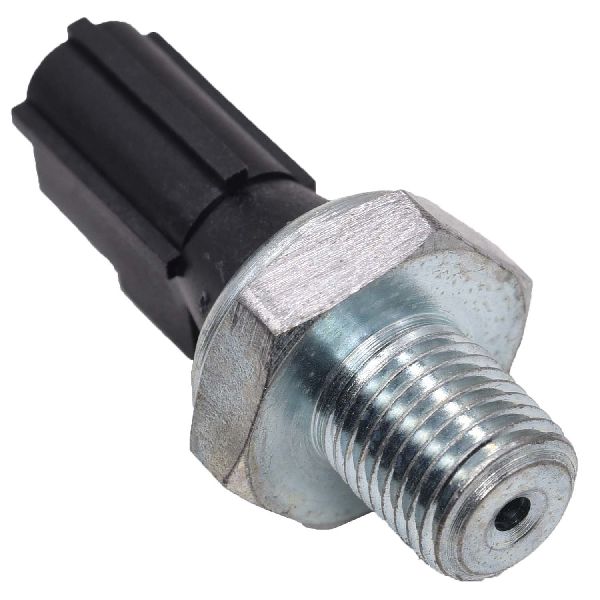

• Walker Products: Another well-regarded brand, Walker manufactures parts that are designed to be direct-fit replacements and are tested to OE specifications. They are a solid, dependable option.

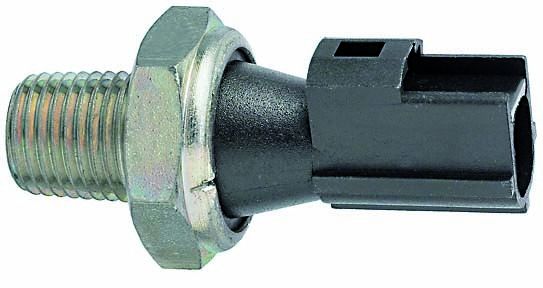

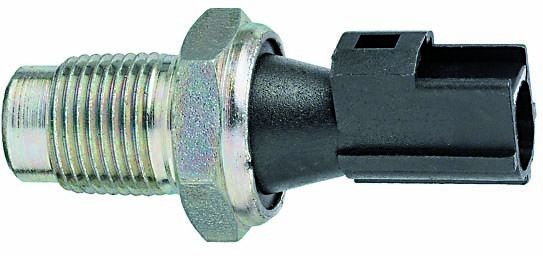

• Facet: An Italian brand that has been around for a long time, Facet is generally seen as a decent mid-tier option. They offer a cost-effective solution that typically performs well.
• Global Parts, True Tech, Rostra Powertrain: These brands fall more into the value or economy category. While they offer the lowest prices, their long-term reliability can be less consistent than premium aftermarket brands. For a critical, though simple, part like an oil pressure switch, spending a few extra dollars for a more established brand is often a wise investment.

Pro Tip: OEM vs. Aftermarket Quality

For the Mazda MPV's oil pressure switch, a high-quality aftermarket part from a brand like Standard Ignition or Walker Products is a perfectly acceptable and cost-effective alternative to the OEM part. These switches are not complex, and reputable aftermarket companies can produce reliable replacements. The main risk comes from unbranded, economy parts which may have higher failure rates.

How to Replace the MPV Oil Pressure Switch

The location of the switch differs slightly depending on your engine. On both the 2.5L V6 (2000-2001) and the 3.0L V6 (2002-2006), the switch is located on the front of the engine block, near the oil filter.

• For the 3.0L V6 (2002-2006): Access is difficult due to the A/C compressor being in the way. The easiest way to gain access is to release the belt tension, remove the three bolts holding the A/C compressor, and swing it aside without disconnecting the refrigerant lines. This makes reaching the switch much easier.
🎬 Watch this step-by-step replacement guide for the 3.0L engine.
• For the 2.5L V6 (2000-2001): The switch is located just above the oil filter and A/C pump. Access is tight, but it can be reached from underneath the vehicle.
🎬 See how to access the switch on a similar 3.0 V6.

This is a DIY-friendly job for someone with basic mechanical skills and tools, typically taking less than an hour. You will need a specific deep socket for oil pressure switches.
