Mazda MPV Engine Valve Cover Gasket Set Guide (2000-2006)
Leaking valve cover gaskets are a common issue on the V6 Mazda MPV, but choosing the right replacement set can provide a lasting fix.
- The rear valve cover gasket on the V6 MPV is a difficult job requiring removal of the intake manifold.
- Due to the high labor involved, choose a high-quality aftermarket brand like Victor Reinz or Beck Arnley for a durable repair.
- It is critical to replace the spark plug tube seals, which come in the set, to prevent engine misfires from oil contamination.
- Always replace the intake plenum gaskets when doing this job, as they are single-use and must be removed.
Is Your MPV Leaking Oil From the Top of the Engine?
A common problem for the 2000-2006 Mazda MPV, especially those with the V6 engine, is a leaking valve cover gasket. Over time, the original gaskets become hard and brittle from heat and age. This causes them to crack and lose their seal, leading to oil leaks. A key symptom many owners notice first is the smell of burning oil, which happens when leaking oil drips onto the hot exhaust manifold.
The Rear Gasket is the Major Challenge
On the V6 engines (both the 2.5L and 3.0L), the rear valve cover is located underneath the intake manifold. This makes replacement much more difficult than the front cover. Because of the significant labor involved in accessing the rear cover, it is critical to use a high-quality gasket set to avoid having to do the job twice. Many mechanics recommend replacing the spark plugs at the same time, as oil in the spark plug tubes is a common sign of a failed gasket and the intake manifold will already be removed.
Choosing the Right Aftermarket Gasket Set
For a job this labor-intensive, gasket quality matters. While OEM is an option, many high-quality aftermarket brands provide reliable seals that meet or exceed original specifications. Most quality aftermarket gaskets are made from a molded rubber or silicone-type material designed to resist heat and oil. Here’s a look at the available brands:
- Victor Reinz / Reinz: Often considered a top-tier aftermarket brand, Victor Reinz is known for producing gaskets that are comparable to original equipment. They are a popular choice for mechanics who want a reliable, long-lasting seal, which is especially important for the hard-to-reach rear valve cover on the MPV.

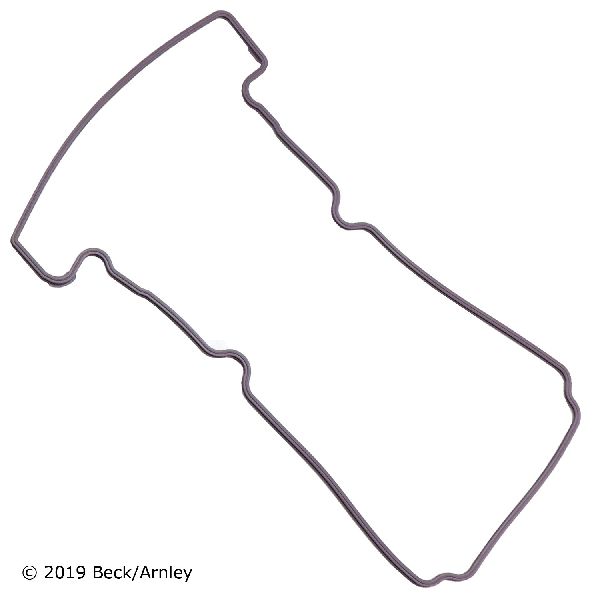

- Beck Arnley: This brand is well-regarded for often repackaging original equipment manufacturer (OEM) parts from Japan. If you receive a Beck Arnley gasket set marked "Made in Japan," it is likely a very high-quality part, making it a strong choice for this repair.

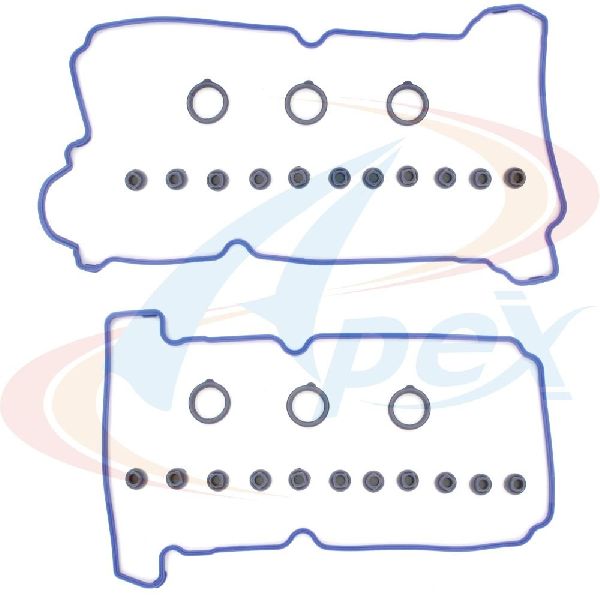

- Apex: Apex is generally seen as a standard-quality replacement brand. While some users have had success, it's often considered a step below brands like Victor Reinz or Beck Arnley. Given the difficulty of the rear gasket replacement, choosing a more premium brand might be worth the extra cost for peace of mind.
Pro Tip: When replacing the valve cover gaskets, you must also replace the upper intake manifold gaskets (plenum gaskets) as the manifold has to be removed for the job. It's also a good time to replace the PCV valve and hose, as a clogged PCV system can increase crankcase pressure and cause new gaskets to leak.
Cost of Replacing Your MPV's Valve Cover Gaskets
The cost can vary significantly based on whether you do the work yourself or hire a professional. The parts themselves are not very expensive, but the labor, especially for the rear gasket, drives the cost up.
| Item | Estimated Cost |
|---|---|
| Aftermarket Gasket Set | $47 - $101 |
| Shop Labor | $195 - $286 |
| Total Professional Replacement | $263 - $354 |
Frequently Asked Questions
Do I have to replace both valve cover gaskets at the same time?
It is highly recommended. The gaskets are the same age and exposed to the same conditions. Since accessing the rear gasket requires removing the intake manifold, it is smart to replace both while everything is apart to save on future labor costs.
Is it safe to drive with a leaking valve cover gasket?
You can drive with a minor leak, but it's not recommended for long. Leaking oil can drip onto hot exhaust parts, creating a fire risk. It can also foul your spark plugs, leading to engine misfires, and cause damage to rubber hoses and belts.
What are the symptoms of oil in the spark plug tubes?
If the spark plug tube seals fail, oil will fill the wells. This can cause the engine to misfire, run rough, and may trigger the Check Engine Light. You will often discover this when you go to change your spark plugs and find them coated in oil.
Do I need to use RTV sealant with the new gaskets?
Yes, but only in specific spots. A small dab of RTV silicone sealant is typically required where the timing cover meets the cylinder head, creating a corner. The new gasket will not seal this corner on its own. Follow the service manual for exact locations.
Technical Specifications
OEM Part Numbers: AJ03-10-235 AJ03-10-240
The 2000-2001 MPV uses a 2.5L V6 (Ford Duratec 25). The 2002-2006 MPV uses a 3.0L V6 (Ford Duratec 30). While the engines are different, the valve cover gasket replacement procedure is very similar, with the rear cover being under the intake manifold on both.
