Mazda MPV Ignition Coil Guide (2000-2006): Symptoms, Brands, and Replacement
Everything you need to know about replacing the ignition coils on your 2000-2006 Mazda MPV.
- The rear three ignition coils are very difficult to replace, requiring removal of the intake manifold.
- When replacing the difficult rear coils, it is highly recommended to also replace all three spark plugs at the same time.
- For the rear bank, use a high-quality brand like NGK, Delphi, or Bosch to avoid premature failure and repeat labor.
- A flashing check engine light is a serious symptom that requires immediate attention to prevent catalytic converter damage.
Is Your MPV Running Rough? It Could Be an Ignition Coil
If your 2000-2006 Mazda MPV is experiencing issues like a shaky idle, hesitation when you accelerate, or a flashing check engine light, a failing ignition coil is a very common cause. These coils work hard and are exposed to a lot of engine heat, which means they eventually wear out. This guide will walk you through the symptoms, what to look for in a replacement, and the critical difference in replacing the front and rear coils.
Symptoms of a Bad Ignition Coil
When an ignition coil fails, it can't deliver the powerful spark needed for proper combustion. This leads to an engine misfire, which can feel like a shudder, a stumble, or a loss of power. You might notice the engine idling roughly at a stoplight or even stalling. Because the engine isn't running efficiently, you'll also likely see a drop in gas mileage. A blinking check engine light is a serious warning sign of a misfire that could damage your catalytic converter if ignored.
The Tale of Two Banks: Front vs. Rear Coils
The most important thing to know about this job on the V6 MPV (2002-2006) is the difference in difficulty between the front and rear coils. The front three coils (cylinders 4, 5, 6) are right on top of the engine and are very easy to access and replace. 🎬 See how to quickly swap out the front bank coils. However, the rear three coils (cylinders 1, 2, 3) are buried underneath the upper intake manifold. To change the rear coils, the entire intake manifold must be removed 🎬 Watch this complete walkthrough of the intake and coil replacement., making the job significantly more complex and time-consuming. This is a major factor in labor costs if you're having a shop do the work.
Choosing the Right Aftermarket Ignition Coil
With many brands available, picking the right one can be confusing. They generally fall into a few quality tiers. Remember that for the MPV, especially for the hard-to-access rear coils, reliability is key.
- Premium Brands (Beck Arnley, Bosch, Delphi, NGK): These brands are well-regarded and often supply parts directly to automakers. Delphi, NGK, and Bosch are consistently recommended on automotive forums for their reliability. Beck Arnley is known for re-packaging OEM-quality parts, making them a strong choice. For the difficult rear coil replacement, choosing a brand from this tier is highly recommended to avoid doing the job twice.
- Standard Brands (Spectra, Standard Ignition, Walker Products, Holstein): These brands offer a good balance of quality and price. They are generally reliable for daily driving and are a solid step up from economy options. Standard Motor Products (SMP) is a long-standing name in the aftermarket.
- Economy Brands (DriveWire, Global Parts, Prenco): These are the most budget-friendly options. While the low price is tempting, their lifespan and performance can be inconsistent. They might be suitable for a quick fix on an easily accessible front coil, but installing them in the rear is a gamble that could lead to more labor costs down the road if they fail prematurely.
Pro Tip: Replace Plugs and Coils Together
If you're going through the major effort of removing the intake manifold to replace the rear coils, it is highly recommended to replace all three rear spark plugs at the same time, regardless of their age. Many mechanics also advise replacing all three rear coils at once, even if only one has failed, because the others are likely near the end of their life due to similar heat exposure.
Cost to Replace Mazda MPV Ignition Coils
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Coil (Single) | $18.47 - $138.63 |
| Shop Labor - Front Coils Only (per coil) | $40 - $80 |
| Shop Labor - Rear Coils (all three) | $250 - $450+ |
Frequently Asked Questions
Should I replace all six coils at once?
For the front bank, it's common to replace only the one that has failed. For the rear bank, due to the extensive labor involved, it is strongly recommended to replace all three coils and spark plugs at the same time to save on future labor costs.
What are the OBD-II codes for a bad ignition coil?

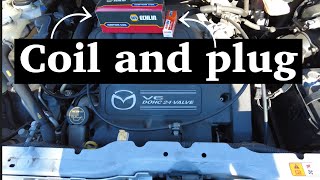

A general misfire code is P0300. Specific cylinder misfires are coded from P0301 to P0306, where the last digit corresponds to the cylinder number 🎬 Watch a mechanic diagnose and fix a P0304 misfire code. (e.g., P0304 is a misfire on cylinder 4). Codes from P0350 to P0362 can also point directly to an ignition coil circuit malfunction.
Were there any recalls for the MPV ignition coils?
No specific recalls for ignition coils on the 2000-2006 Mazda MPV were found via NHTSA searches. However, there was a recall for the ignition *switch* on some older MPV models, which is a different part. There was also a Technical Service Bulletin (TSB) for other Mazda models that noted ignition coil failures due to temperature changes, leading to an updated part design, a situation similar to what MPV owners experience.
Why do the rear coils fail more often?
The rear bank of coils is packed tightly against the firewall with very little air circulation. This traps heat, causing the coils to break down faster than the front coils, which get much better airflow.
Helpful Videos
Technical Specifications

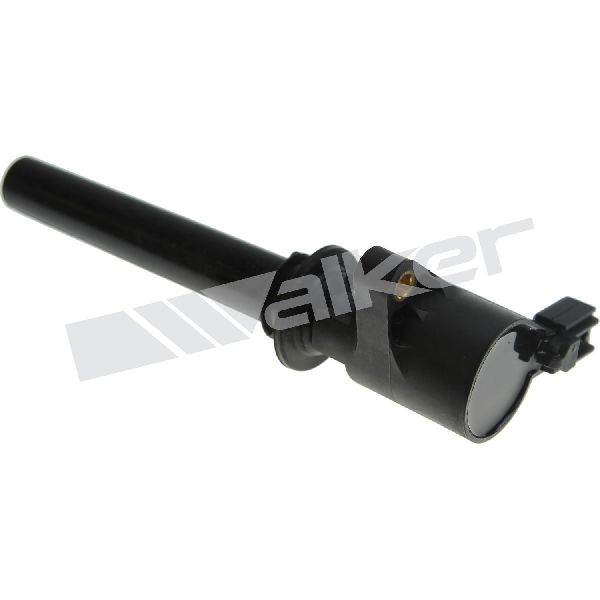

OEM Part Numbers: AJ09-18-100 AJ09-18-100B 1F2Z-12029-AC
The 2002-2006 Mazda MPV uses a coil-on-plug (COP) ignition system for its 3.0L V6 engine, with one coil per cylinder. The 2000-2001 models with the 2.5L V6 use a different coil pack system.
