A Guide to Replacing Spark Plugs on the 2000-2006 Mazda MPV
Everything an owner needs to know before tackling a spark plug job on their V6 MPV.
- For the 2002-2006 3.0L V6, the rear spark plugs are under the intake manifold, making replacement a very labor-intensive and expensive job.
- Always use high-quality Iridium spark plugs from OEM brands like NGK or Denso to maximize longevity and avoid repeating the difficult installation.
- When replacing plugs on the 3.0L V6, it is critical to also replace the three rear ignition coils and the intake manifold gaskets to prevent future failures and save on labor.
- Common symptoms of failure include a rough idle, engine misfires, poor fuel economy, and a flashing check engine light.
Symptoms of Failing Spark Plugs
Worn or failing spark plugs can cause noticeable engine problems. If you experience any of these symptoms, it may be time for a replacement.
- Rough Idle: The engine may shake or vibrate more than usual when the vehicle is stopped.
- Engine Misfires: You may feel a stumbling or jerking from the engine, especially under acceleration. A flashing Check Engine Light is a sign of a severe misfire that can damage other components. 🎬 Watch: Diagnosing and fixing a common cylinder misfire
- Poor Acceleration: The van may feel sluggish and slow to respond when you press the gas pedal.
- Reduced Fuel Economy: Inefficient combustion from bad plugs means you'll be visiting the gas station more often.
- Difficulty Starting: Worn plugs can struggle to create the spark needed to start the engine, especially when cold.
Installation: A Tale of Two Engines
The difficulty of replacing the spark plugs on a 2000-2006 Mazda MPV depends entirely on which engine you have. This is the most important factor affecting cost and labor.
- 2000-2001 MPV with 2.5L V6: The job is challenging but does not require major disassembly. The three rear spark plugs are difficult to access, and you will be working blind to remove the coil pack and the plugs.
- 2002-2006 MPV with 3.0L V6: This is a significantly more difficult and labor-intensive job. To access the three rear spark plugs (cylinders 1, 2, and 3), the entire upper intake manifold must be removed. This is not a simple task for a beginner and is why shop labor costs are high.
Choosing the Right Aftermarket Spark Plugs
When shopping for spark plugs, the brand and material matter. For Japanese vehicles like the MPV, sticking with the original equipment brands is the most reliable choice.
Brand Quality Tiers
- Tier 1: OEM-Equivalent (Recommended): NGK and Denso are the original equipment suppliers for Mazda. These brands are universally recommended by mechanics and owners for their reliability and performance in the MPV. Choosing an Iridium or Platinum plug from NGK or Denso will provide excellent longevity and performance.
- Tier 2: Reputable Aftermarket: Brands like Bosch fall into this category. However, many experienced mechanics and forum users report issues with Bosch plugs in Japanese engines, including misfires and premature failure. While they may work, they are not as consistently recommended as NGK or Denso for this specific vehicle.
- Tier 3: Budget Brands: This includes brands like Autolite, Champion, and Skyward. While they are more affordable, their long-term reliability and performance in the MPV's V6 engine are less proven. Given the extreme labor cost to change the rear plugs on 3.0L models, saving a few dollars on budget plugs is not recommended.
Pro Tip for 3.0L V6 Owners
Since the intake manifold must be removed to access the rear plugs and coils, it is highly recommended to replace other parts at the same time. This saves you from paying for the same expensive labor twice.
🎬 Watch: Replacing spark plugs and gaskets on the 3.0L engine- Ignition Coils: The 3.0L V6 is known for ignition coil failure. Replace at least the three rear coils along with the spark plugs.
- Intake Manifold Gaskets: The upper and lower intake manifold gaskets are single-use and MUST be replaced to prevent vacuum leaks.
- PCV Valve: A cracked PCV valve is another common issue on these vans. It is inexpensive and easy to replace while the manifold is off.
Cost to Replace Spark Plugs
| Part Type | Price Range |
|---|---|
| Aftermarket Spark Plugs (Set of 6) | $22 - $125 |
| OEM Spark Plugs (Set of 6) | $60 - $150 |
| Shop Labor (2.5L V6) | $150 - $250 |
| Shop Labor (3.0L V6) | $350 - $600+ |
(Note: Labor costs are estimates and vary by location and shop. The high cost for the 3.0L V6 is due to the labor required to remove the intake manifold.)
Frequently Asked Questions
What are the best spark plugs for my Mazda MPV?
The most recommended spark plugs are from the OEM brands, NGK and Denso. Using their Iridium or Platinum options provides the best combination of performance and longevity, which is crucial given the difficult replacement job.
Why is the quote to replace my spark plugs so high?
If you have a 2002-2006 model with the 3.0L V6, the high cost is due to the labor needed to remove the upper intake manifold to access the three rear spark plugs. This part of the job alone can take several hours.
Should I replace my ignition coils with my spark plugs?
For 3.0L V6 owners, yes. It is strongly advised. These vans are known for ignition coil failures, and the rear coils are inaccessible without removing the intake manifold. Replacing them with the plugs saves you from a very expensive repeat repair down the road.
Do I need to check the gap on my new spark plugs?
Yes. While many modern plugs come pre-gapped, they can be knocked out of spec during shipping. It is always a good practice to verify the gap with a feeler gauge before installation. The specification for the 3.0L V6 is typically around 0.054 inches.

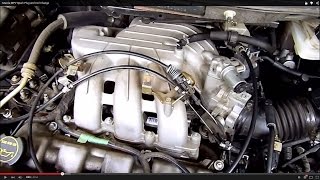

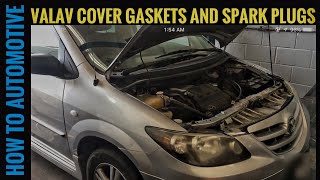

Helpful Videos
Technical Specifications
Engine: 2.5L V6 (2000-2001), 3.0L V6 (2002-2006). Spark Plug Quantity: 6. Ignition System: Coil-on-Plug (3.0L). Recommended Spark Plug Gap: ~0.054 inches.
