Throttle Position Sensor (TPS) Guide for 2000-2006 Mazda MPV
Solving hesitation, high idle, and poor acceleration in your Mazda MPV by choosing the right throttle position sensor.
- A common symptom specific to the 2000-2006 MPV is a high idle (1000-1500 RPM) after the engine gets hot.
- Do not buy the expensive full throttle body from Mazda; the correct OEM-equivalent sensor is available from Motorcraft for a fraction of the price.
- Symptoms like poor acceleration, hesitation, and rough idling are classic signs of a failing TPS on this vehicle.
- Replacement is simple (DIY-friendly) and requires only basic hand tools, with no complex calibration needed.
Is Your MPV's Throttle Position Sensor Failing?
A failing throttle position sensor on the 2000-2006 Mazda MPV can cause a range of frustrating drivability issues. Because the MPV's 3.0L V6 is a Ford Duratec engine, some symptoms and parts are shared with Ford vehicles of the same era. One of the most commonly reported vehicle-specific symptoms is a high idle after the engine has warmed up, especially after highway driving. Owners have noticed the idle creeping up to 1000-1500 RPM at a stop, which then drops back to normal after tapping on the sensor. Other, more general symptoms are often mistaken for transmission or fuel pump problems.
Common Symptoms of a Bad TPS:
- Hesitation or Stumbling: The van may hesitate or bog down when you press the accelerator.
- Poor Acceleration: You might feel a significant lack of power when trying to get up to speed.
- Rough or Unstable Idle: The engine may idle erratically, too high, or too low, and can sometimes stall when you come to a stop.
- Jerky Driving: The vehicle may buck or jerk unexpectedly while driving.
- Check Engine Light: A faulty TPS can trigger the Check Engine Light with codes like P0121, P0122, or P0123.
- Shifting Problems: The automatic transmission may shift harshly or at the wrong times because it uses TPS data to control shifts.
A Note on Ordering the Right Part
Mazda dealerships do not sell the throttle position sensor as a standalone part for the 2000-2006 MPV. They only offer the entire throttle body assembly, which is very expensive. However, since the engine is a Ford design, you can purchase the correct sensor from Ford's part division, Motorcraft. Many aftermarket brands also offer a direct-fit replacement, which is a much more affordable solution.
Choosing the Right Aftermarket TPS
When shopping for a new aftermarket TPS for your MPV, you'll find several brands available. They generally fall into a few quality tiers.
Tier 1: OEM-Equivalent Quality
- Motorcraft: This is the original equipment manufacturer for the sensor, even though your van is a Mazda. Choosing Motorcraft guarantees a perfect fit and performance identical to the original part. It is the safest, most reliable option.

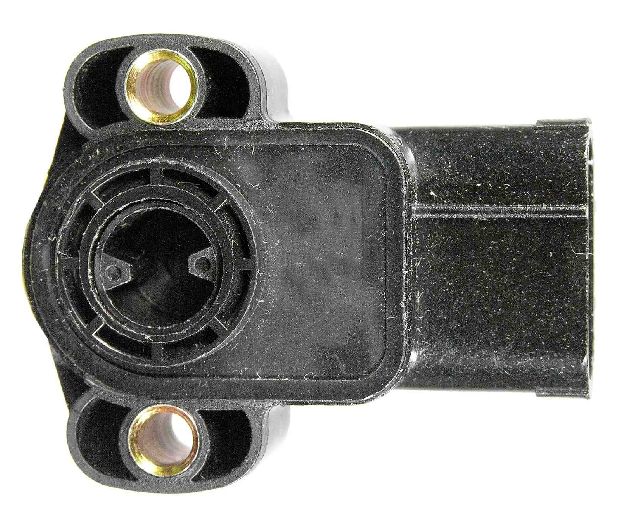

- NGK (NTK): NTK is the sensor division of NGK, a massive and highly respected OEM supplier for many car brands. Their sensors are known for high quality, reliability, and meeting or exceeding OE specifications. This is an excellent alternative to Motorcraft.
Tier 2: Reputable Aftermarket Brands
- Standard Motor Products (SMP): SMP is a long-standing aftermarket manufacturer with a reputation for producing quality parts. Their standard line (often in a red or blue box) is a reliable choice. Be aware that their "T-Series" (often in a green box) is their economy line and may not offer the same longevity.
- Walker Products: Walker is another established brand that produces a wide range of engine management parts. They engineer their sensors to meet or exceed OE standards and test them for performance, making them a solid and dependable option.
Tier 3: Value-Oriented Brands

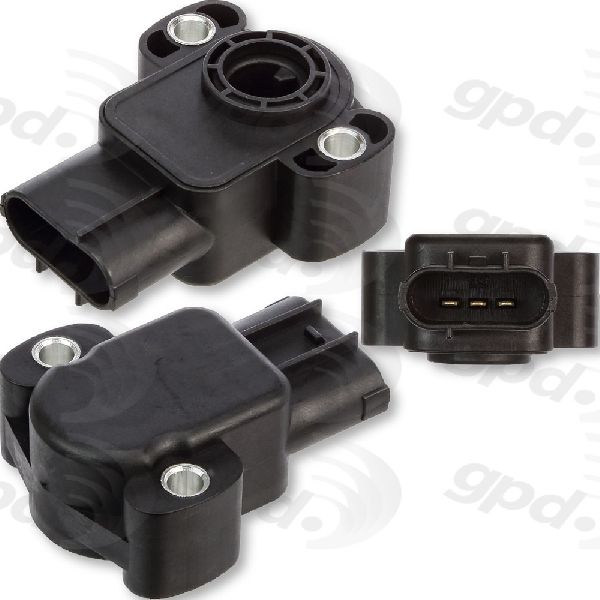

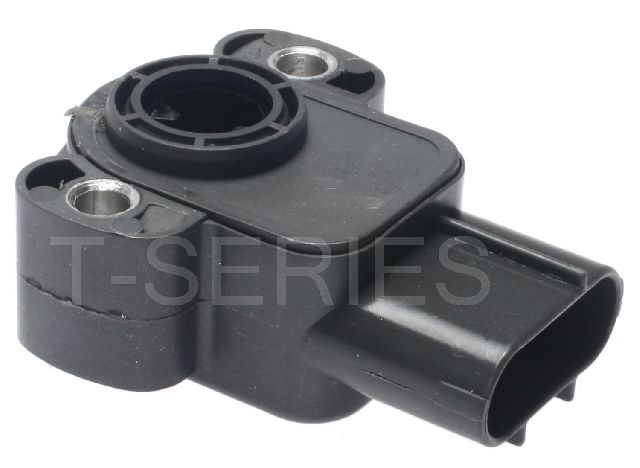

- Global Parts, True Tech, Replacement: These brands are typically focused on providing the lowest price point. While they may function correctly initially, their long-term durability and the precision of their voltage output may not match that of higher-tier brands. For a critical sensor like the TPS, spending a little more for a better brand is often a wise investment to avoid future problems.
Installation Tip
Replacing the TPS is straightforward. It's held on by two screws and has one electrical connector. You may need to remove a small plastic cover for the water pump belt to access the bottom screw. After installing the new sensor, it's a good idea to disconnect the negative battery terminal for about 10 minutes. This will reset the ECU and allow it to "re-learn" the new sensor's voltage readings at closed throttle and different positions.
Cost of Replacing a Mazda MPV Throttle Position Sensor
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Mazda) | $310 - $500+ | Sold only as a complete throttle body assembly. |
| New OEM-Equivalent (Motorcraft) | $16 - $40 | The original sensor manufacturer; best value for OEM quality. |
| New Aftermarket | $26 - $54 | Your price range. Covers quality brands like NGK, Standard, and Walker. |
| Shop Labor | $60 - $120 | Typically takes less than an hour for a professional. |
Frequently Asked Questions (FAQ)
Do I need to replace the whole throttle body?
No. While Mazda only sells the complete assembly, you can buy the sensor separately from Motorcraft or aftermarket brands. This saves a significant amount of money.
Are there any recalls for the MPV throttle position sensor?
No, there are no specific recalls or technical service bulletins (TSBs) from Mazda or the NHTSA for the throttle position sensor on the 2000-2006 MPV. The recalls found for this vehicle are primarily for airbags.
Can I clean the throttle position sensor?
The sensor itself is a sealed electronic unit and cannot be cleaned internally. While cleaning carbon buildup from the throttle body bore and plate is good maintenance, it will not fix a failing sensor. If the sensor is sending bad signals, it must be replaced.
Is any special adjustment needed after installation?
For the 2000-2006 MPV, no manual adjustment is typically required. The sensor has elongated screw holes that allow for very minor rotation, but most aftermarket parts are designed to work correctly when centered. The most important step is to perform an ECU reset by disconnecting the battery, which allows the computer to learn the new sensor's baseline voltage.
Technical Specifications
OEM Part Numbers: AJ03-18-911A 1F22-18-851 1F22-18-851A AJ03-18-911 GY0113640A
Connector Type: 3-Pin Female, Blade Terminals. Rotation: Anticlockwise.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
