A Guide to the 2004-2006 Pontiac GTO Alternator
Keep your GTO's electrical system healthy by understanding alternator failure and replacement options.
- The 2004 (LS1) and 2005-2006 (LS2) GTOs use different alternators; verify your engine before buying.
- A standard 140-amp aftermarket unit is fine for stock cars, but modified GTOs benefit from a high-output alternator.
- There are no specific recalls or TSBs for the GTO alternator; failures are typically from age or fluid contamination.
- DIY replacement is possible and takes 2-3 hours, with the main challenge being tight access on the lower driver's side.
Is Your GTO's Alternator Failing?
A failing alternator on a 2004-2006 Pontiac GTO can cause a range of electrical problems. Because the alternator powers everything, symptoms often appear across multiple systems. It's important to distinguish these signs from a bad battery, although the two are closely related. A simple voltage test can often pinpoint the culprit; a healthy GTO alternator should provide between 13.5 and 14.8 volts when the engine is running.
Common Failure Symptoms:
- Battery Warning Light: The most obvious sign is the battery or 'ALT' light on your dashboard. This indicates the system's voltage has dropped below a safe level.
- Dim or Flickering Lights: If your headlights, interior lights, or dashboard lights seem dim or flicker, the alternator may not be providing enough power.
- Slow or Malfunctioning Accessories: Power windows that move slowly, a weak stereo system, or other erratic electronic behavior can point to a lack of sufficient electrical power.
- Whining or Grinding Noises: A failing alternator can make a whining noise that changes with engine RPM. This is often caused by bad bearings inside the unit. A grinding noise could indicate a serious internal failure.
- Dead Battery: If the alternator isn't recharging the battery, you'll eventually find yourself unable to start the car. You might be able to jump-start it, but it will die again once the battery's reserve power is used up.
- Burning Smell: In some cases, a shorted-out alternator can produce a smell of burning plastic or rubber. This is a serious symptom that requires immediate attention.
Check Engine and Year First

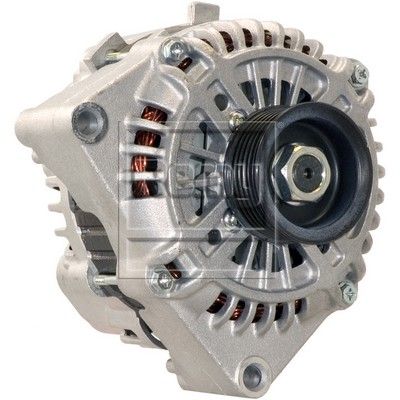

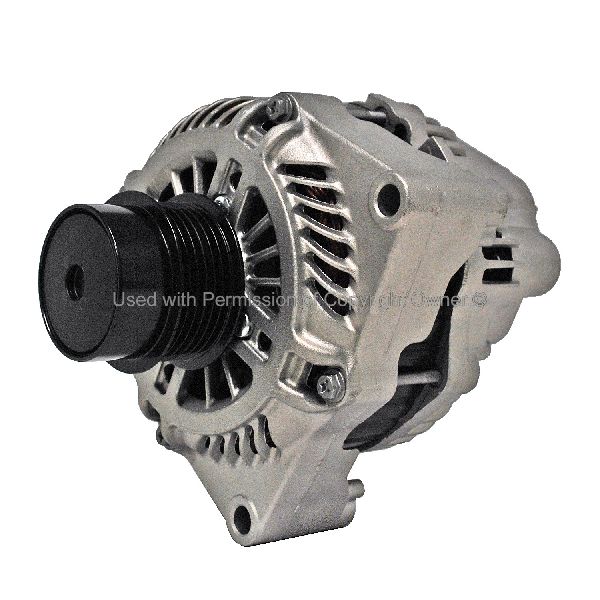

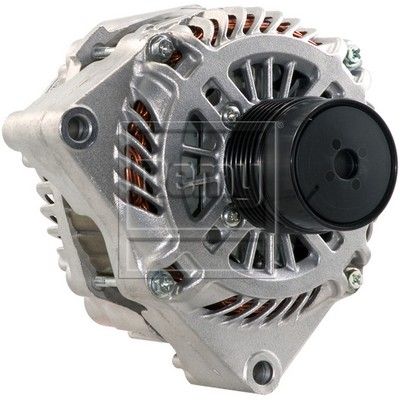

The 2004 GTO uses a 5.7L LS1 engine and has a different alternator than the 2005-2006 GTO, which uses a 6.0L LS2 engine. While both are rated at 140 amps from the factory, the mounting and part numbers are different. Always verify your vehicle's year and engine before ordering.
Choosing the Right Aftermarket Alternator
When replacing your GTO's alternator, you have several choices. OEM parts are available but can be expensive. High-quality aftermarket parts offer a reliable alternative at a better price. Your choice depends on your car's needs: is it a stock daily driver or a modified performance vehicle?
Standard Replacement (Good/Better)
For a stock GTO, a standard new aftermarket alternator that meets or exceeds OEM specifications is a great choice. Brands like Remy are well-known in the aftermarket for providing reliable, direct-fit parts. Other brands like MPA also offer remanufactured options that provide good value. These units are designed to restore original performance and are sufficient for most owners.
High-Output Performance (Best)
If you have added significant electrical accessories like a powerful audio system, extra lighting, or other performance electronics, a high-output alternator is a wise investment. Powermaster is a popular brand among GTO enthusiasts for its high-amp alternators that provide more power at idle and top-end. These units can prevent voltage drops under heavy electrical load. Keep in mind, installing a high-output alternator often requires upgrading your main power and ground wires, commonly known as the "Big 3 Upgrade."
Alternator Replacement Cost
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $249 - $275 |
| New OEM | $330 - $365 |
| Shop Labor | $195 - $286 |
| Total Professional Replacement | $733 - $908 |
Known Issues, Recalls, and Service Bulletins
While some owners in forums report charging system issues, there are no official NHTSA recalls or Technical Service Bulletins (TSBs) specifically for the alternator on the 2004-2006 Pontiac GTO. Failures are typically due to age, heat, or other factors like oil leaks. One common cause of failure on LS-platform engines is oil or other fluids leaking onto the alternator, which can short out the internal components.
DIY Installation Tips
Replacing the alternator on a GTO is a manageable DIY project for those with mechanical experience. The alternator is located on the lower driver's side of the engine. Access is tight, but it can often be done from the top by removing the air intake tube. The process involves disconnecting the battery, releasing tension on the serpentine belt, and removing three mounting bolts and the electrical connections. The job typically takes 2-3 hours.
Frequently Asked Questions
Do I need a high-output alternator for my GTO?
For a stock vehicle, a standard 140-amp alternator is sufficient. If you have added high-draw accessories like a large amplifier, you should consider a high-output unit from a brand like Powermaster to avoid electrical issues.
Is the alternator different for the 2004 and 2005-2006 GTO?
Yes. The 2004 GTO with the 5.7L LS1 engine uses a different alternator (OEM part #92058857) than the 2005-2006 GTO with the 6.0L LS2 engine (OEM part #92211821). You must order the correct part for your specific year.
Are there any recalls for the Pontiac GTO alternator?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically related to the alternator for the 2004-2006 Pontiac GTO.
Can I replace the GTO alternator myself?
Yes, if you are comfortable working on engines. The job requires basic hand tools, and while access is somewhat restricted, it does not typically require lifting the engine or removing major components. It can be done in a home garage in a few hours.
Helpful Videos
Technical Specifications
OEM Part Numbers: 92058857 (2004 5.7L LS1) 92211821 (2005-2006 6.0L LS2)
Voltage: 12V, Standard Amperage: 140 Amps, Pulley: 6-Groove Serpentine, Rotation: Clockwise.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
