Engine Timing Set Guide for the 2004-2006 Pontiac GTO
Keep your GTO's LS V8 engine running strong and in-time with the right timing set.
- The 2004 GTO has an LS1 engine, while 2005-2006 models have an LS2; the LS2 timing chain is a stronger, direct-fit upgrade for the LS1.
- Symptoms of failure include a rattling noise from the front of the engine, a check engine light, and rough running.
- The stock timing chain tensioner is a known weak point; aftermarket kits often provide a more durable design.
- When replacing the timing set, it is highly recommended to also replace the oil pump and water pump due to the labor involved.
Is Your GTO's Timing Chain on its Way Out?
The LS-series V8 engines in the 2004-2006 Pontiac GTO are generally robust, but the timing set is a wear item. While the chains themselves are strong, the tensioner can be a weak point. A failing timing set can lead to poor performance, strange noises, and eventually, severe engine damage. If you hear a rattling or scraping sound from the front of your engine, especially on startup or at idle, it's a major warning sign.
Generation & Engine Differences
It's important to know which engine your GTO has. The 2004 model is equipped with the 5.7L LS1 V8. The 2005-2006 models have the more powerful 6.0L LS2 V8. While many parts are similar, there are differences. The LS2 timing chain is a stronger, beefier design and is a common upgrade for LS1 owners. When ordering, always confirm the part fits your specific year and engine.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you have several good aftermarket options that often provide better performance and durability than the original stock parts. Many owners of high-performance cars like the GTO choose to upgrade their timing set as a preventative measure during other engine work, like a camshaft swap.

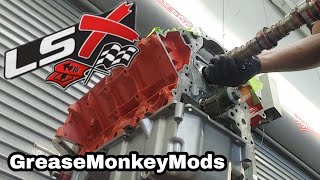

🎬 Watch: Complete guide to installing a cam, oil pump, and chainBrand Quality Tiers
- Performance Upgrade (Best): Brands like Melling Select Performance and Cloyes' high-performance series offer billet steel gears and premium roller chains (some using IWIS or C5R chains) designed for high-RPM, high-horsepower applications. These are ideal for modified engines or for owners who want the absolute best in terms of strength and timing accuracy. Edelbrock also offers performance-oriented timing sets.
- OEM-Equivalent (Better): Standard Melling, INA, and Cloyes offer timing sets that meet or exceed original factory specifications. These are excellent, reliable choices for a daily driven or stock GTO. The standard LS2 chain is considered a significant upgrade over the original LS1 chain and is a great budget-friendly choice.
- Economy (Good): Brands like Skyward provide a budget-friendly option for getting a car back on the road. While functional, they may not offer the same longevity or precision as higher-tiered brands, which is a consideration for a performance vehicle like the GTO.
Pro Tip: Replace More Than Just the Chain
While you can replace just the chain, it's highly recommended to replace the sprockets and tensioner at the same time. Worn sprockets will cause a new chain to wear out prematurely. Also, since the job requires removing the front engine cover and oil pump, it is the perfect time to inspect and likely replace the oil pump and water pump.
Estimated Replacement Costs
The cost to replace a timing set can vary based on your location and the parts you choose. Since this is a labor-intensive job, doing it yourself can save a significant amount of money if you have the right tools and experience.
🎬 See this in-depth walkthrough for removing and replacing your timing chain| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $51 - $338 |
| Shop Labor | $800 - $1,400 |
| Total Estimated Cost | $851 - $1,738 |
Frequently Asked Questions
Do I need a special tool to replace my GTO's timing set?
Yes, at a minimum you will need a good harmonic balancer puller. To properly install a new camshaft sprocket and ensure correct engine timing, you may also need tools to degree the cam. This is a moderately difficult job for an experienced DIY mechanic.
Is an aftermarket timing set better than the original GM part?
For the GTO's LS engines, many aftermarket performance brands like Cloyes and Melling offer sets that are stronger than the original factory parts. The LS2 chain itself was an upgrade from the LS1 chain, and aftermarket companies have continued to improve on that design, especially for performance use.
What is a timing chain tensioner and why does it fail?
The tensioner is a component that uses spring pressure or hydraulic pressure from the engine oil to keep the timing chain tight. The stock tensioner on some LS engines is a known weak point and can break apart, leaving the chain loose. A loose chain can rattle, jump a tooth on the gears (throwing off timing), or cause damage to other parts of the engine.
My GTO is a 2004 with the LS1. Should I use an LS2 timing chain?

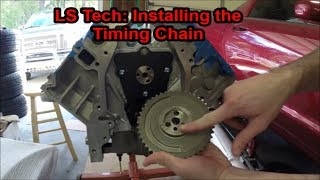

Yes, this is a very common and recommended upgrade. The LS2 timing chain is physically stronger and is a direct replacement for the LS1 chain. 🎬 Watch: Technical tips for installing an upgraded LS2 timing chain Many aftermarket kits for the LS1 will include this improved chain design.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12646387
Engine Type: 5.7L LS1 (2004), 6.0L LS2 (2005-2006). Chain Type: Single Roller. Camshaft Sensor Location: Rear of engine (LS1), Front timing cover (LS2).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
