Toyota Avalon Door Lock Actuator Guide for 2000-2006 Models
If your Avalon's power locks are buzzing, slow, or have stopped working, this guide is for you.
- A loud buzzing noise from the door is the most common sign of a failing actuator.
- It is highly recommended to replace the entire actuator and latch assembly, not just the small internal motor.
- This is a common failure; if one actuator fails, others may soon follow.
- There are no recalls for this issue, so the repair cost is the owner's responsibility.
Signs of a Failing Door Lock Actuator
A bad door lock actuator on a 2000-2006 Toyota Avalon gives clear warning signs. The most common issue is when one door stops responding to the power lock commands while the others still work. You will likely need to lock or unlock that door by hand.
- Buzzing or Grinding Noise: The most frequent symptom is a loud buzzing or grinding sound from inside the door when you try to lock or unlock it. This is the sound of the small motor's internal gears being stripped and trying to move the lock but failing.
- One Door Won't Lock or Unlock: A single door will fail to respond to the key fob or the central lock switch.
- Slow or Weak Operation: Before it fails completely, the lock may seem slow or struggle to move.
- Intermittent Function: The lock might work one day and not the next. This erratic behavior is a sign of a failing actuator or a loose connection.
A Common Point of Failure
Door lock actuator failure is a very common problem on many Toyota vehicles from this era. The small motors simply wear out over time. If one of your door lock actuators has failed, it is very likely that the others may fail in the near future, as they all have the same amount of use.
Choosing the Right Aftermarket Part
When shopping for a replacement, you will see a very wide price range. This is because you can buy just the small electric motor or the entire door latch and actuator assembly.
- Actuator & Latch Assembly (Recommended): This is the entire unit that bolts into the door. It includes the actuator motor, the mechanical latch, and all the necessary levers. This is the recommended repair because it is much easier to install and more reliable. You simply unbolt the old assembly and bolt in the new one. 🎬 Watch: How to replace the full door lock mechanism
- Actuator Motor Only (Not Recommended): This is just the small, cheap electric motor. Replacing only the motor requires you to take apart the sealed actuator assembly, which is full of small springs and gears that can easily get lost or misaligned. This repair is extremely difficult and often fails, making it a poor choice for most DIY mechanics.
Brand Quality: Replacement vs. Standard Ignition
When choosing an aftermarket brand, you generally get what you pay for.
- Standard Ignition: This is a well-regarded aftermarket brand that aims to meet or exceed original equipment (OE) specifications. It is often considered a reliable choice for a long-lasting repair without the high cost of a dealer part.
- Replacement: This brand tier typically offers the most budget-friendly options. While they can be a good value, the quality can be inconsistent compared to premium aftermarket or OEM parts. For a part that requires significant labor to access, spending a little more on a higher-quality brand can prevent you from having to do the job again in a year.
Replacement Cost
The cost to replace a door lock actuator depends on the part quality and who does the work. The job typically takes a professional mechanic 1-2 hours.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Assembly | $250 - $450 |
| New Aftermarket Assembly | $45 - $200 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement | $270 - $550 |
DIY Pro-Tip
The replacement is a manageable DIY project for someone comfortable with removing a door panel. 🎬 Watch: How to safely remove the Avalon door panel You will need basic hand tools, a plastic trim removal tool, and a T30 Torx screwdriver. Before you put the door panel back on, reconnect the battery and test the new actuator to make sure it works correctly. This simple step can save you a huge headache.
🎬 See this step-by-step Avalon actuator removal and replacement guideFrequently Asked Questions
Is there a recall for the door lock actuators on the 2000-2006 Avalon?
No, there is no specific recall from Toyota or the NHTSA for failing door lock actuators on the 2000-2006 Avalon. While a class-action lawsuit exists for this issue on many newer Toyota models, it does not apply to this generation, and repairs are the owner's responsibility.
Can I just replace the one actuator that failed?
Yes, you only need to replace the actuator that is broken. However, be aware that the actuators on the other doors are just as old and have seen similar use, so it is common for another one to fail soon after the first.
Why shouldn't I buy the cheap $30 motor instead of the whole assembly?
Replacing only the motor is not recommended. The actuator and latch assembly is a sealed unit not designed to be serviced. Opening it involves dealing with many small, complex springs and gears that can fly apart and are incredibly difficult to reassemble correctly. Buying the complete assembly is a much faster, easier, and more reliable repair.
Is the front door actuator different from the rear one?
Yes, the actuators are specific to each door (Front Left, Front Right, Rear Left, Rear Right). They are not interchangeable. Ensure you are purchasing the correct part for the specific door you are repairing.

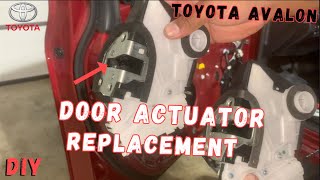

Helpful Videos
Technical Specifications
OEM Part Numbers: 69120-06010 69110-06010 69140-AC010 69130-AC010
The assembly includes the electric motor (actuator) and the mechanical door latch. It connects to the vehicle's wiring via a multi-pin connector and attaches to the interior and exterior door handles via metal rods and cables.
