A Guide to the Secondary Air Injection Control Valve for the 2000-2007 Audi A4
Understand why your Audi A4 has a check engine light and how to fix this common emissions part.
- A bad control valve (combi valve) is the root cause of most secondary air system failures, as it lets moisture destroy the air pump.
- Always replace the control valve when replacing a water-damaged air pump to prevent the new pump from failing.
- The most common symptom is a Check Engine Light with code P0411.
- Driving with a bad valve is safe, but you will fail an emissions test.
Is Your Secondary Air Control Valve Failing?
A bad secondary air injection control valve, or combi valve, usually doesn't show many signs by itself. The real trouble starts when it fails and damages other parts of the emissions system. The most common problem is the valve getting stuck open. When this happens, hot, wet exhaust gas flows backward into the secondary air pump, which is not designed to handle moisture. This will destroy the pump over time.
🎬 Watch: See exactly how a failed valve ruins your pump.Symptoms of a Failing System
Because a bad valve leads to a bad pump, the symptoms are often related to the pump's failure:
- Check Engine Light: This is the most common sign. Your car's computer will detect a problem with the system, often storing the code P0411 for "Incorrect Flow Detected".
- Loud Whining Noise on Cold Start: A sound like a vacuum cleaner or jet engine for the first 60-90 seconds after starting the car is a classic sign of a failing air pump, often caused by a bad valve.
- Failed Emissions Test: With the check engine light on for an emissions-related part, your Audi A4 will not pass a required smog test.
- Water in the Air Pump: A mechanic might find water or rust inside the air pump or its hoses. This is a clear sign that the combi valve has failed and allowed condensation from the exhaust to flow backward.
The Real Cause of Failure
The #1 reason the secondary air pump fails is because the control valve (combi valve) failed first. It gets stuck, allowing moisture to ruin the pump. If you replace a pump that has water damage without also replacing the control valve, the new pump will fail very quickly. Always inspect or replace the valve when servicing the air pump.
Choosing the Right Aftermarket Part
When shopping for a new aftermarket control valve, you have options. The quality can range from OEM-level to budget-friendly.

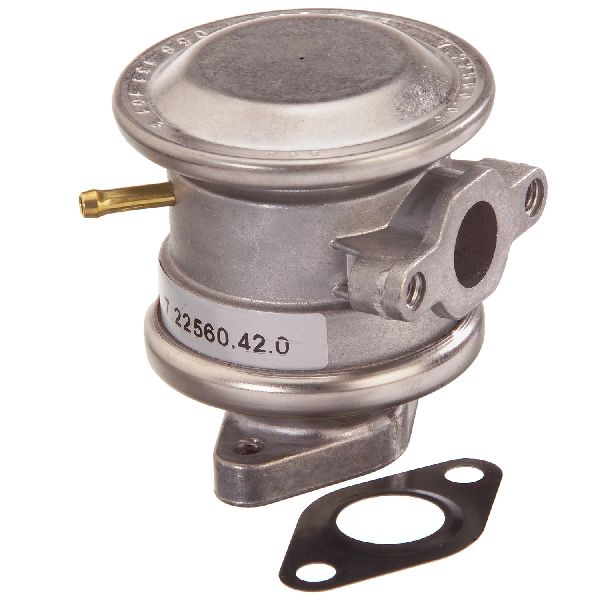

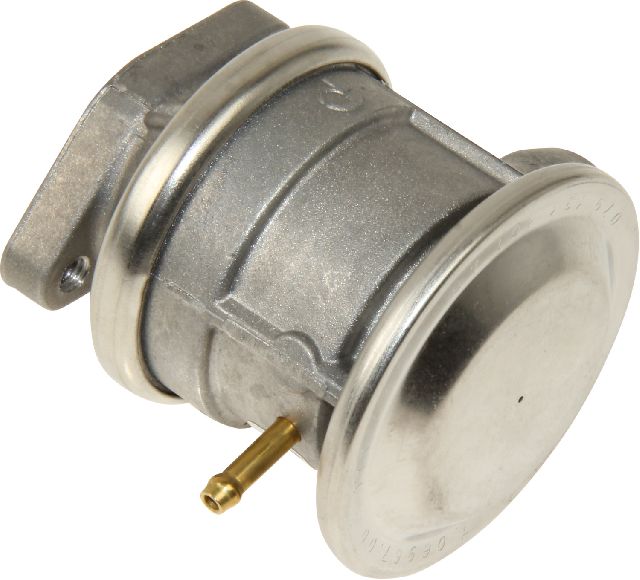

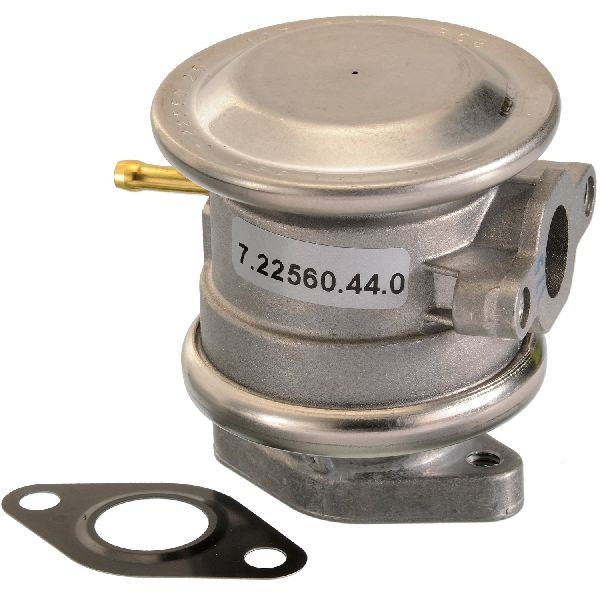

- Premium Aftermarket (Hella): Brands like Hella are often original equipment (OE) suppliers to Audi. This means their parts are made to the same standards as the one your car came with. Choosing a Hella valve is the safest bet for a long-lasting, reliable repair.

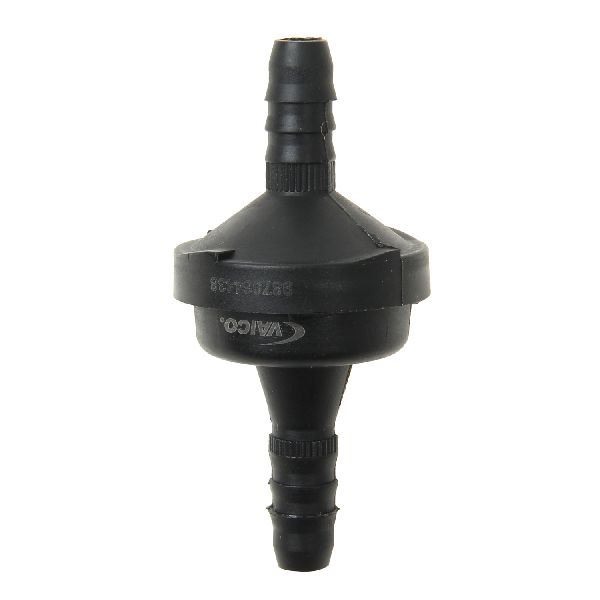

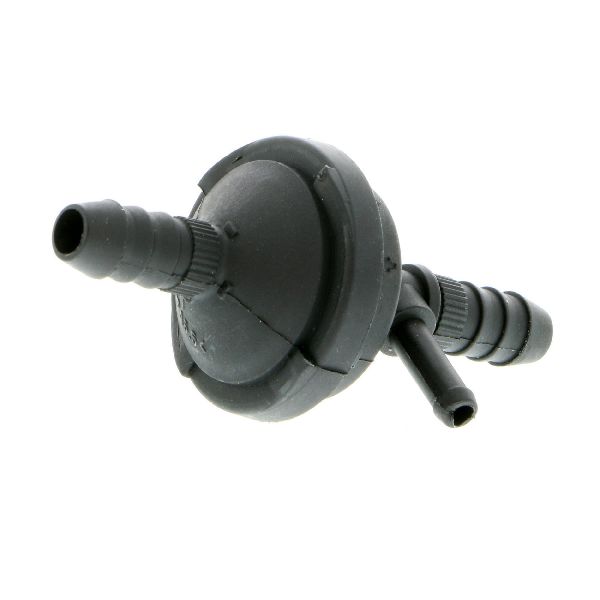

- Standard Aftermarket (Vaico): Brands like Vaico offer a more affordable solution. These parts can be a good value, but their long-term durability may not match a premium brand. If budget is your main concern, this is a viable option, but ensure the rest of the system (hoses, pump, relay) is checked thoroughly.
Pro Tip: Regardless of the brand you choose, replacing the gasket that seals the valve to the engine is critical to prevent exhaust leaks. Many aftermarket valves come with a new gasket.
Cost to Replace an Audi A4 Secondary Air Control Valve
| Part or Service | Estimated Cost |
|---|---|
| New OEM Valve | $150 - $250 |
| New Aftermarket Valve | $14 - $165 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $250 - $450 |
Note: Costs are estimates and can vary by location and your vehicle's engine (1.8T vs. V6). These costs do not include replacing the secondary air pump, which is often required if the valve has failed.
Frequently Asked Questions (FAQ)
Is this valve the same as a "combi valve"?
Yes. On Audis, the Secondary Air Injection Control Valve is commonly called the "combi valve" or "combination valve" by mechanics and in repair manuals.
Can I replace the secondary air valve myself?
This can be a challenging DIY job. Access to the valve, which is located on the back of the cylinder head, is very limited. While it is possible for an experienced home mechanic with the right tools, beginners may find it difficult.
🎬 Watch this DIY guide for a step-by-step replacement walkthrough.Are there any recalls for this part on my Audi A4?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls for the secondary air injection system for the 2000-2007 Audi A4.
What if I replace the valve and pump but still get a P0491/P0492 code?
If you still have "Insufficient Flow" codes after replacing the parts, the issue is likely carbon buildup inside the air passages of the cylinder head. Audi has issued Technical Service Bulletins (TSBs) about this problem, which requires a special cleaning procedure to fix.
🎬 See how to diagnose persistent P0491 and P0492 fault codes.Helpful Videos
Technical Specifications
OEM Part Numbers: 06B131101H 06B131101D 078131101M 079131101AR
Also known as: Combi Valve, Combination Valve. Operation: Pneumatic (vacuum-operated).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
