A Guide to the Rack and Pinion Bellows Kit for the 2000-2007 BMW X5 (E53)
Protect your expensive steering rack from damage by replacing these simple, inexpensive boots at the first sign of wear.
- Replacing torn bellows is preventative maintenance to avoid a steering rack failure, which is a much more expensive repair.
- If you see power steering fluid leaking from the boot area, the steering rack's internal seals have already failed and the rack needs replacement.
- A professional wheel alignment is essential after replacing the bellows to ensure safety and prevent uneven tire wear.
- Beck Arnley is generally considered a more reliable aftermarket option than URO Parts for this component due to their practice of sourcing from OE manufacturers.
Why You Can't Ignore a Torn Steering Rack Boot on Your X5
On the first-generation BMW X5 (E53), the steering rack is a robust but expensive component. The rack and pinion bellows are its first line of defense. These rubber boots flex and stretch every time you turn the steering wheel. Over many years and miles, the rubber naturally degrades, cracks, and tears. Once a boot is torn, it creates an open path for grit and moisture to attack the polished metal surfaces of the inner tie rod and the main steering rack seals. This contamination grinds away at the seals, eventually causing the steering rack itself to fail. A power steering fluid leak from the end of the rack is a sure sign the internal seals are already damaged, a problem that started with a simple torn boot.
Don't Mistake Bellows for Seals

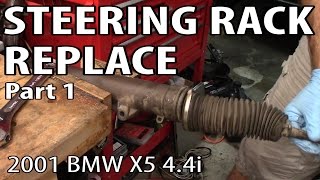

A common misconception is that the bellows hold in power steering fluid. They do not. Their job is to keep contaminants out. If you see power steering fluid leaking from a torn boot, the internal seals of the steering rack have already failed, and the entire rack assembly will likely 🎬 Watch this walkthrough if your steering rack requires a full replacement. need to be replaced soon.
Symptoms of a Failing Bellows Kit
Inspecting the bellows should be part of your regular maintenance. Often, the first signs are found during an oil change or tire rotation. Look for:
- Visible Damage: Check the rubber boots on both sides of the steering rack, located behind the front wheels. Look for cracks, splits, or holes.
- Grease or Oily Dirt: The boots hold lubricating grease for the inner tie rods. If a boot is torn, you may see greasy residue slung around the area.
- Steering Noises: A contaminated rack may begin to make grinding or groaning noises when you turn the wheel, indicating internal wear has already begun.
- Stiff or Vague Steering: As the rack wears from contamination, you might notice the steering feels tighter than usual or less precise.
Choosing the Right Aftermarket Bellows Kit: Brand Tiers
For a part like this, where the component itself is inexpensive but vital for protecting a costly assembly, choosing a quality brand is wise. You have a couple of common aftermarket options.

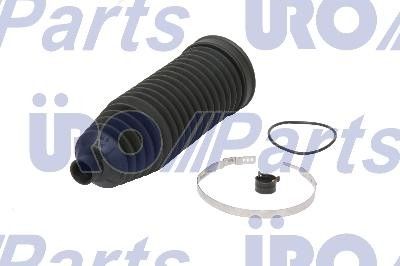

Economy Tier: URO Parts
URO Parts is known for offering budget-friendly components for European vehicles. For a simple rubber part like a steering bellow, their products can be a viable option if keeping costs to an absolute minimum is the priority. However, forum discussions show that the brand's quality can be inconsistent across its product line. While some users have no issues with simple URO parts, others prefer to avoid them for anything that requires significant labor to install, just in case of premature failure.
Mid-Grade / OE-Quality Tier: Beck Arnley
Beck Arnley has a reputation for being a higher-quality aftermarket supplier. They often act as a parts sourcer, meaning they re-box products from various manufacturers, including Original Equipment (OE) suppliers. It's not uncommon to find a part made by an OE supplier like Lemforder inside a Beck Arnley box. This strategy generally results in a more reliable and better-fitting part compared to economy brands, giving you more confidence that you won't have to do the job twice.
Pro Tip: Replace in Pairs
If one boot has failed due to age, the other is likely not far behind. It is highly recommended to replace both the left and right bellows at the same time. The kits are inexpensive, and this saves you from having to do the same job again in the near future.
Cost to Replace 2000-2007 BMW X5 Rack and Pinion Bellows
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Bellows Kit (URO Parts, Beck Arnley) | $16 - $30 |
| New OEM Bellows Kit | $40 - $70 |
| Shop Labor (including alignment) | $250 - $450 |
| Total Professional Replacement | $270 - $520 |
Frequently Asked Questions
Do I need a wheel alignment after replacing the bellows?

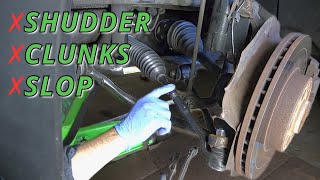

Yes, an alignment is highly recommended. The procedure requires removing the outer tie rod end 🎬 See how to properly remove and replace the tie rods. from the steering knuckle. While you can count the threads to get it close, it's nearly impossible to get it back to the exact original position. Driving without an alignment can cause crooked steering, premature tire wear, and unsafe handling.
What happens if I don't replace a torn boot?
If you ignore a torn boot, dirt and water will enter the steering rack. This will wear out the internal seals and moving parts, eventually leading to the failure of the entire steering rack. A bellows kit costs under $30, while a new steering rack replacement can cost over $1,500.
Is it difficult to replace the bellows myself?

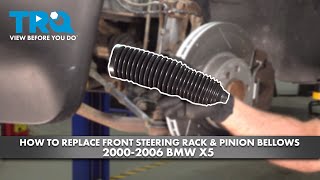

For a DIY mechanic with the right tools, it is a manageable job. It requires safely jacking up the vehicle, removing the wheel, and using tools to separate the tie rod end. There are several video guides available that show the process on an E53 X5. 🎬 Watch this step-by-step guide on replacing your steering rack bellows. The most critical part is getting a professional alignment afterward.
Are there any recalls for the 2000-2007 X5 steering bellows?
No. Searches of the NHTSA database and other sources show no recalls or technical service bulletins (TSBs) specifically related to the rack and pinion bellows for the 2000-2007 BMW X5.
Helpful Videos
Technical Specifications
OEM Part Numbers: 32136751026

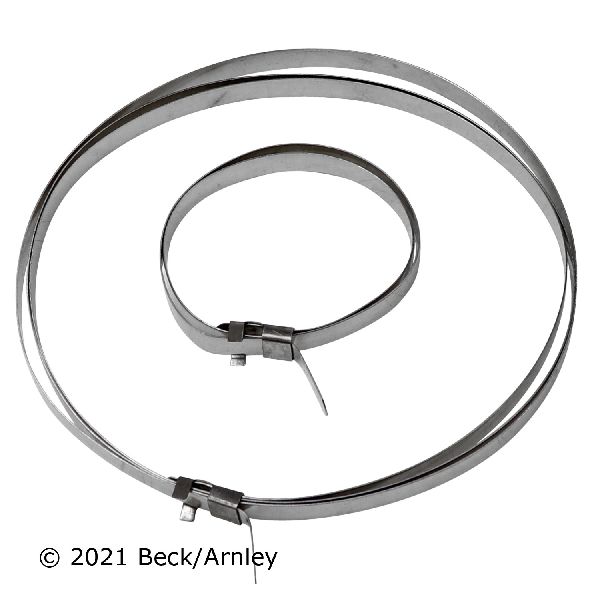

Kit typically includes one neoprene boot and two clamps. Two kits are required to service both sides of the vehicle.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
