BMW X5 (2000-2007) Windshield Washer Pump Replacement Guide
Everything you need to know before replacing the windshield washer pump on your E53 BMW X5.
- The 2000-2007 X5 has separate pumps for the front and rear glass; confirm you are replacing the correct one.
- A common cause of failure is a clogged filter at the pump's base; try cleaning this before replacing the whole unit.
- Always replace the rubber grommet with the pump to prevent leaks.
- Continental (VDO) is the OEM supplier, offering the best quality and fit. Budget brands like URO have a mixed reputation for reliability.
Symptoms of a Failing Windshield Washer Pump
When a washer pump fails on your X5, the signs are usually obvious. Here’s what to look for:

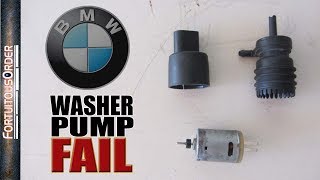

- No Fluid Spray: You pull the stalk, the wipers move, but no fluid comes out. You may or may not hear the pump motor humming. If you hear nothing, it's likely an electrical failure in the pump. 🎬 Watch: See what a failed pump sounds like during testing.
- Weak or Sputtering Spray: The fluid barely reaches the windshield. This can indicate a dying pump motor, but it can also be caused by a clogged washer pump filter. This filter can get blocked by debris or an algae-like substance if plain tap water was used in the reservoir.
- Visible Fluid Leak: You may find a puddle of blue washer fluid under the front driver's side of your X5. This is often caused by a leaking pump grommet or a crack in the pump housing itself. A common failure point is the seal on the motor shaft, which wears out and allows fluid to leak into the electrical motor, causing it to rust and seize.
Choosing the Right Aftermarket Pump
For the E53 X5, you have several aftermarket options that vary in quality and price. The original pump was made by VDO, which is now part of Continental.
Aftermarket Brand Quality Tiers
| Tier | Brands | Quality & Notes |
|---|---|---|
| OEM-Equivalent | Continental | Continental/VDO was the original equipment manufacturer for BMW. Choosing this brand is the closest you can get to the original part's quality and fitment. It is highly recommended for reliability. |
| Standard Aftermarket | Trico | Trico is a well-known brand in wiper and washer systems. Their pumps are designed to be a direct-fit replacement and offer a balance of value and performance for daily driving. |
| Economy | URO Parts | URO Parts is a budget-friendly option. However, owner experiences are mixed. While suitable for non-critical components, forums and reviews suggest a higher failure rate for their electronic and moving parts like pumps. Consider this option if budget is the absolute top priority, but be aware of potential longevity issues. |
Pro Tip: Always replace the small rubber grommet (Part No. 61667006063) that seals the pump to the reservoir. This part is inexpensive and a common source of leaks. Reusing an old, hardened grommet with a new pump is asking for a leak.
Frequently Asked Questions (FAQ)
How many washer pumps does my 2000-2007 X5 have?
Your X5 has at least two pumps: one for the front windshield and one for the rear window. If you have the cold weather package with headlight washers, you have a third, more powerful pump dedicated to the headlights.
Is replacing the washer pump a DIY job?
Yes, this is a very common DIY repair for X5 owners. It requires basic tools, a jack, and jack stands. The process involves removing the driver's side front wheel and pulling back the fender liner 🎬 Watch: How to access and remove the pump from the reservoir. to access the pumps on the reservoir. The pumps themselves just pull out and push in. The estimated time is 1-2 hours.
🎬 See this step-by-step walkthrough for replacing your washer pump.My pump is humming but no fluid comes out. Is it broken?
Not necessarily. First, check that the reservoir is full. If it is, the small filter at the base of the pump is likely clogged. You can try removing the pump and cleaning this filter. If that doesn't work, the pump's internal impeller may be broken, and the pump will need to be replaced.
What is the 'Intensive Wash' system?
Some E53 X5 models came with an 'Intensive Wash' system, identifiable by an 'S' button on the wiper stalk. This system used a separate, smaller reservoir with a concentrated cleaning fluid for tough grime. In the US, this feature was less common and sometimes just programmed to trigger a standard wash cycle automatically with the rain sensor.
Are there any recalls for the washer pump?
No, there are no specific NHTSA safety recalls for the windshield washer pump on the 2000-2007 BMW X5. There have been recalls for the *engine's* electric water pump on other BMW models, which can cause confusion, but these do not apply to the windshield washer system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 67128362154
Fits front or rear windshield washer system. Does not fit headlight washer system. Attaches to the washer fluid reservoir located in the driver-side wheel well.
