2000-2007 Ford Focus Brake Light Switch: A Guide to Symptoms and Replacement
Solve brake light failures, shifting problems, and cruise control issues by understanding this critical part.
- A bad switch causes more than just light problems; it can prevent shifting out of Park and disable cruise control.
- Check for NHTSA Recall 04S12, as your vehicle may be eligible for a free switch and wiring replacement from Ford.
- Replacement is a simple DIY task that takes under 30 minutes and requires no special tools.
- Driving with non-functional brake lights is extremely dangerous and illegal; this repair should not be delayed.
Is a Bad Brake Light Switch Causing Your Focus Problems?
If your 2000-2007 Ford Focus is having strange electrical issues, a faulty brake light switch could be the culprit. This small, inexpensive part can cause a surprising number of problems when it fails. Because it's tied into multiple systems, a bad switch can mimic more serious transmission or computer issues.
Important Recall Information: NHTSA Recall 04S12
Ford issued a safety recall for the brake light switch and its wiring on certain vehicles, including the Focus. The original switches had a high failure rate that could cause the brake lights to stop working or remain stuck on. Before buying a new part, check with a Ford dealer or use the NHTSA website to see if your vehicle was part of this recall and if the repair was ever performed. The recall service replaces the switch and wiring with an updated, more durable design at no cost.
Symptoms of a Failing Brake Light Switch
A bad brake light switch can show itself in several ways. You might experience one or more of these issues:
🎬 Watch a breakdown of common symptoms of a failing switch.- Brake Lights Don't Work: The most dangerous symptom is when your brake lights don't turn on at all. This is a major safety risk and makes your car illegal to drive.
- Brake Lights Stay On: The switch can also fail in the 'on' position, leaving your brake lights illuminated constantly. This will confuse other drivers and can drain your battery overnight.
- Can't Shift Out of Park: If you have an automatic transmission, a bad switch won't tell the car's computer that your foot is on the brake, and the safety interlock will prevent you from shifting out of 'Park'.
- Cruise Control Malfunctions: The cruise control may not turn on, or it might shut off by itself while you're driving. This happens because the faulty switch sends an incorrect signal that the brakes are being applied.
- ABS or Warning Lights: In some cases, a faulty switch can trigger the ABS or other warning lights on your dashboard.
Choosing the Right Aftermarket Switch
While the dealership can provide the original equipment (OEM) part, several quality aftermarket options are available. Given the low cost of this part, choosing a reputable brand is a smart investment to avoid doing the job twice.
- OEM - Motorcraft: This is the original part your Focus was built with. It's the benchmark for fit and quality. After the recall, Ford updated the design, so a new Motorcraft part is the most reliable choice.
- Premium Aftermarket - Standard Ignition, Rostra: Brands like Standard Ignition and Rostra are well-regarded in the industry. Rostra is an ISO-certified manufacturer that also produces original equipment parts for some carmakers. These brands offer a balance of quality and value.
- Standard Aftermarket - Facet: Facet is another established brand that produces a wide range of automotive components and can be a reliable standard replacement option.
Brake Light Switch Replacement Cost
Replacing the brake light switch is an inexpensive repair, especially if you do it yourself. The part itself is affordable, and labor is minimal.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $15 - $40 |
| New Aftermarket | $17.76 - $36.86 |
| Shop Labor | $61 - $90 |
DIY Installation is Easy
Replacing this switch is a great job for beginners. It's located on the brake pedal arm inside the driver's footwell. The process involves removing a lower dash panel for access, unplugging the electrical connector, and twisting the old switch to remove it. The new one twists into place, you reconnect the plug, and the job is done. The entire process usually takes less than 30 minutes.

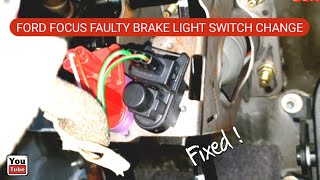

🎬 See how to replace the brake light switch on your Focus.Frequently Asked Questions (FAQ)
Can I drive my Focus with a bad brake light switch?
No. If your brake lights are not working, the vehicle is unsafe and illegal to drive. If the lights are stuck on, it can confuse other drivers and drain your battery. You should get the switch replaced immediately.
Why can't I shift out of Park? Is my transmission broken?
Not necessarily. Before suspecting a major transmission problem, check your brake lights. If they aren't working when you press the pedal, the brake light switch is the most likely cause for being stuck in Park. Your car has a safety feature that locks the shifter unless the brake is applied, and the switch is what sends that signal.
How do I use the shift lock override to move my car?
Most 2000-2007 Focus models have a small slot near the gear shifter. You can pop the cover off this slot, insert your key or a screwdriver, and press down. This manually releases the lock, allowing you to shift into Neutral to move the car for service. This is a temporary fix and does not solve the underlying problem.
🎬 Learn more about diagnosing and fixing a bad brake switch.Do I need to adjust the new brake light switch?
Most modern switches are self-adjusting. However, it's important that the switch is installed correctly. When installing, you typically press the brake pedal down, insert the switch, and twist to lock it. When you release the pedal, the plunger on the switch sets itself to the correct depth. An improperly installed switch can cause the same symptoms as a failed one.
Helpful Videos

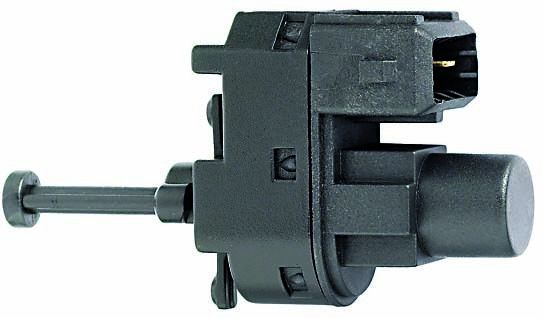

Technical Specifications
OEM Part Numbers: YS4Z-13480-AA 3L8Z-13480-AA
Located on the brake pedal support bracket. Typically a 2- or 4-pin electrical connector. Operates by a plunger that is depressed by the brake pedal arm.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
