Ford Focus EGR (DPFE) Pressure Sensor Guide for 2000-2007 Models
If your 2000-2007 Ford Focus stumbles or hesitates while driving, a failing EGR pressure sensor is a likely cause.
- A stumbling or hesitating engine is the number one sign of a failing DPFE sensor on a 2000-2007 Focus.
- The Check Engine Light with code P0401 is a strong indicator, but you should also inspect the sensor's rubber hoses for cracks.
- This is a very common failure, but it's an easy and inexpensive DIY repair you can do in under an hour.
- For best results, choose an OEM (Motorcraft) or a premium aftermarket brand like Delphi or Standard Ignition.
Is Your Focus Stumbling? Understanding DPFE Sensor Failure
A failing EGR pressure sensor, or DPFE sensor, is a very common issue for the 2000-2007 Ford Focus. These sensors were not built to last forever and can fail in as little as 30,000 miles. The failure is usually a slow process. You might notice engine problems long before the Check Engine Light comes on. When the sensor starts to go bad, it sends incorrect signals to the engine's computer. The computer thinks the EGR valve isn't open enough, so it commands it to open more. This lets too much exhaust gas into the engine, causing a lean fuel mixture and a noticeable stumble or hesitation when you're cruising at a steady speed.
Symptoms of a Bad EGR Pressure Sensor
Watch for these signs of a failing DPFE sensor:
- Engine Stumble or Hesitation: The most common symptom is a feeling of the engine stumbling or losing power erratically while driving at a steady speed.
- Rough Idle: Your car may idle poorly or feel shaky when stopped.
- Check Engine Light: Eventually, the sensor will fail enough to trigger the Check Engine Light. The most common code associated with this part is P0401 - EGR Flow Insufficient Detected.
- Poor Fuel Economy: A faulty sensor can cause the engine to run inefficiently, leading to worse gas mileage.
- Failed Emissions Test: An improperly functioning EGR system will cause your vehicle to fail an emissions inspection.
Don't Ignore a P0401 Code
🎬 Watch: A guide to the three most common P0401 causes.While a bad DPFE sensor is a top cause for a P0401 code, it's not the only one. Clogged EGR passages in the engine or cracked rubber hoses going to the sensor can also cause this code. Always inspect the two small hoses connected to the sensor for cracks or damage, as they are exposed to high heat and can fail.

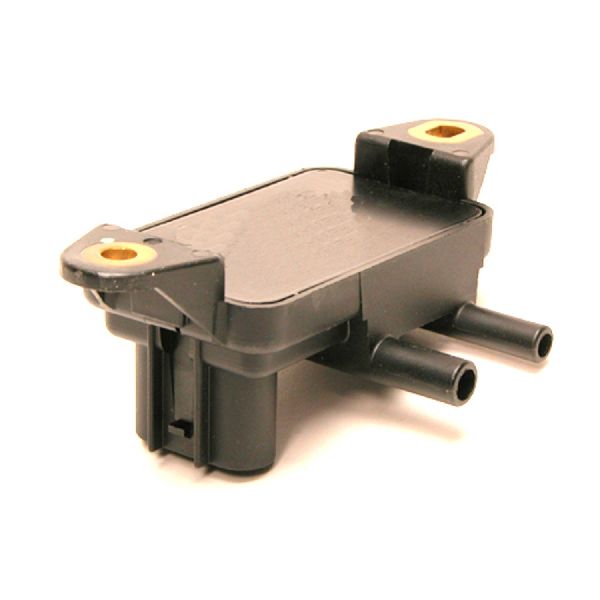

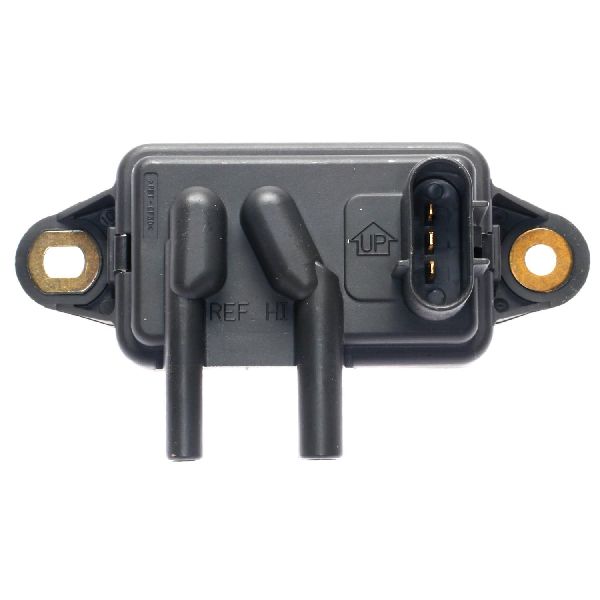

Choosing the Right Aftermarket DPFE Sensor
Since this is a known failure point, choosing a quality replacement part is important. You have options between the original Ford part (Motorcraft) and several aftermarket brands.
- OEM (Motorcraft): Ford's own brand, Motorcraft, is the original part. It is designed to meet all of Ford's specifications for performance and durability. For a critical sensor like this, the OEM part is always a safe bet.
- Premium Aftermarket (Delphi, Standard Ignition): Brands like Delphi and Standard Motor Products are well-regarded in the industry. Delphi is an Original Equipment supplier for many car manufacturers and is known for quality parts. These brands offer a balance of quality and price, often meeting or exceeding OEM standards.

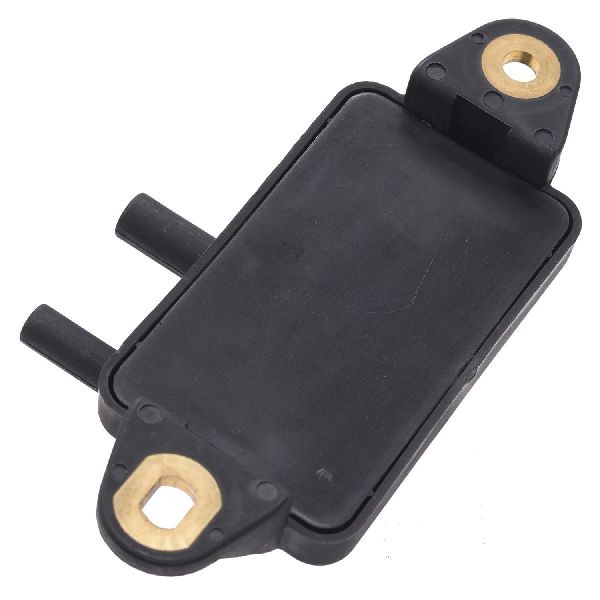

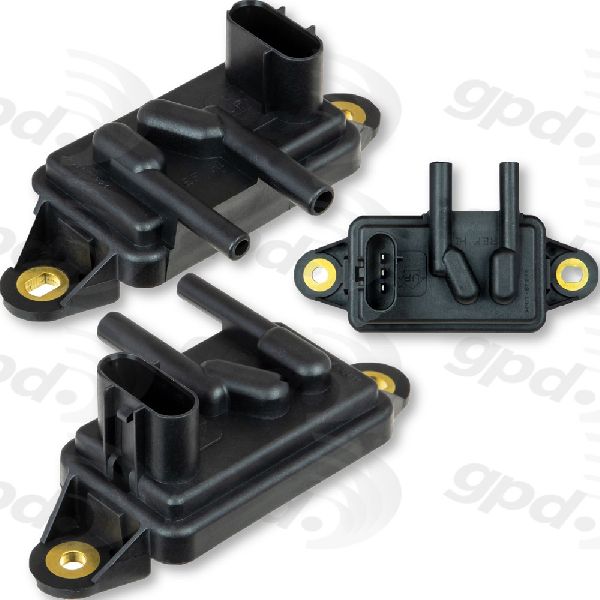

- Standard Aftermarket (Walker Products, Global Parts, Holstein): These brands provide a more budget-friendly option. However, some user reviews suggest that brands like Walker may have inconsistent quality compared to premium or OEM parts. They can be a good choice if cost is the primary concern, but may not have the same longevity.
How to Replace the EGR Pressure Sensor
Replacing the DPFE sensor on a 2000-2007 Focus is a simple job that most DIYers can do in under an hour.
- Locate the Sensor: It's a small black box on the firewall, near the top of the engine, with two rubber hoses attached to the bottom and an electrical connector.
- Access the Sensor: You will likely need to remove the plastic air intake tube that runs from the air filter box to the engine. This usually just requires loosening a couple of hose clamps with a screwdriver.
- Disconnect: Unplug the electrical connector. Be gentle with the plastic clip. Then, carefully twist and pull the sensor upwards to detach it from the two rubber hoses. The hoses can be brittle, so be careful not to break them.
- Install the New Sensor: Lightly lubricating the ports on the new sensor can help it slide onto the hoses more easily. Push it firmly into place, reconnect the electrical connector, and reinstall the air intake tube. 🎬 Watch: A step-by-step video on replacing the EGR pressure sensor.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Motorcraft) Part | $70 - $110 |
| New Aftermarket Part | $49 - $97 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $120 - $210 |
Frequently Asked Questions
What is a DPFE sensor?
DPFE stands for Differential Pressure Feedback EGR. It's the specific name Ford uses for the EGR Pressure Sensor. It measures pressure differences to tell the car's computer how much exhaust is being recirculated.
Can I clean my old EGR pressure sensor?
No, cleaning the sensor is not an effective repair. The failure is typically internal to the sensor's electronics. The issue is not usually caused by carbon buildup on the sensor itself, but rather a failure of the internal components. Replacement is the only reliable solution.
Why did my Check Engine Light turn on with code P0401?
P0401 means "EGR Flow Insufficient." This is the most common code for a bad DPFE sensor on a Ford Focus. It means the computer is not seeing the expected change in pressure when it commands the EGR valve to open. This can be the sensor itself, clogged EGR passages, or cracked hoses connected to the sensor.
Is there a recall on the EGR pressure sensor for my Focus?
No, there are no active recalls or specific Technical Service Bulletins (TSBs) from the NHTSA for the EGR pressure sensor on the 2000-2007 Ford Focus. The problem is a well-known common failure but was never subject to a recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: DPFE15
This sensor is also known as a DPFE (Differential Pressure Feedback EGR) sensor. It uses a 3-wire connector and has two ports on the bottom that connect to the EGR tube via rubber hoses.
